Please include the following statement when referencing the CPTAC Assay Portal
We would like to acknowledge the National Cancer Institute’s Clinical Proteomic Tumor Analysis Consortium (CPTAC) Assay Portal (assays.cancer.gov) for developing assays and establishing criteria for the assays described in this publication.

PDIA6

Previous Assay Next Assay
Available Assays

Overview Data source: UniProt

Official Gene Symbol Other Aliases
PDIA6 ERP5, P5, TXNDC7
Sequence Length (AA) Molecular Weight (Da)
440 48121
Protein Name
Protein disulfide-isomerase A6
Sources
UniProt
PhosphoSitePlus ®
GeneCards 		Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MALLVLGLVS CTFFLAVNGL YSSSDDVIEL TPSNFNREVI QSDSLWLVEF
60 70 80 90 100
YAPWCGHCQR LTPEWKKAAT ALKDVVKVGA VDADKHHSLG GQYGVQGFPT
110 120 130 140 150
IKIFGSNKNR PEDYQGGRTG EAIVDAALSA LRQLVKDRLG GRSGGYSSGK
160 170 180 190 200
QGRSDSSSKK DVIELTDDSF DKNVLDSEDV WMVEFYAPWC GHCKNLEPEW
210 220 230 240 250
AAAASEVKEQ TKGKVKLAAV DATVNQVLAS RYGIRGFPTI KIFQKGESPV
260 270 280 290 300
DYDGGRTRSD IVSRALDLFS DNAPPPELLE IINEDIAKRT CEEHQLCVVA
310 320 330 340 350
VLPHILDTGA AGRNSYLEVL LKLADKYKKK MWGWLWTEAG AQSELETALG
360 370 380 390 400
IGGFGYPAMA AINARKMKFA LLKGSFSEQG INEFLRELSF GRGSTAPVGG
410 420 430 440
GAFPTIVERE PWDGRDGELP VEDDIDLSDV ELDDLGKDEL

Data source: UniProt

Protein Map Collapse protein map

Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt


Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for CPTAC-250 Collapse assay details

Data source: Panorama

Official Gene Symbol
PDIA6
Peptide Sequence
GSTAPVGGGAFPTIVER
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
393
Peptide End
409
CPTAC ID
CPTAC-250
Peptide Molecular Mass
1,614.8366
Species
Homo sapiens (Human)
Assay Type
Direct MRM
Matrix
cell line lysate pool
Submitting Laboratory
Fred Hutchinson Cancer Research Center
Submitting Lab PI
Amanda Paulovich

Publication

View Details (opens in a new window)

Demonstrating the feasibility of large-scale development of standardized assays to quantify human proteins. Kennedy JJ, Abbatiello SE, Kim K, Yan P, Whiteaker JR, Lin C, Kim JS, Zhang Y, Wang X, Ivey RG, Zhao L, Min H, Lee Y, Yu MH, Yang EG, Lee C, Wang P, Rodriguez H, Kim Y, Carr SA, Paulovich AG. Nat Methods. 2014 Feb;11(2):149-55. doi: 10.1038/nmeth.2763. Epub 2013 Dec 8. PMID: 24317253

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
5500 QTRAP (ABSCIEX)
Internal Standard
peptide
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C and 15N at C-terminus R
LC
nanoLC-Ultra 2D, cHiPLC-nanoflex (Eksigent)
Column Packing
ChromXP C18-CL, 3 um, 120A
Column Dimensions
150 x 0.075 mm
Flow Rate
500 nL / min

Chromatograms

Data source: Panorama

view larger image
view larger image
view larger image

Response Curves

Data source: Panorama

view larger image
view larger image
view larger image

Retrieving Data

Loader

Repeatability

Data source: Panorama

view larger image
  Average intra-assay CV
(within day CV)		 Average inter-assay CV
(between day CV)		 Total CV
equation		 n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y11 (1+) 8.6 7.4 9.4 21.1 17.6 20.5 22.8 19.1 22.6 15 25 15
y10 (1+) 14.9 7.6 8.5 23.7 13.7 17.9 28 15.7 19.8 15 25 15
y7 (1+) 7.6 7.2 12.8 19.8 17.2 20.6 21.2 18.6 24.3 15 25 15
sum 7.9 6.2 8.9 19.9 16.3 19.6 21.4 17.4 21.5 15 25 15

Additional Resources and Comments

Resources
Download SOPs
View Peptide in Panorama
View Protein in Panorama
Comments

Assay Details for non-CPTAC-6114 Collapse assay details

Data source: Panorama

Official Gene Symbol
PDIA6
Peptide Sequence
GSTAPVGGGAFPTIVER
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
393
Peptide End
409
CPTAC ID
non-CPTAC-6114
Peptide Molecular Mass
1,614.8366
Species
Homo sapiens (Human)
Assay Type
Direct MRM
Matrix
Bovine Serum Albumin
Submitting Laboratory
McGill University
Submitting Lab PI
Christoph H. Borchers, Gerald Batist

Publication

View Details (opens in a new window)

mTORC1-driven protein translation correlates with clinical benefit of capivasertib within a genetically preselected cohort of PIK3CA-altered tumours. Constance A Sobsey, Bjoern C Froehlich, Georgia Mitsa, Sahar Ibrahim, Robert Popp, Rene P Zahedi, Elza C de Bruin, Christoph H Borchers, Gerald Batist

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
Agilent 6495B QQQ-MS
Internal Standard
Standard Isotope labeled internal standard peptides with 13Cx, 15Ny (R+10 or K+8)
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C and 15N at C-terminus R
LC
Infinity 1290
Column Packing
commercial (Agilent ZORBAX Eclipse Plus C18)
Column Dimensions
4.6 mm × 150 mm, (5 µm)
Flow Rate
0.4 mL/min

Chromatograms

Data source: Panorama

view larger image
view larger image
view larger image

Response Curves

Data source: Panorama

view larger image
view larger image
view larger image

Retrieving Data

Loader

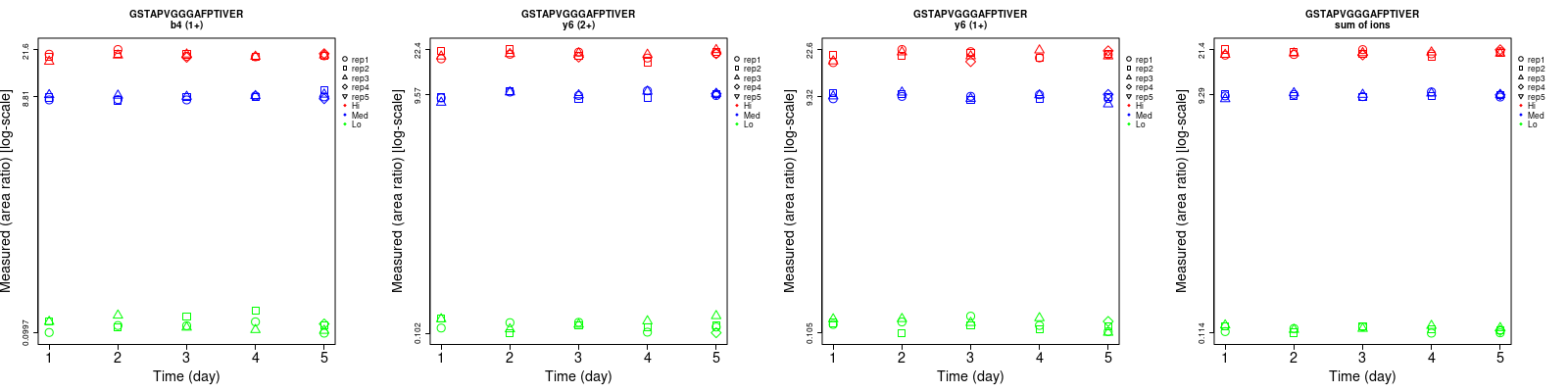

Repeatability

Data source: Panorama

view larger image
  Average intra-assay CV
(within day CV)		 Average inter-assay CV
(between day CV)		 Total CV
equation		 n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
b4 (1+) 12.4 4.4 3.6 11.6 4.3 4.6 17 6.2 5.8 16 16 17
y5 (1+) 13.5 6.8 9.2 12.8 6.5 11.1 18.6 9.4 14.4 16 16 17
y6 (1+) 9.9 4.9 7.1 9.6 5.7 8.9 13.8 7.5 11.4 16 16 17
y13 (2+) 5.4 6 6.2 4.4 6.4 7.7 7 8.8 9.9 16 16 17
y6 (2+) 9.4 3.8 5.7 8.9 6.5 6 12.9 7.5 8.3 16 16 17
sum 4.6 3.2 3.8 4.6 3.5 4.3 6.5 4.7 5.7 16 16 17

Additional Resources and Comments

Resources
Download SOPs
View Peptide in Panorama
View Protein in Panorama
Comments
