Please include the following statement when referencing the CPTAC Assay Portal
We would like to acknowledge the National Cancer Institute’s Clinical Proteomic Tumor Analysis Consortium (CPTAC) Assay Portal (assays.cancer.gov) for developing assays and establishing criteria for the assays described in this publication.

PSMD2

Previous Assay Next Assay
Available Assays

Overview Data source: UniProt

Official Gene Symbol Other Aliases
PSMD2 TRAP2
Sequence Length (AA) Molecular Weight (Da)
908 100200
Protein Name
26S proteasome non-ATPase regulatory subunit 2
Sources
UniProt
PhosphoSitePlus ®
GeneCards 		Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MEEGGRDKAP VQPQQSPAAA PGGTDEKPSG KERRDAGDKD KEQELSEEDK
60 70 80 90 100
QLQDELEMLV ERLGEKDTSL YRPALEELRR QIRSSTTSMT SVPKPLKFLR
110 120 130 140 150
PHYGKLKEIY ENMAPGENKR FAADIISVLA MTMSGERECL KYRLVGSQEE
160 170 180 190 200
LASWGHEYVR HLAGEVAKEW QELDDAEKVQ REPLLTLVKE IVPYNMAHNA
210 220 230 240 250
EHEACDLLME IEQVDMLEKD IDENAYAKVC LYLTSCVNYV PEPENSALLR
260 270 280 290 300
CALGVFRKFS RFPEALRLAL MLNDMELVED IFTSCKDVVV QKQMAFMLGR
310 320 330 340 350
HGVFLELSED VEEYEDLTEI MSNVQLNSNF LALARELDIM EPKVPDDIYK
360 370 380 390 400
THLENNRFGG SGSQVDSARM NLASSFVNGF VNAAFGQDKL LTDDGNKWLY
410 420 430 440 450
KNKDHGMLSA AASLGMILLW DVDGGLTQID KYLYSSEDYI KSGALLACGI
460 470 480 490 500
VNSGVRNECD PALALLSDYV LHNSNTMRLG SIFGLGLAYA GSNREDVLTL
510 520 530 540 550
LLPVMGDSKS SMEVAGVTAL ACGMIAVGSC NGDVTSTILQ TIMEKSETEL
560 570 580 590 600
KDTYARWLPL GLGLNHLGKG EAIEAILAAL EVVSEPFRSF ANTLVDVCAY
610 620 630 640 650
AGSGNVLKVQ QLLHICSEHF DSKEKEEDKD KKEKKDKDKK EAPADMGAHQ
660 670 680 690 700
GVAVLGIALI AMGEEIGAEM ALRTFGHLLR YGEPTLRRAV PLALALISVS
710 720 730 740 750
NPRLNILDTL SKFSHDADPE VSYNSIFAMG MVGSGTNNAR LAAMLRQLAQ
760 770 780 790 800
YHAKDPNNLF MVRLAQGLTH LGKGTLTLCP YHSDRQLMSQ VAVAGLLTVL
810 820 830 840 850
VSFLDVRNII LGKSHYVLYG LVAAMQPRML VTFDEELRPL PVSVRVGQAV
860 870 880 890 900
DVVGQAGKPK TITGFQTHTT PVLLAHGERA ELATEEFLPV TPILEGFVIL
908
RKNPNYDL

Data source: UniProt

Protein Map Collapse protein map

Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt


Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for CPTAC-261 Collapse assay details

Data source: Panorama

Official Gene Symbol
PSMD2
Peptide Sequence
YLYSSEDYIK
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
432
Peptide End
441
CPTAC ID
CPTAC-261
Peptide Molecular Mass
1,279.5972
Species
Homo sapiens (Human)
Assay Type
Direct MRM
Matrix
cell line lysate pool
Submitting Laboratory
Fred Hutchinson Cancer Research Center
Submitting Lab PI
Amanda Paulovich

Publication

View Details (opens in a new window)

Demonstrating the feasibility of large-scale development of standardized assays to quantify human proteins. Kennedy JJ, Abbatiello SE, Kim K, Yan P, Whiteaker JR, Lin C, Kim JS, Zhang Y, Wang X, Ivey RG, Zhao L, Min H, Lee Y, Yu MH, Yang EG, Lee C, Wang P, Rodriguez H, Kim Y, Carr SA, Paulovich AG. Nat Methods. 2014 Feb;11(2):149-55. doi: 10.1038/nmeth.2763. Epub 2013 Dec 8. PMID: 24317253

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
5500 QTRAP (ABSCIEX)
Internal Standard
peptide
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C,15N
LC
nanoLC-Ultra 2D, cHiPLC-nanoflex (Eksigent)
Column Packing
ChromXP C18-CL, 3 um, 120A
Column Dimensions
150 x 0.075 mm
Flow Rate
500 nL / min

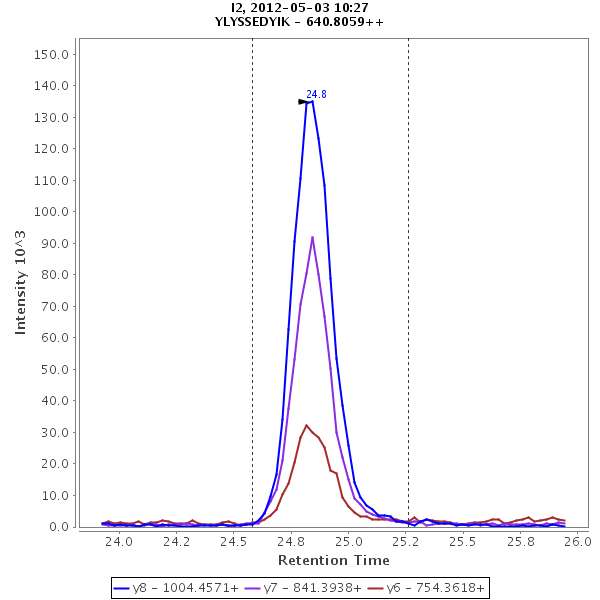

Chromatograms

Data source: Panorama

view larger image
view larger image
view larger image

Response Curves

Data source: Panorama

view larger image
view larger image
view larger image

Retrieving Data

Loader

Repeatability

Data source: Panorama

view larger image
  Average intra-assay CV
(within day CV)		 Average inter-assay CV
(between day CV)		 Total CV
equation		 n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y8 (1+) 8.5 7 7.7 16 14.6 15.6 18.1 16.2 17.4 15 25 15
y7 (1+) 12.6 8.2 7.6 14.4 12.5 11.7 19.1 14.9 14 15 25 15
y6 (1+) 18.8 9.2 10.5 18.2 15.7 13 26.2 18.2 16.7 15 25 15
sum 6.9 6.5 6.4 13.3 13.3 13.3 15 14.8 14.8 15 25 15

Additional Resources and Comments

Resources
Download SOPs
View Peptide in Panorama
View Protein in Panorama
Comments
