Please include the following statement when referencing the CPTAC Assay Portal
We would like to acknowledge the National Cancer Institute’s Clinical Proteomic Tumor Analysis Consortium (CPTAC) Assay Portal (assays.cancer.gov) for developing assays and establishing criteria for the assays described in this publication.

Overview Data source: UniProt

Official Gene Symbol Other Aliases
SDHA SDH2, SDHF
Sequence Length (AA) Molecular Weight (Da)
664 72692
Protein Name
Succinate dehydrogenase [ubiquinone] flavoprotein subunit, mitochondrial
Sources
UniProt
PhosphoSitePlus ®
GeneCards
Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MSGVRGLSRL LSARRLALAK AWPTVLQTGT RGFHFTVDGN KRASAKVSDS
60 70 80 90 100
ISAQYPVVDH EFDAVVVGAG GAGLRAAFGL SEAGFNTACV TKLFPTRSHT
110 120 130 140 150
VAAQGGINAA LGNMEEDNWR WHFYDTVKGS DWLGDQDAIH YMTEQAPAAV
160 170 180 190 200
VELENYGMPF SRTEDGKIYQ RAFGGQSLKF GKGGQAHRCC CVADRTGHSL
210 220 230 240 250
LHTLYGRSLR YDTSYFVEYF ALDLLMENGE CRGVIALCIE DGSIHRIRAK
260 270 280 290 300
NTVVATGGYG RTYFSCTSAH TSTGDGTAMI TRAGLPCQDL EFVQFHPTGI
310 320 330 340 350
YGAGCLITEG CRGEGGILIN SQGERFMERY APVAKDLASR DVVSRSMTLE
360 370 380 390 400
IREGRGCGPE KDHVYLQLHH LPPEQLATRL PGISETAMIF AGVDVTKEPI
410 420 430 440 450
PVLPTVHYNM GGIPTNYKGQ VLRHVNGQDQ IVPGLYACGE AACASVHGAN
460 470 480 490 500
RLGANSLLDL VVFGRACALS IEESCRPGDK VPPIKPNAGE ESVMNLDKLR
510 520 530 540 550
FADGSIRTSE LRLSMQKSMQ NHAAVFRVGS VLQEGCGKIS KLYGDLKHLK
560 570 580 590 600
TFDRGMVWNT DLVETLELQN LMLCALQTIY GAEARKESRG AHAREDYKVR
610 620 630 640 650
IDEYDYSKPI QGQQKKPFEE HWRKHTLSYV DVGTGKVTLE YRPVIDKTLN
660 664
EADCATVPPA IRSY

Data source: UniProt


Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt



Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for CPTAC-440 Collapse assay details

Data source: Panorama

Official Gene Symbol
SDHA
Peptide Modified Sequence
AAFGLSEAGFNTAC[+57.0]VTK
Modification Type
Carbamidomethyl Cysteine
Protein - Site of Modification
89
Peptide - Site of Modification
14
Peptide Start
76
Peptide End
92
CPTAC ID
CPTAC-440
Peptide Molecular Mass
1,742.8298
Species
Homo sapiens (Human)
Assay Type
Direct MRM
Matrix
cell line lysate pool
Submitting Laboratory
Broad Institute and FHCRC
Submitting Lab PI
Steve Carr

Publication

View Details (opens in a new window)

Demonstrating the feasibility of large-scale development of standardized assays to quantify human proteins. Kennedy JJ, Abbatiello SE, Kim K, Yan P, Whiteaker JR, Lin C, Kim JS, Zhang Y, Wang X, Ivey RG, Zhao L, Min H, Lee Y, Yu MH, Yang EG, Lee C, Wang P, Rodriguez H, Kim Y, Carr SA, Paulovich AG. Nat Methods. 2014 Feb;11(2):149-55. doi: 10.1038/nmeth.2763. Epub 2013 Dec 8. PMID: 24317253


Response curves acquired at Broad Institute. Repeatability data acquired at Fred Hutchinson Cancer Research Center.


Response curves acquired at Broad Institute. Repeatability data acquired at Fred Hutchinson Cancer Research Center.


Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
5500 QTRAP (ABSCIEX)
Internal Standard
peptide
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C,15N
LC
nanoLC-Ultra 2D, cHiPLC-nanoflex (Eksigent)
Column Packing
ChromXP C18-CL, 3 um, 120A
Column Dimensions
150 x 0.075 mm
Flow Rate
500 nL / min

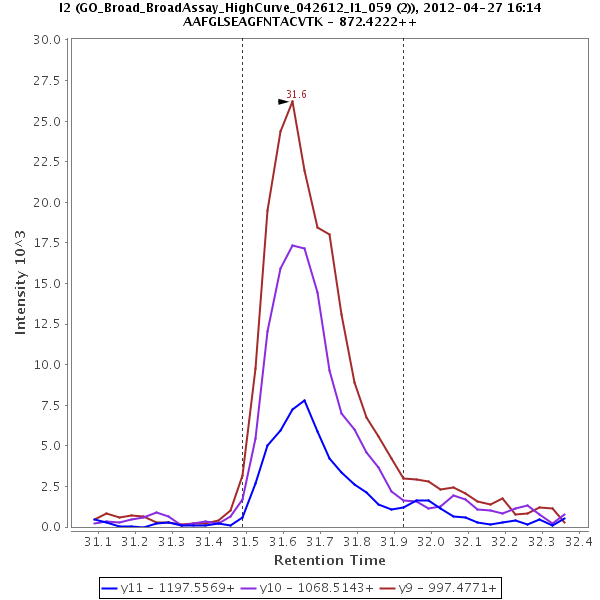

Chromatograms

Data source: Panorama

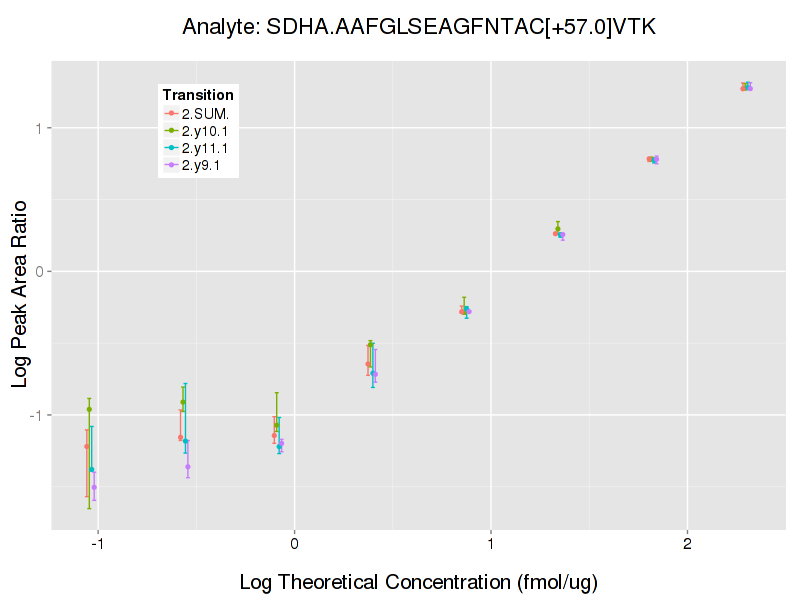

Response Curves

Data source: Panorama

Retrieving Data

Loader

Repeatability

Data source: Panorama

  Average intra-assay CV
(within day CV)
Average inter-assay CV
(between day CV)
Total CV
equation
n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y11 (1+) 21.6 11.8 5.8 21 10 8.4 30.1 15.5 10.2 15 25 15
y10 (1+) 10.3 9.8 10.2 17.1 10.8 15.8 20 14.6 18.8 15 25 15
y9 (1+) 14.2 13 9.5 15.8 12.7 14.8 21.2 18.2 17.6 15 25 15
sum 10.1 9.4 3.7 14 8.7 11 17.3 12.8 11.6 15 25 15


Additional Resources and Comments
