Overview Data source: UniProt

Official Gene Symbol Other Aliases
EPS15 AF1P
Sequence Length (AA) Molecular Weight (Da)
896 98656
Protein Name
Epidermal growth factor receptor substrate 15
Sources
UniProt
PhosphoSitePlus ®
GeneCards
Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MAAAAQLSLT QLSSGNPVYE KYYRQVDTGN TGRVLASDAA AFLKKSGLPD
60 70 80 90 100
LILGKIWDLA DTDGKGILNK QEFFVALRLV ACAQNGLEVS LSSLNLAVPP
110 120 130 140 150
PRFHDTSSPL LISGTSAAEL PWAVKPEDKA KYDAIFDSLS PVNGFLSGDK
160 170 180 190 200
VKPVLLNSKL PVDILGRVWE LSDIDHDGML DRDEFAVAMF LVYCALEKEP
210 220 230 240 250
VPMSLPPALV PPSKRKTWVV SPAEKAKYDE IFLKTDKDMD GFVSGLEVRE
260 270 280 290 300
IFLKTGLPST LLAHIWSLCD TKDCGKLSKD QFALAFHLIS QKLIKGIDPP
310 320 330 340 350
HVLTPEMIPP SDRASLQKNI IGSSPVADFS AIKELDTLNN EIVDLQREKN
360 370 380 390 400
NVEQDLKEKE DTIKQRTSEV QDLQDEVQRE NTNLQKLQAQ KQQVQELLDE
410 420 430 440 450
LDEQKAQLEE QLKEVRKKCA EEAQLISSLK AELTSQESQI STYEEELAKA
460 470 480 490 500
REELSRLQQE TAELEESVES GKAQLEPLQQ HLQDSQQEIS SMQMKLMEMK
510 520 530 540 550
DLENHNSQLN WCSSPHSILV NGATDYCSLS TSSSETANLN EHVEGQSNLE
560 570 580 590 600
SEPIHQESPA RSSPELLPSG VTDENEVTTA VTEKVCSELD NNRHSKEEDP
610 620 630 640 650
FNVDSSSLTG PVADTNLDFF QSDPFVGSDP FKDDPFGKID PFGGDPFKGS
660 670 680 690 700
DPFASDCFFR QSTDPFATSS TDPFSAANNS SITSVETLKH NDPFAPGGTV
710 720 730 740 750
VAASDSATDP FASVFGNESF GGGFADFSTL SKVNNEDPFR SATSSSVSNV
760 770 780 790 800
VITKNVFEET SVKSEDEPPA LPPKIGTPTR PCPLPPGKRS INKLDSPDPF
810 820 830 840 850
KLNDPFQPFP GNDSPKEKDP EIFCDPFTSA TTTTNKEADP SNFANFSAYP
860 870 880 890 896
SEEDMIEWAK RESEREEEQR LARLNQQEQE DLELAIALSK SEISEA

Data source: UniProt


Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt



Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for CPTAC-966 Collapse assay details

Data source: Panorama

Official Gene Symbol
EPS15
Peptide Modified Sequence
IGT[+80.0]PTRPC[+57.0]PLPPGK
Modification Type
Phospho (ST), Carbamidomethyl Cysteine
Protein - Site of Modification
777, 782
Peptide - Site of Modification
3, 8
Peptide Start
775
Peptide End
788
CPTAC ID
CPTAC-966
Peptide Molecular Mass
1,569.7739
Species
Homo sapiens (Human)
Assay Type
Enrichment MRM
Enrichment Method
IMAC
Matrix
cell lysate
Submitting Laboratory
Fred Hutchinson Cancer Research Center
Submitting Lab PI
Amanda Paulovich

Publication

View Details (opens in a new window)

Kennedy JJ, Yan P, Zhao L, Ivey RG, Voytovich U, Moore HD, Lin C, Pogosova-Agadjanyan EL, Stirewalt DL, Reding KW, Whiteaker JR, Paulovich AG. Immobilized metal affinity chromatography coupled to multiple reaction monitoring enables reproducible quantification of phospho-signaling. Molecular and Cellular Proteomics. mcp.O115.054940


Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
QTrap 5500 (Sciex)
Internal Standard
synthetic peptide
Peptide Standard Purity
Crude
Peptide Standard Label Type
13C and 15N at C-terminus K
LC
nanoLC-2D (Eksigent)
Column Packing
ChromXP C18-CL, 3 µm, 120 Å
Column Dimensions
75 µm x 15cm
Flow Rate
300 nL/min

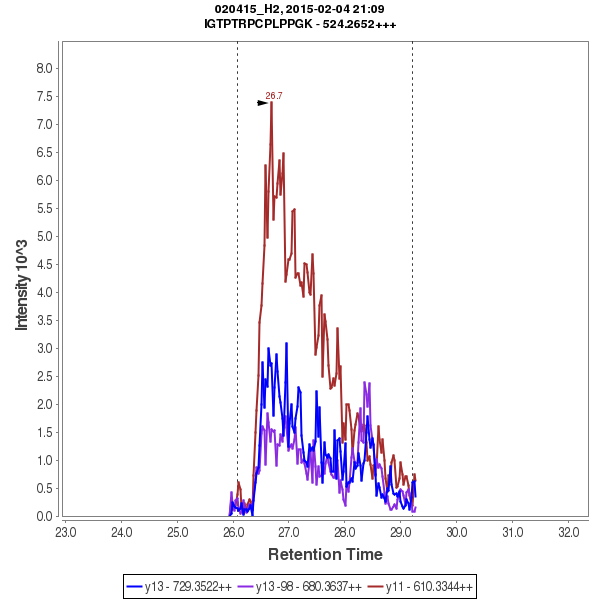

Chromatograms

Data source: Panorama

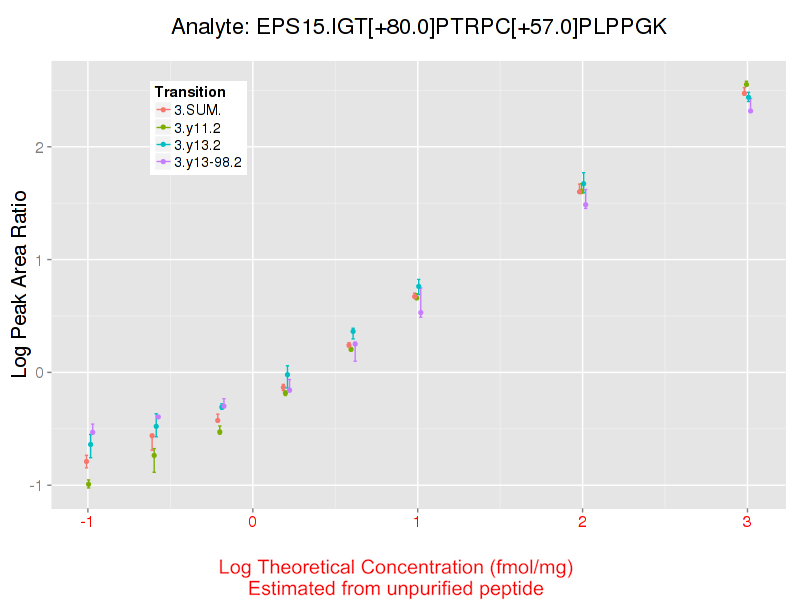

Response Curves

Data source: Panorama

Retrieving Data

Loader

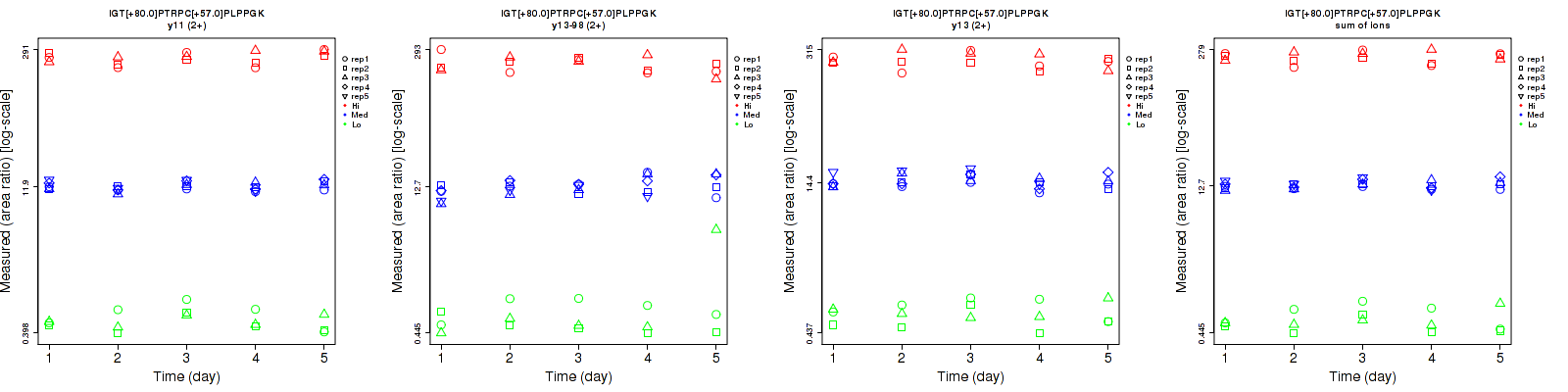

Repeatability

Data source: Panorama

  Average intra-assay CV
(within day CV)
Average inter-assay CV
(between day CV)
Total CV
equation
n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y11 (2+) 21.5 8.8 11.9 22.1 9.1 13.7 30.8 12.7 18.1 15 24 15
y13-98 (2+) 50.9 17.7 17.9 60.5 18.3 19.3 79.1 25.5 26.3 15 24 15
y13 (2+) 29.8 14.8 16.9 25.9 13.1 16.3 39.5 19.8 23.5 15 24 15
sum 25.8 8.7 12.3 23.6 8 12.1 35 11.8 17.3 15 24 15


Additional Resources and Comments


Assay Details for CPTAC-967 Collapse assay details

Data source: Panorama

Official Gene Symbol
EPS15
Peptide Modified Sequence
LDS[+80.0]PDPFK
Modification Type
Phospho (ST)
Protein - Site of Modification
796
Peptide - Site of Modification
3
Peptide Start
794
Peptide End
801
CPTAC ID
CPTAC-967
Peptide Molecular Mass
997.4158
Species
Homo sapiens (Human)
Assay Type
Enrichment MRM
Enrichment Method
IMAC
Matrix
cell lysate
Submitting Laboratory
Fred Hutchinson Cancer Research Center
Submitting Lab PI
Amanda Paulovich

Publication

View Details (opens in a new window)

Kennedy JJ, Yan P, Zhao L, Ivey RG, Voytovich U, Moore HD, Lin C, Pogosova-Agadjanyan EL, Stirewalt DL, Reding KW, Whiteaker JR, Paulovich AG. Immobilized metal affinity chromatography coupled to multiple reaction monitoring enables reproducible quantification of phospho-signaling. Molecular and Cellular Proteomics. mcp.O115.054940


Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
QTrap 5500 (Sciex)
Internal Standard
synthetic peptide
Peptide Standard Purity
Crude
Peptide Standard Label Type
13C and 15N at C-terminus K
LC
nanoLC-2D (Eksigent)
Column Packing
ChromXP C18-CL, 3 µm, 120 Å
Column Dimensions
75 µm x 15cm
Flow Rate
300 nL/min

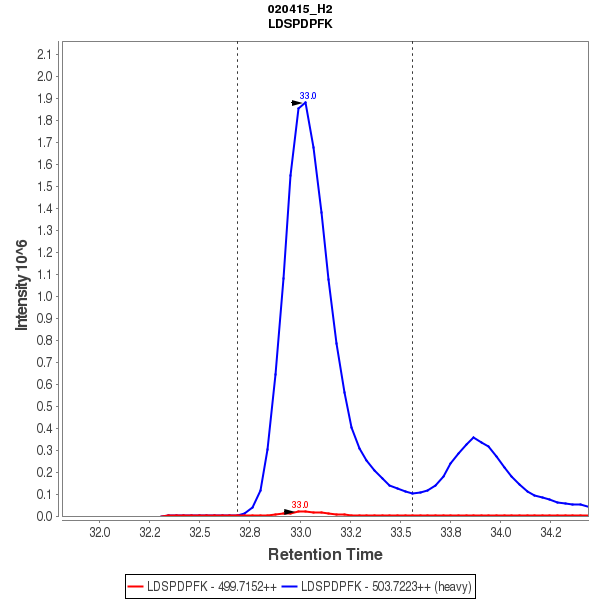

Chromatograms

Data source: Panorama


Response Curves

Data source: Panorama

Retrieving Data

Loader

Repeatability

Data source: Panorama

  Average intra-assay CV
(within day CV)
Average inter-assay CV
(between day CV)
Total CV
equation
n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
b5 (1+) 11.1 11.9 12.8 34.6 16.2 16.4 36.3 20.1 20.8 15 24 15
y5 (1+) 13.2 10.9 9.8 27.5 14.7 14.8 30.5 18.3 17.8 15 24 15
y7 (1+) 11.8 11.9 12.2 27.7 14.8 14.6 30.1 19 19 15 24 15
sum 11.3 9.7 9.2 28.2 14.2 13.2 30.4 17.2 16.1 15 24 15


Additional Resources and Comments
