PWP1

Previous Assay Next Assay
Available Assays

Overview Data source: UniProt

Official Gene Symbol Other Aliases
PWP1 N/A
Sequence Length (AA) Molecular Weight (Da)
501 55828
Protein Name
Periodic tryptophan protein 1 homolog
Sources
UniProt
PhosphoSitePlus ®
GeneCards 		Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MNRSRQVTCV AWVRCGVAKE TPDKVELSKE EVKRLIAEAK EKLQEEGGGS
60 70 80 90 100
DEEETGSPSE DGMQSARTQA RPREPLEDGD PEDDRTLDDD ELAEYDLDKY
110 120 130 140 150
DEEGDPDAET LGESLLGLTV YGSNDQDPYV TLKDTEQYER EDFLIKPSDN
160 170 180 190 200
LIVCGRAEQD QCNLEVHVYN QEEDSFYVHH DILLSAYPLS VEWLNFDPSP
210 220 230 240 250
DDSTGNYIAV GNMTPVIEVW DLDIVDSLEP VFTLGSKLSK KKKKKGKKSS
260 270 280 290 300
SAEGHTDAVL DLSWNKLIRN VLASASADNT VILWDMSLGK PAASLAVHTD
310 320 330 340 350
KVQTLQFHPF EAQTLISGSY DKSVALYDCR SPDESHRMWR FSGQIERVTW
360 370 380 390 400
NHFSPCHFLA STDDGFVYNL DARSDKPIFT LNAHNDEISG LDLSSQIKGC
410 420 430 440 450
LVTASADKYV KIWDILGDRP SLVHSRDMKM GVLFCSSCCP DLPFIYAFGG
460 470 480 490 500
QKEGLRVWDI STVSSVNEAF GRRERLVLGS ARNSSISGPF GSRSSDTPME
501
S

Data source: UniProt

Protein Map Collapse protein map

Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt


Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for CPTAC-995 Collapse assay details

Data source: Panorama

Official Gene Symbol
PWP1
Peptide Modified Sequence
NSS[+80.0]ISGPFGSR
Modification Type
Phospho (ST)
Protein - Site of Modification
485
Peptide - Site of Modification
3
Peptide Start
483
Peptide End
493
CPTAC ID
CPTAC-995
Peptide Molecular Mass
1,187.4972
Species
Homo sapiens (Human)
Assay Type
Enrichment MRM
Enrichment Method
IMAC
Matrix
cell lysate
Submitting Laboratory
Fred Hutchinson Cancer Research Center
Submitting Lab PI
Amanda Paulovich

Publication

View Details (opens in a new window)

Kennedy JJ, Yan P, Zhao L, Ivey RG, Voytovich U, Moore HD, Lin C, Pogosova-Agadjanyan EL, Stirewalt DL, Reding KW, Whiteaker JR, Paulovich AG. Immobilized metal affinity chromatography coupled to multiple reaction monitoring enables reproducible quantification of phospho-signaling. Molecular and Cellular Proteomics. mcp.O115.054940

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
QTrap 5500 (Sciex)
Internal Standard
synthetic peptide
Peptide Standard Purity
Crude
Peptide Standard Label Type
13C and 15N at C-terminus R
LC
nanoLC-2D (Eksigent)
Column Packing
ChromXP C18-CL, 3 µm, 120 Å
Column Dimensions
75 µm x 15cm
Flow Rate
300 nL/min

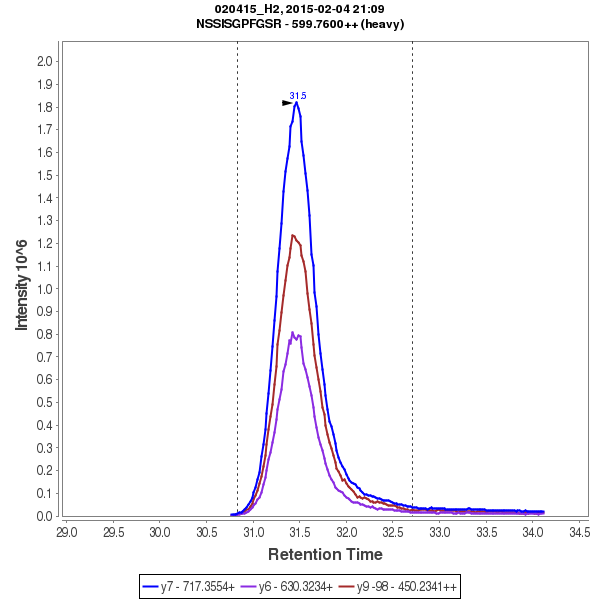

Chromatograms

Data source: Panorama

view larger image
view larger image
view larger image

Response Curves

Data source: Panorama

view larger image
view larger image
view larger image

Retrieving Data

Loader

Repeatability

Data source: Panorama

view larger image
  Average intra-assay CV
(within day CV)		 Average inter-assay CV
(between day CV)		 Total CV
equation		 n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y9-98 (2+) 11.7 14.4 8.6 24.7 16.6 10.7 27.3 22 13.7 12 22 14
y6 (1+) 12.1 12.2 20 43.7 40.4 47.4 45.3 42.2 51.4 12 22 14
y7 (1+) 7.4 11.1 14.2 19.7 9.5 15 21 14.6 20.7 12 22 14
sum 5.9 9.5 10.9 22.9 21.8 27.2 23.6 23.8 29.3 12 22 14

Additional Resources and Comments

Resources
Download SOPs
View Peptide in Panorama
View Protein in Panorama
Comments
