Please include the following statement when referencing the CPTAC Assay Portal
We would like to acknowledge the National Cancer Institute’s Clinical Proteomic Tumor Analysis Consortium (CPTAC) Assay Portal (assays.cancer.gov) for developing assays and establishing criteria for the assays described in this publication.

Overview Data source: UniProt

Official Gene Symbol Other Aliases
BMPR1B N/A
Sequence Length (AA) Molecular Weight (Da)
502 56930
Protein Name
Bone morphogenetic protein receptor type-1B
Sources
UniProt
PhosphoSitePlus ®
GeneCards
Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MLLRSAGKLN VGTKKEDGES TAPTPRPKVL RCKCHHHCPE DSVNNICSTD
60 70 80 90 100
GYCFTMIEED DSGLPVVTSG CLGLEGSDFQ CRDTPIPHQR RSIECCTERN
110 120 130 140 150
ECNKDLHPTL PPLKNRDFVD GPIHHRALLI SVTVCSLLLV LIILFCYFRY
160 170 180 190 200
KRQETRPRYS IGLEQDETYI PPGESLRDLI EQSQSSGSGS GLPLLVQRTI
210 220 230 240 250
AKQIQMVKQI GKGRYGEVWM GKWRGEKVAV KVFFTTEEAS WFRETEIYQT
260 270 280 290 300
VLMRHENILG FIAADIKGTG SWTQLYLITD YHENGSLYDY LKSTTLDAKS
310 320 330 340 350
MLKLAYSSVS GLCHLHTEIF STQGKPAIAH RDLKSKNILV KKNGTCCIAD
360 370 380 390 400
LGLAVKFISD TNEVDIPPNT RVGTKRYMPP EVLDESLNRN HFQSYIMADM
410 420 430 440 450
YSFGLILWEV ARRCVSGGIV EEYQLPYHDL VPSDPSYEDM REIVCIKKLR
460 470 480 490 500
PSFPNRWSSD ECLRQMGKLM TECWAHNPAS RLTALRVKKT LAKMSESQDI
502
KL

Data source: UniProt


Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt



Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for CPTAC-2847 Collapse assay details

Data source: Panorama

Official Gene Symbol
BMPR1B
Peptide Sequence
DLHPTLPPLK
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
105
Peptide End
114
CPTAC ID
CPTAC-2847
Peptide Molecular Mass
1,129.6495
Species
Homo Sapiens
Assay Type
Direct PRM
Matrix
Tumor Digest
Submitting Laboratory
Washington University in St. Louis
Submitting Lab PI
Reid Townsend

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
ThermoFisher, Q-Exactive
Internal Standard
25 fmol on column
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C and 15N at C-terminus K
LC
Easy-nLC 1000 Thermo Scientific
Column Packing
C18
Column Dimensions
75 µm x 50 cm
Flow Rate
300 nL/min

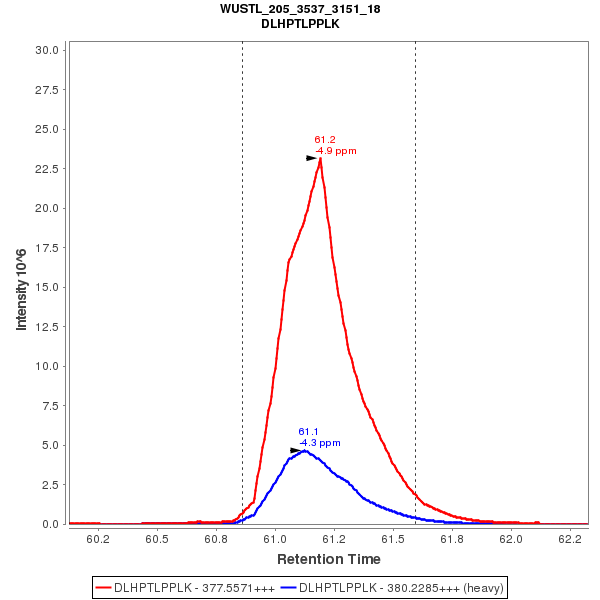

Chromatograms

Data source: Panorama

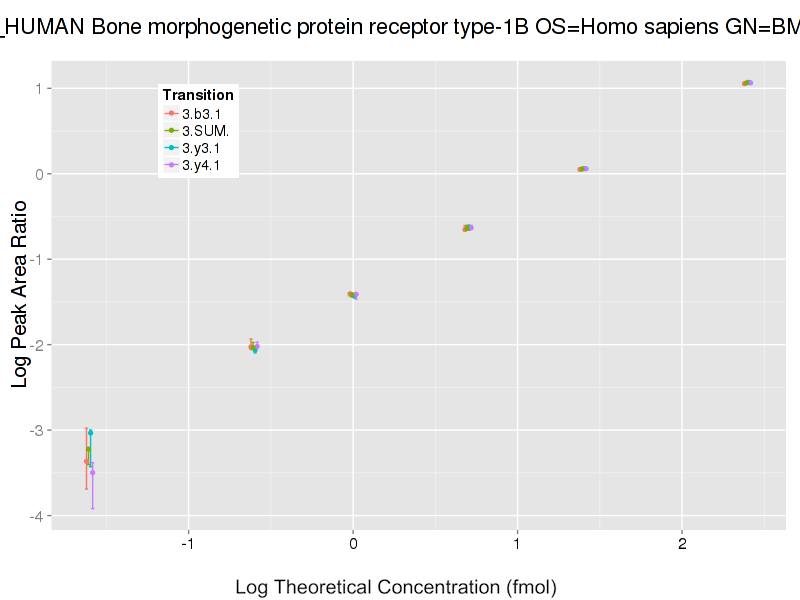

Response Curves

Data source: Panorama

Retrieving Data

Loader

Repeatability

Data source: Panorama

  Average intra-assay CV
(within day CV)
Average inter-assay CV
(between day CV)
Total CV
equation
n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
b3 (1+) 4 3.2 3.6 7.2 3.9 2.4 8.2 5 4.3 15 15 15
y4 (1+) 4 2.9 2.9 8.1 3.6 2.6 9 4.6 3.9 15 15 15
y3 (1+) 4.8 3.7 4.2 7.6 4.1 3.1 9 5.5 5.2 15 15 15
sum 4 3.2 3.4 7.6 3.7 2.4 8.6 4.9 4.2 15 15 15


Additional Resources and Comments


Assay Details for CPTAC-2846 Collapse assay details

Data source: Panorama

Official Gene Symbol
BMPR1B
Peptide Modified Sequence
NGTC[+57.0]C[+57.0]IADLGLAVK
Modification Type
Carbamidomethyl (C), Carbamidomethyl (C)
Protein - Site of Modification
347, 348
Peptide - Site of Modification
4, 5
Peptide Start
343
Peptide End
356
CPTAC ID
CPTAC-2846
Peptide Molecular Mass
1,490.7221
Species
Homo Sapiens
Assay Type
Direct PRM
Matrix
Tumor Digest
Submitting Laboratory
Washington University in St. Louis
Submitting Lab PI
Reid Townsend

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
ThermoFisher, Q-Exactive
Internal Standard
25 fmol on column
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C and 15N at C-terminus K
LC
Easy-nLC 1000 Thermo Scientific
Column Packing
C18
Column Dimensions
75 µm x 50 cm
Flow Rate
300 nL/min

Chromatograms

Data source: Panorama


Response Curves

Data source: Panorama

Retrieving Data

Loader

Repeatability

Data source: Panorama

  Average intra-assay CV
(within day CV)
Average inter-assay CV
(between day CV)
Total CV
equation
n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y6 (1+) 3.9 2.4 3.8 4.7 2.7 3.8 6.1 3.6 5.4 15 15 15
y10 (1+) 3.7 2.3 4.4 3 3.4 5 4.8 4.1 6.7 15 15 15
y8 (1+) 3.8 2.4 3.8 4.2 2.7 4 5.7 3.6 5.5 15 15 15
sum 2.9 2.2 3.8 3.3 2.7 4 4.4 3.5 5.5 15 15 15


Additional Resources and Comments
