Please include the following statement when referencing the CPTAC Assay Portal
We would like to acknowledge the National Cancer Institute’s Clinical Proteomic Tumor Analysis Consortium (CPTAC) Assay Portal (assays.cancer.gov) for developing assays and establishing criteria for the assays described in this publication.

Overview Data source: UniProt

Official Gene Symbol Other Aliases
CDK4 N/A
Sequence Length (AA) Molecular Weight (Da)
303 33730
Protein Name
Cyclin-dependent kinase 4
Sources
UniProt
PhosphoSitePlus ®
GeneCards
Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MATSRYEPVA EIGVGAYGTV YKARDPHSGH FVALKSVRVP NGGGGGGGLP
60 70 80 90 100
ISTVREVALL RRLEAFEHPN VVRLMDVCAT SRTDREIKVT LVFEHVDQDL
110 120 130 140 150
RTYLDKAPPP GLPAETIKDL MRQFLRGLDF LHANCIVHRD LKPENILVTS
160 170 180 190 200
GGTVKLADFG LARIYSYQMA LTPVVVTLWY RAPEVLLQST YATPVDMWSV
210 220 230 240 250
GCIFAEMFRR KPLFCGNSEA DQLGKIFDLI GLPPEDDWPR DVSLPRGAFP
260 270 280 290 300
PRGPRPVQSV VPEMEESGAQ LLLEMLTFNP HKRISAFRAL QHSYLHKDEG
303
NPE

Data source: UniProt


Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt



Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for CPTAC-3070 Collapse assay details

Data source: Panorama

Official Gene Symbol
CDK4
Peptide Sequence
APPPGLPAETIK
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
107
Peptide End
118
CPTAC ID
CPTAC-3070
Peptide Molecular Mass
1,189.6707
Species
Homo Sapiens
Assay Type
Direct PRM
Matrix
Tumor Digest
Submitting Laboratory
Washington University in St. Louis
Submitting Lab PI
Reid Townsend

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
ThermoFisher, Q-Exactive
Internal Standard
25 fmol on column
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C and 15N at C-terminus K
LC
Easy-nLC 1000 Thermo Scientific
Column Packing
C18
Column Dimensions
75 µm x 50 cm
Flow Rate
300 nL/min

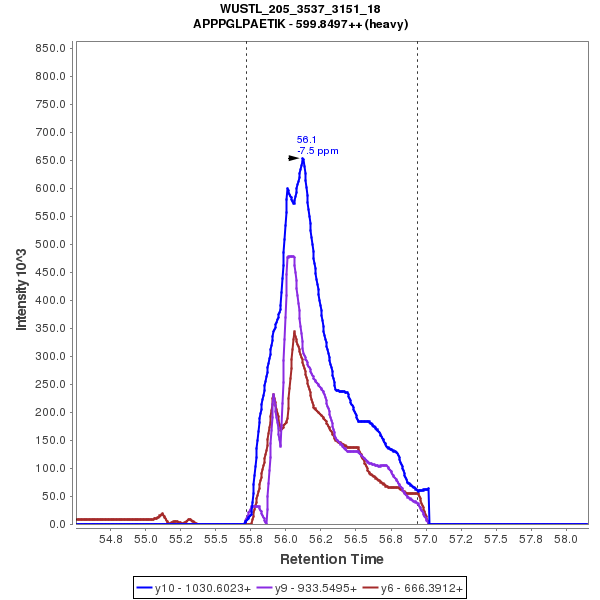

Chromatograms

Data source: Panorama

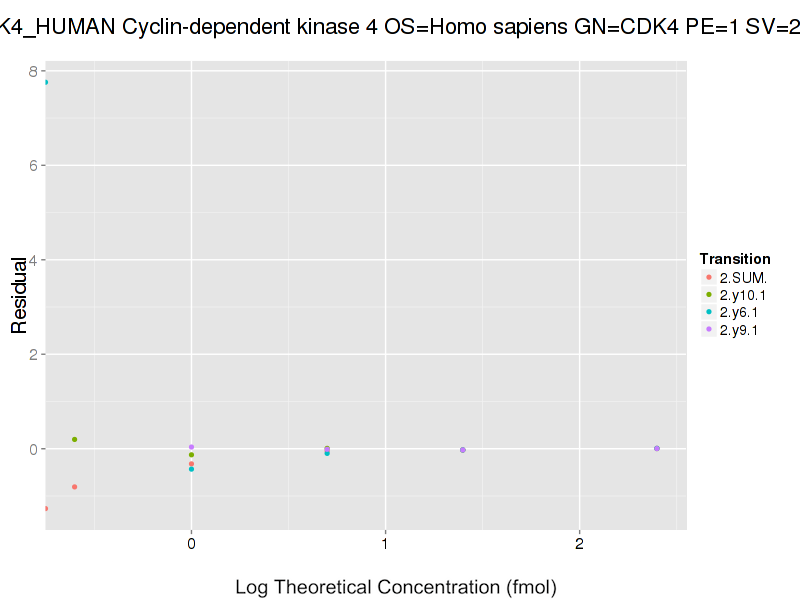

Response Curves

Data source: Panorama

Retrieving Data

Loader

Repeatability

Data source: Panorama

  Average intra-assay CV
(within day CV)
Average inter-assay CV
(between day CV)
Total CV
equation
n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y6 (1+) 6.3 6.8 4 9.1 7.2 6 11.1 9.9 7.2 15 15 15
y9 (1+) 6.5 6.7 4.4 9.5 7.3 5.1 11.5 9.9 6.7 15 15 15
y10 (1+) 6 6.7 5.4 7.9 7.1 5.7 9.9 9.8 7.9 15 15 15
sum 6 6.7 4.7 8.4 7.1 5.4 10.3 9.8 7.2 15 15 15


Additional Resources and Comments
