Please include the following statement when referencing the CPTAC Assay Portal
We would like to acknowledge the National Cancer Institute’s Clinical Proteomic Tumor Analysis Consortium (CPTAC) Assay Portal (assays.cancer.gov) for developing assays and establishing criteria for the assays described in this publication.

PIK3CG

Previous Assay Next Assay
Available Assays

Overview Data source: UniProt

Official Gene Symbol Other Aliases
PIK3CG N/A
Sequence Length (AA) Molecular Weight (Da)
1102 126454
Protein Name
Phosphatidylinositol 4,5-bisphosphate 3-kinase catalytic subunit gamma isoform
Sources
UniProt
PhosphoSitePlus ®
GeneCards 		Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MELENYKQPV VLREDNCRRR RRMKPRSAAA SLSSMELIPI EFVLPTSQRK
60 70 80 90 100
CKSPETALLH VAGHGNVEQM KAQVWLRALE TSVAADFYHR LGPHHFLLLY
110 120 130 140 150
QKKGQWYEIY DKYQVVQTLD CLRYWKATHR SPGQIHLVQR HPPSEESQAF
160 170 180 190 200
QRQLTALIGY DVTDVSNVHD DELEFTRRGL VTPRMAEVAS RDPKLYAMHP
210 220 230 240 250
WVTSKPLPEY LWKKIANNCI FIVIHRSTTS QTIKVSPDDT PGAILQSFFT
260 270 280 290 300
KMAKKKSLMD IPESQSEQDF VLRVCGRDEY LVGETPIKNF QWVRHCLKNG
310 320 330 340 350
EEIHVVLDTP PDPALDEVRK EEWPLVDDCT GVTGYHEQLT IHGKDHESVF
360 370 380 390 400
TVSLWDCDRK FRVKIRGIDI PVLPRNTDLT VFVEANIQHG QQVLCQRRTS
410 420 430 440 450
PKPFTEEVLW NVWLEFSIKI KDLPKGALLN LQIYCGKAPA LSSKASAESP
460 470 480 490 500
SSESKGKVQL LYYVNLLLID HRFLLRRGEY VLHMWQISGK GEDQGSFNAD
510 520 530 540 550
KLTSATNPDK ENSMSISILL DNYCHPIALP KHQPTPDPEG DRVRAEMPNQ
560 570 580 590 600
LRKQLEAIIA TDPLNPLTAE DKELLWHFRY ESLKHPKAYP KLFSSVKWGQ
610 620 630 640 650
QEIVAKTYQL LARREVWDQS ALDVGLTMQL LDCNFSDENV RAIAVQKLES
660 670 680 690 700
LEDDDVLHYL LQLVQAVKFE PYHDSALARF LLKRGLRNKR IGHFLFWFLR
710 720 730 740 750
SEIAQSRHYQ QRFAVILEAY LRGCGTAMLH DFTQQVQVIE MLQKVTLDIK
760 770 780 790 800
SLSAEKYDVS SQVISQLKQK LENLQNSQLP ESFRVPYDPG LKAGALAIEK
810 820 830 840 850
CKVMASKKKP LWLEFKCADP TALSNETIGI IFKHGDDLRQ DMLILQILRI
860 870 880 890 900
MESIWETESL DLCLLPYGCI STGDKIGMIE IVKDATTIAK IQQSTVGNTG
910 920 930 940 950
AFKDEVLNHW LKEKSPTEEK FQAAVERFVY SCAGYCVATF VLGIGDRHND
960 970 980 990 1000
NIMITETGNL FHIDFGHILG NYKSFLGINK ERVPFVLTPD FLFVMGTSGK
1010 1020 1030 1040 1050
KTSPHFQKFQ DICVKAYLAL RHHTNLLIIL FSMMLMTGMP QLTSKEDIEY
1060 1070 1080 1090 1100
IRDALTVGKN EEDAKKYFLD QIEVCRDKGW TVQFNWFLHL VLGIKQGEKH
1102
SA

Data source: UniProt

Protein Map Collapse protein map

Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt


Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for CPTAC-3152 Collapse assay details

Data source: Panorama

Official Gene Symbol
PIK3CG
Peptide Modified Sequence
DHESVFTVSLWDC[+57.0]DR
Modification Type
Carbamidomethyl (C)
Protein - Site of Modification
358
Peptide - Site of Modification
13
Peptide Start
345
Peptide End
359
CPTAC ID
CPTAC-3152
Peptide Molecular Mass
1,864.8050
Species
Homo Sapiens
Assay Type
Direct PRM
Matrix
Tumor Digest
Submitting Laboratory
Washington University in St. Louis
Submitting Lab PI
Reid Townsend

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
ThermoFisher, Q-Exactive
Internal Standard
25 fmol on column
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C and 15N at C-terminus R
LC
Easy-nLC 1000 Thermo Scientific
Column Packing
C18
Column Dimensions
75 µm x 50 cm
Flow Rate
300 nL/min

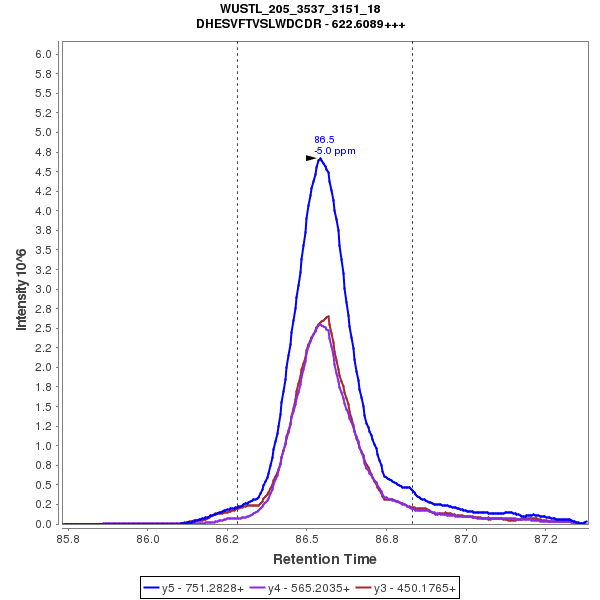

Chromatograms

Data source: Panorama

view larger image
view larger image
view larger image

Response Curves

Data source: Panorama

view larger image
view larger image
view larger image

Retrieving Data

Loader

Repeatability

Data source: Panorama

view larger image
  Average intra-assay CV
(within day CV)		 Average inter-assay CV
(between day CV)		 Total CV
equation		 n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y5 (1+) 7 5.5 3.5 12.8 7.5 6.5 14.6 9.3 7.4 15 15 15
y3 (1+) 5.2 3.2 3.8 16 8.5 5.3 16.8 9.1 6.5 15 15 15
y4 (1+) 9 4.4 6.8 15.6 7.6 7.9 18 8.8 10.4 15 15 15
sum 6.3 4.3 4.2 13.8 7.5 6.2 15.2 8.6 7.5 15 15 15

Additional Resources and Comments

Resources
Download SOPs
View Peptide in Panorama
View Protein in Panorama
Comments

Assay Details for CPTAC-3151 Collapse assay details

Data source: Panorama

Official Gene Symbol
PIK3CG
Peptide Sequence
IQQSTVGNTGAFK
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
891
Peptide End
903
CPTAC ID
CPTAC-3151
Peptide Molecular Mass
1,349.6939
Species
Homo Sapiens
Assay Type
Direct PRM
Matrix
Tumor Digest
Submitting Laboratory
Washington University in St. Louis
Submitting Lab PI
Reid Townsend

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
ThermoFisher, Q-Exactive
Internal Standard
25 fmol on column
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C and 15N at C-terminus K
LC
Easy-nLC 1000 Thermo Scientific
Column Packing
C18
Column Dimensions
75 µm x 50 cm
Flow Rate
300 nL/min

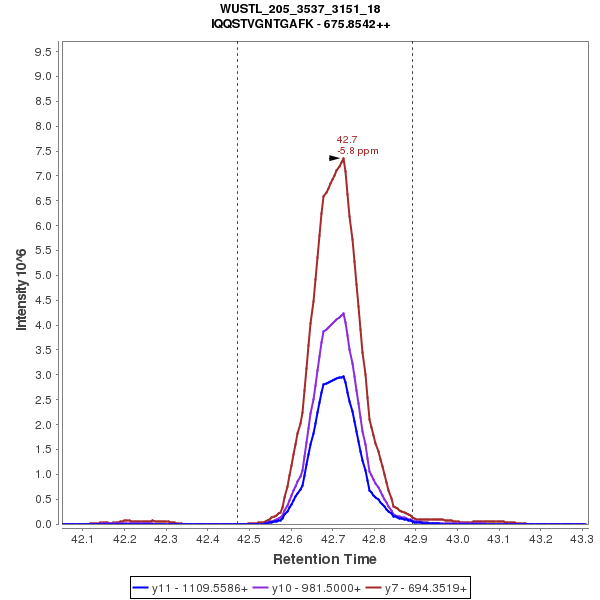

Chromatograms

Data source: Panorama

view larger image
view larger image
view larger image

Response Curves

Data source: Panorama

view larger image
view larger image
view larger image

Retrieving Data

Loader

Repeatability

Data source: Panorama

view larger image
  Average intra-assay CV
(within day CV)		 Average inter-assay CV
(between day CV)		 Total CV
equation		 n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y7 (1+) 3 2.5 3.6 6.1 2.7 4 6.8 3.7 5.4 15 15 15
y11 (1+) 3.4 1.5 4.8 6.3 1.9 5.4 7.2 2.4 7.2 15 15 15
y10 (1+) 2.8 2.5 4.3 7.5 2.4 4.4 8 3.5 6.2 15 15 15
sum 2.8 1.9 4.1 6.3 2 4.2 6.9 2.8 5.9 15 15 15

Additional Resources and Comments

Resources
Download SOPs
View Peptide in Panorama
View Protein in Panorama
Comments

Assay Details for CPTAC-3150 Collapse assay details

Data source: Panorama

Official Gene Symbol
PIK3CG
Peptide Sequence
LGPHHFLLLYQK
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
91
Peptide End
102
CPTAC ID
CPTAC-3150
Peptide Molecular Mass
1,464.8242
Species
Homo Sapiens
Assay Type
Direct PRM
Matrix
Tumor Digest
Submitting Laboratory
Washington University in St. Louis
Submitting Lab PI
Reid Townsend

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
ThermoFisher, Q-Exactive
Internal Standard
25 fmol on column
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C and 15N at C-terminus K
LC
Easy-nLC 1000 Thermo Scientific
Column Packing
C18
Column Dimensions
75 µm x 50 cm
Flow Rate
300 nL/min

Chromatograms

Data source: Panorama

view larger image
view larger image
view larger image

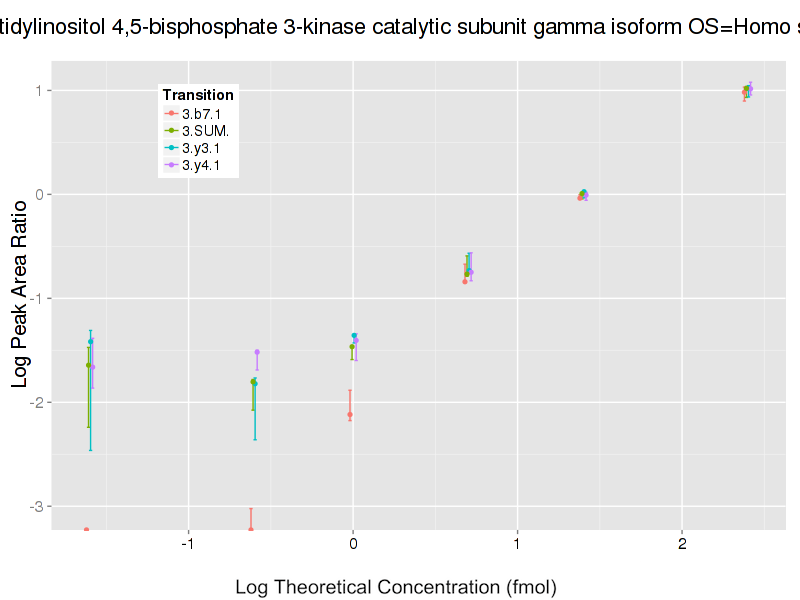

Response Curves

Data source: Panorama

view larger image
view larger image
view larger image

Retrieving Data

Loader

Repeatability

Data source: Panorama

view larger image
  Average intra-assay CV
(within day CV)		 Average inter-assay CV
(between day CV)		 Total CV
equation		 n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
b7 (1+) 5.5 5.5 4.3 10.5 8.2 6.7 11.9 9.9 8 15 15 15
y4 (1+) 6.9 4.8 7.3 11.3 6 8.1 13.2 7.7 10.9 15 15 15
y3 (1+) 11.2 5.3 7.7 16 6.9 10.8 19.5 8.7 13.3 15 15 15
sum 6.5 4.8 6.5 11.8 6.6 8.1 13.5 8.2 10.4 15 15 15

Additional Resources and Comments

Resources
Download SOPs
View Peptide in Panorama
View Protein in Panorama
Comments
