Please include the following statement when referencing the CPTAC Assay Portal
We would like to acknowledge the National Cancer Institute’s Clinical Proteomic Tumor Analysis Consortium (CPTAC) Assay Portal (assays.cancer.gov) for developing assays and establishing criteria for the assays described in this publication.

Overview Data source: UniProt

Official Gene Symbol Other Aliases
NAPA SNAPA
Sequence Length (AA) Molecular Weight (Da)
295 33233
Protein Name
Alpha-soluble NSF attachment protein
Sources
UniProt
PhosphoSitePlus ®
GeneCards
Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MDNSGKEAEA MALLAEAERK VKNSQSFFSG LFGGSSKIEE ACEIYARAAN
60 70 80 90 100
MFKMAKNWSA AGNAFCQAAQ LHLQLQSKHD AATCFVDAGN AFKKADPQEA
110 120 130 140 150
INCLMRAIEI YTDMGRFTIA AKHHISIAEI YETELVDIEK AIAHYEQSAD
160 170 180 190 200
YYKGEESNSS ANKCLLKVAG YAALLEQYQK AIDIYEQVGT NAMDSPLLKY
210 220 230 240 250
SAKDYFFKAA LCHFCIDMLN AKLAVQKYEE LFPAFSDSRE CKLMKKLLEA
260 270 280 290 295
HEEQNVDSYT ESVKEYDSIS RLDQWLTTML LRIKKTIQGD EEDLR

Data source: UniProt


Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt



Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for CPTAC-547 Collapse assay details

Data source: Panorama

Official Gene Symbol
NAPA
Peptide Sequence
VAGYAALLEQYQK
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
168
Peptide End
180
CPTAC ID
CPTAC-547
Peptide Molecular Mass
1,452.7613
Species
Homo sapiens (Human)
Assay Type
Direct MRM
Matrix
cell line lysate pool
Submitting Laboratory
Seoul National University / Korea Institute of Science and Technology and FHCRC
Submitting Lab PI
Youngsoo Kim

Publication

View Details (opens in a new window)

Demonstrating the feasibility of large-scale development of standardized assays to quantify human proteins. Kennedy JJ, Abbatiello SE, Kim K, Yan P, Whiteaker JR, Lin C, Kim JS, Zhang Y, Wang X, Ivey RG, Zhao L, Min H, Lee Y, Yu MH, Yang EG, Lee C, Wang P, Rodriguez H, Kim Y, Carr SA, Paulovich AG. Nat Methods. 2014 Feb;11(2):149-55. doi: 10.1038/nmeth.2763. Epub 2013 Dec 8. PMID: 24317253


Response curves acquired at Seoul National University / Korea Institute of Science and Technology. Repeatability data acquired at Fred Hutchinson Cancer Research Center.


Response curves acquired at Seoul National University / Korea Institute of Science and Technology. Repeatability data acquired at Fred Hutchinson Cancer Research Center.


Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
5500 QTRAP (ABSCIEX)
Internal Standard
peptide
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C,15N
LC
nanoLC-Ultra 2D, cHiPLC-nanoflex (Eksigent)
Column Packing
ChromXP C18-CL, 3 um, 120A
Column Dimensions
150 x 0.075 mm
Flow Rate
500 nL / min

Chromatograms

Data source: Panorama


Response Curves

Data source: Panorama

Retrieving Data

Loader

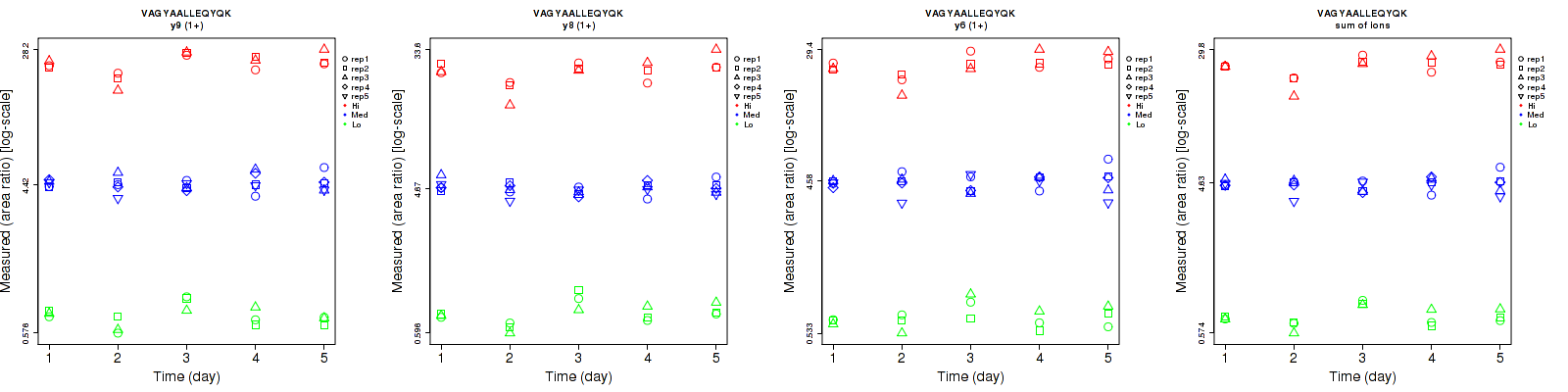

Repeatability

Data source: Panorama

  Average intra-assay CV
(within day CV)
Average inter-assay CV
(between day CV)
Total CV
equation
n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y9 (1+) 9 10.2 7.8 15.3 9.8 14.1 17.8 14.1 16.1 15 25 15
y8 (1+) 8.7 8.7 11.8 17.1 9.2 16.8 19.2 12.7 20.5 15 25 15
y6 (1+) 12.3 12.6 11.2 14.6 12.4 15.1 19.1 17.7 18.8 15 25 15
sum 6.8 9.7 8.7 13.8 9.8 14.5 15.4 13.8 16.9 15 25 15


Additional Resources and Comments


Assay Details for CPTAC-548 Collapse assay details

Data source: Panorama

Official Gene Symbol
NAPA
Peptide Sequence
YEELFPAFSDSR
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
228
Peptide End
239
CPTAC ID
CPTAC-548
Peptide Molecular Mass
1,459.6620
Species
Homo sapiens (Human)
Assay Type
Direct MRM
Matrix
cell line lysate pool
Submitting Laboratory
Seoul National University / Korea Institute of Science and Technology and FHCRC
Submitting Lab PI
Youngsoo Kim

Publication

View Details (opens in a new window)

Demonstrating the feasibility of large-scale development of standardized assays to quantify human proteins. Kennedy JJ, Abbatiello SE, Kim K, Yan P, Whiteaker JR, Lin C, Kim JS, Zhang Y, Wang X, Ivey RG, Zhao L, Min H, Lee Y, Yu MH, Yang EG, Lee C, Wang P, Rodriguez H, Kim Y, Carr SA, Paulovich AG. Nat Methods. 2014 Feb;11(2):149-55. doi: 10.1038/nmeth.2763. Epub 2013 Dec 8. PMID: 24317253


Response curves acquired at Seoul National University / Korea Institute of Science and Technology. Repeatability data acquired at Fred Hutchinson Cancer Research Center.


Response curves acquired at Seoul National University / Korea Institute of Science and Technology. Repeatability data acquired at Fred Hutchinson Cancer Research Center.


Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
5500 QTRAP (ABSCIEX)
Internal Standard
peptide
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C,15N
LC
nanoLC-Ultra 2D, cHiPLC-nanoflex (Eksigent)
Column Packing
ChromXP C18-CL, 3 um, 120A
Column Dimensions
150 x 0.075 mm
Flow Rate
500 nL / min

Chromatograms

Data source: Panorama

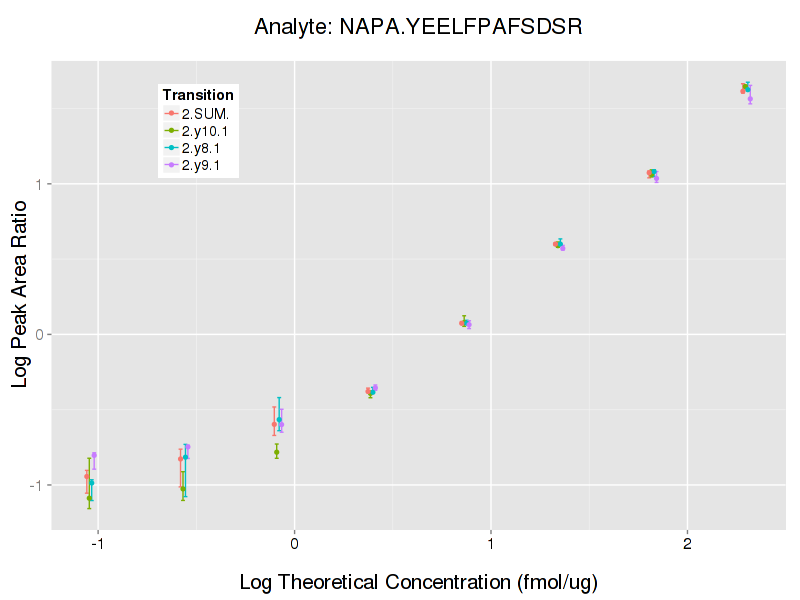

Response Curves

Data source: Panorama

Retrieving Data

Loader

Repeatability

Data source: Panorama

  Average intra-assay CV
(within day CV)
Average inter-assay CV
(between day CV)
Total CV
equation
n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y10 (1+) 10.6 11.3 11.6 16.6 14.4 13.1 19.7 18.3 17.5 15 25 15
y9 (1+) 17.8 13.4 8.8 18 13.9 13.4 25.3 19.3 16 15 25 15
y8 (1+) 8.5 7.7 4.5 18.6 8.9 7.5 20.5 11.8 8.7 15 25 15
sum 7.4 7.9 3.8 15.9 9.9 5.2 17.5 12.7 6.4 15 25 15


Additional Resources and Comments
