Please include the following statement when referencing the CPTAC Assay Portal
We would like to acknowledge the National Cancer Institute’s Clinical Proteomic Tumor Analysis Consortium (CPTAC) Assay Portal (assays.cancer.gov) for developing assays and establishing criteria for the assays described in this publication.

Overview Data source: UniProt

Official Gene Symbol Other Aliases
PGK1 PGKA
Sequence Length (AA) Molecular Weight (Da)
417 44615
Protein Name
Phosphoglycerate kinase 1
Sources
UniProt
PhosphoSitePlus ®
GeneCards
Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MSLSNKLTLD KLDVKGKRVV MRVDFNVPMK NNQITNNQRI KAAVPSIKFC
60 70 80 90 100
LDNGAKSVVL MSHLGRPDGV PMPDKYSLEP VAVELKSLLG KDVLFLKDCV
110 120 130 140 150
GPEVEKACAN PAAGSVILLE NLRFHVEEEG KGKDASGNKV KAEPAKIEAF
160 170 180 190 200
RASLSKLGDV YVNDAFGTAH RAHSSMVGVN LPQKAGGFLM KKELNYFAKA
210 220 230 240 250
LESPERPFLA ILGGAKVADK IQLINNMLDK VNEMIIGGGM AFTFLKVLNN
260 270 280 290 300
MEIGTSLFDE EGAKIVKDLM SKAEKNGVKI TLPVDFVTAD KFDENAKTGQ
310 320 330 340 350
ATVASGIPAG WMGLDCGPES SKKYAEAVTR AKQIVWNGPV GVFEWEAFAR
360 370 380 390 400
GTKALMDEVV KATSRGCITI IGGGDTATCC AKWNTEDKVS HVSTGGGASL
410 417
ELLEGKVLPG VDALSNI

Data source: UniProt


Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt



Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for CPTAC-562 Collapse assay details

Data source: Panorama

Official Gene Symbol
PGK1
Peptide Modified Sequence
AC[+57.0]ANPAAGSVILLENLR
Modification Type
Carbamidomethyl Cysteine
Protein - Site of Modification
108
Peptide - Site of Modification
2
Peptide Start
107
Peptide End
123
CPTAC ID
CPTAC-562
Peptide Molecular Mass
1,767.9302
Species
Homo sapiens (Human)
Assay Type
Direct MRM
Matrix
cell line lysate pool
Submitting Laboratory
Seoul National University / Korea Institute of Science and Technology and FHCRC
Submitting Lab PI
Youngsoo Kim

Publication

View Details (opens in a new window)

Demonstrating the feasibility of large-scale development of standardized assays to quantify human proteins. Kennedy JJ, Abbatiello SE, Kim K, Yan P, Whiteaker JR, Lin C, Kim JS, Zhang Y, Wang X, Ivey RG, Zhao L, Min H, Lee Y, Yu MH, Yang EG, Lee C, Wang P, Rodriguez H, Kim Y, Carr SA, Paulovich AG. Nat Methods. 2014 Feb;11(2):149-55. doi: 10.1038/nmeth.2763. Epub 2013 Dec 8. PMID: 24317253


Response curves acquired at Seoul National University / Korea Institute of Science and Technology. Repeatability data acquired at Fred Hutchinson Cancer Research Center.


Response curves acquired at Seoul National University / Korea Institute of Science and Technology. Repeatability data acquired at Fred Hutchinson Cancer Research Center.


Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
5500 QTRAP (ABSCIEX)
Internal Standard
peptide
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C,15N
LC
nanoLC-Ultra 2D, cHiPLC-nanoflex (Eksigent)
Column Packing
ChromXP C18-CL, 3 um, 120A
Column Dimensions
150 x 0.075 mm
Flow Rate
500 nL / min

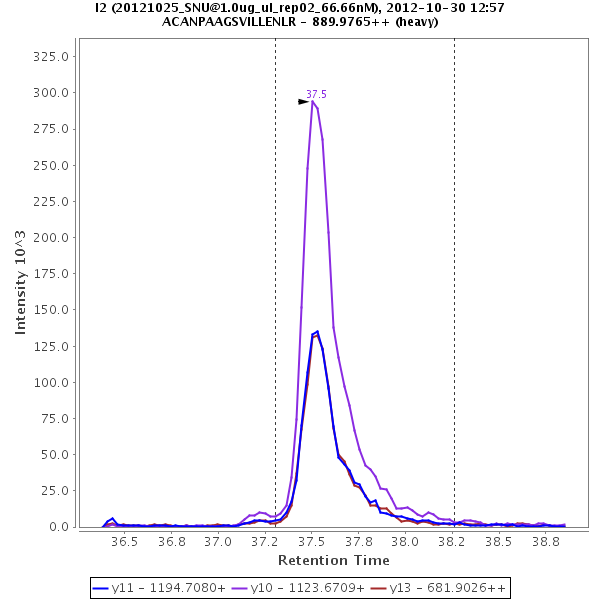

Chromatograms

Data source: Panorama

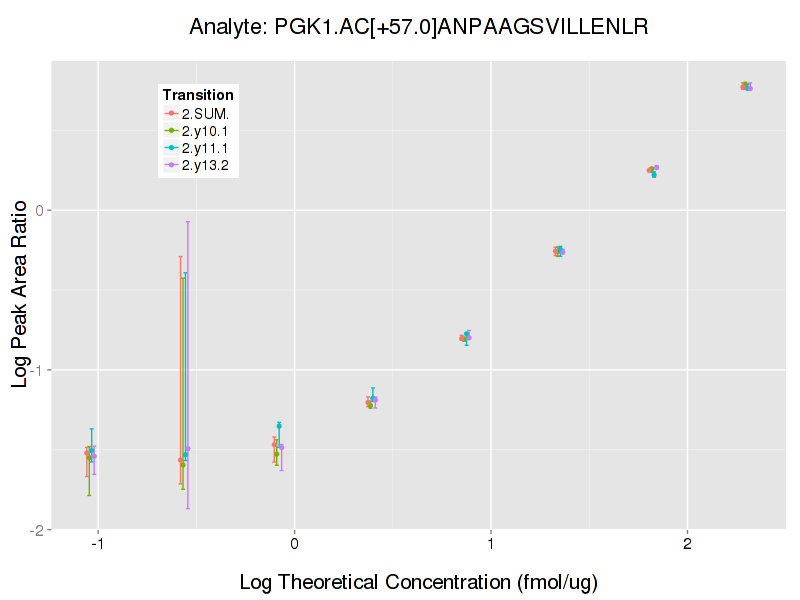

Response Curves

Data source: Panorama

Retrieving Data

Loader

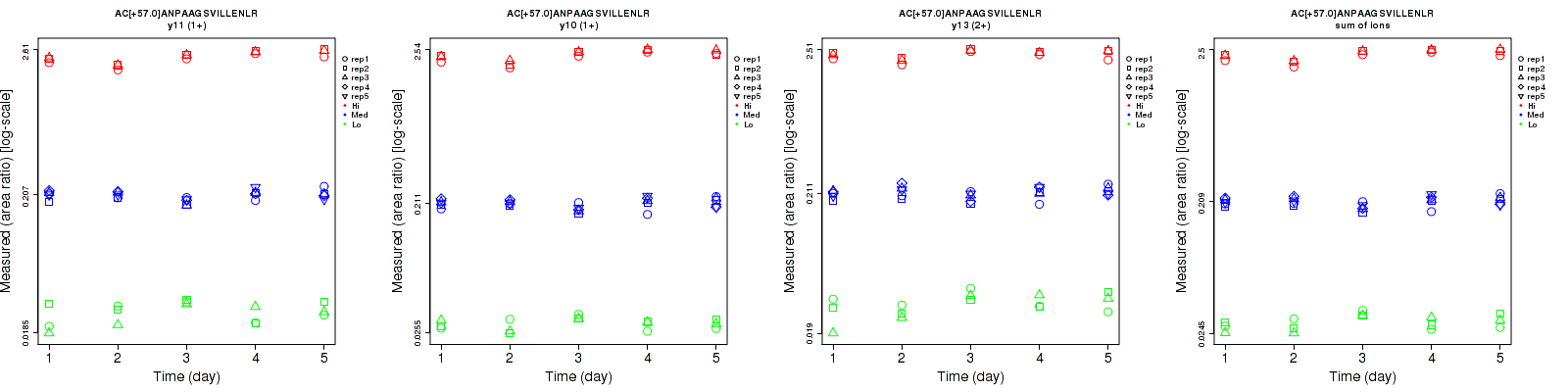

Repeatability

Data source: Panorama

  Average intra-assay CV
(within day CV)
Average inter-assay CV
(between day CV)
Total CV
equation
n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y11 (1+) 15.5 7 4.4 18 8.7 10.4 23.8 11.2 11.3 15 25 15
y10 (1+) 7.8 7.2 4.2 9.6 8.6 8.9 12.4 11.2 9.8 15 25 15
y13 (2+) 15.7 9 4.9 19 9.1 6.9 24.6 12.8 8.5 15 25 15
sum 9.4 7.1 4.1 12.5 8.3 8.3 15.6 10.9 9.3 15 25 15


Additional Resources and Comments


Assay Details for CPTAC-563 Collapse assay details

Data source: Panorama

Official Gene Symbol
PGK1
Peptide Sequence
ITLPVDFVTADK
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
280
Peptide End
291
CPTAC ID
CPTAC-563
Peptide Molecular Mass
1,317.7180
Species
Homo sapiens (Human)
Assay Type
Direct MRM
Matrix
cell line lysate pool
Submitting Laboratory
Seoul National University / Korea Institute of Science and Technology and FHCRC
Submitting Lab PI
Youngsoo Kim

Publication

View Details (opens in a new window)

Demonstrating the feasibility of large-scale development of standardized assays to quantify human proteins. Kennedy JJ, Abbatiello SE, Kim K, Yan P, Whiteaker JR, Lin C, Kim JS, Zhang Y, Wang X, Ivey RG, Zhao L, Min H, Lee Y, Yu MH, Yang EG, Lee C, Wang P, Rodriguez H, Kim Y, Carr SA, Paulovich AG. Nat Methods. 2014 Feb;11(2):149-55. doi: 10.1038/nmeth.2763. Epub 2013 Dec 8. PMID: 24317253


Response curves acquired at Seoul National University / Korea Institute of Science and Technology. Repeatability data acquired at Fred Hutchinson Cancer Research Center.


Response curves acquired at Seoul National University / Korea Institute of Science and Technology. Repeatability data acquired at Fred Hutchinson Cancer Research Center.


Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
5500 QTRAP (ABSCIEX)
Internal Standard
peptide
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C,15N
LC
nanoLC-Ultra 2D, cHiPLC-nanoflex (Eksigent)
Column Packing
ChromXP C18-CL, 3 um, 120A
Column Dimensions
150 x 0.075 mm
Flow Rate
500 nL / min

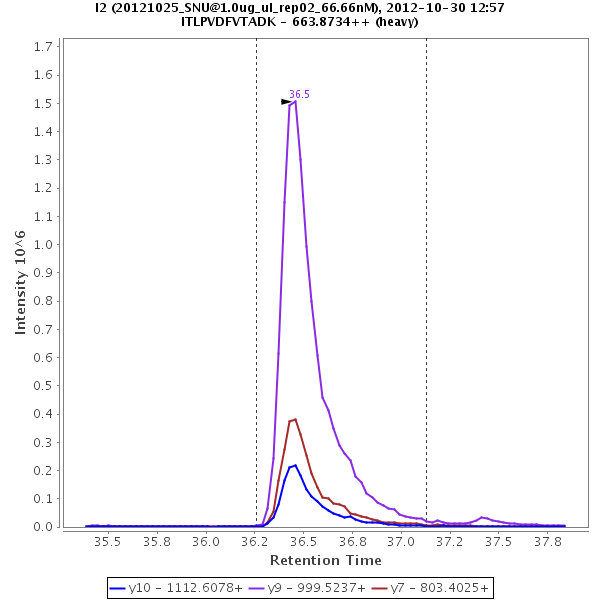

Chromatograms

Data source: Panorama

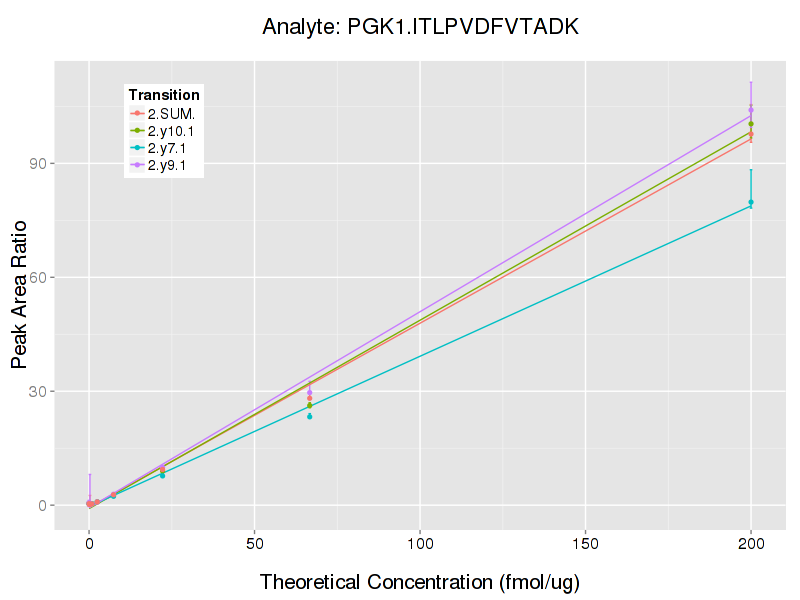

Response Curves

Data source: Panorama

Retrieving Data

Loader

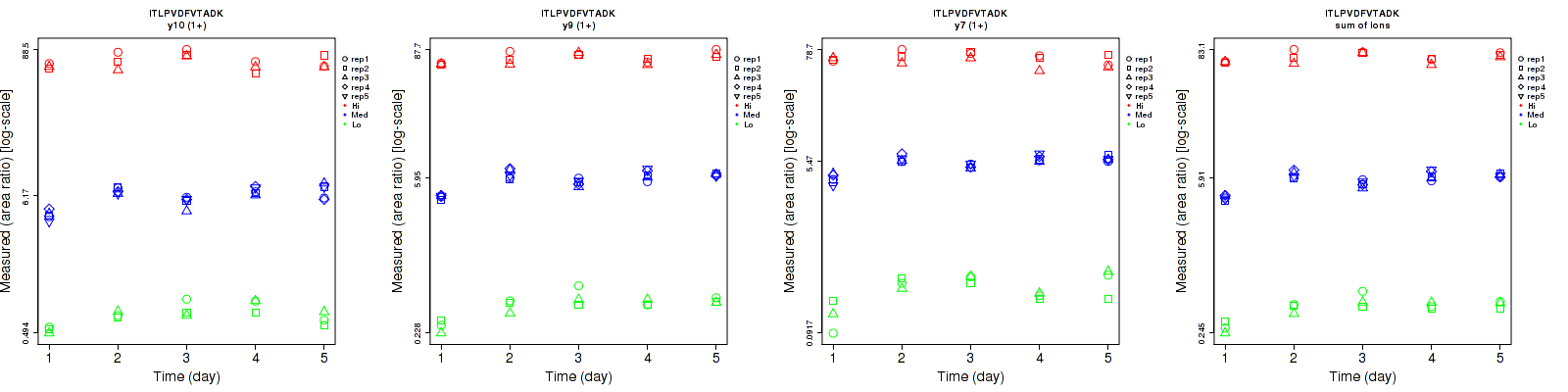

Repeatability

Data source: Panorama

  Average intra-assay CV
(within day CV)
Average inter-assay CV
(between day CV)
Total CV
equation
n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y10 (1+) 10.5 8.6 10.1 18.7 20 12.8 21.4 21.8 16.3 15 25 15
y9 (1+) 11.9 6.7 6.5 22.9 19.7 11 25.8 20.8 12.8 15 25 15
y7 (1+) 19 7.6 12.4 34.5 19.5 11.7 39.4 20.9 17 15 25 15
sum 10.5 6.3 5.5 20.5 19.2 9.6 23 20.2 11.1 15 25 15


Additional Resources and Comments
