Please include the following statement when referencing the CPTAC Assay Portal
We would like to acknowledge the National Cancer Institute’s Clinical Proteomic Tumor Analysis Consortium (CPTAC) Assay Portal (assays.cancer.gov) for developing assays and establishing criteria for the assays described in this publication.

Alpl

Previous Assay Next Assay
Available Assays

Overview Data source: UniProt

Official Gene Symbol Other Aliases
Alpl Akp-2, Akp2
Sequence Length (AA) Molecular Weight (Da)
524 57514
Protein Name
Alkaline phosphatase, tissue-nonspecific isozyme
Sources
UniProt
PhosphoSitePlus ®
GeneCards 		Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MISPFLVLAI GTCLTNSFVP EKERDPSYWR QQAQETLKNA LKLQKLNTNV
60 70 80 90 100
AKNVIMFLGD GMGVSTVTAA RILKGQLHHN TGEETRLEMD KFPFVALSKT
110 120 130 140 150
YNTNAQVPDS AGTATAYLCG VKANEGTVGV SAATERTRCN TTQGNEVTSI
160 170 180 190 200
LRWAKDAGKS VGIVTTTRVN HATPSAAYAH SADRDWYSDN EMPPEALSQG
210 220 230 240 250
CKDIAYQLMH NIKDIDVIMG GGRKYMYPKN RTDVEYELDE KARGTRLDGL
260 270 280 290 300
DLISIWKSFK PRHKHSHYVW NRTELLALDP SRVDYLLGLF EPGDMQYELN
310 320 330 340 350
RNNLTDPSLS EMVEVALRIL TKNLKGFFLL VEGGRIDHGH HEGKAKQALH
360 370 380 390 400
EAVEMDQAIG KAGAMTSQKD TLTVVTADHS HVFTFGGYTP RGNSIFGLAP
410 420 430 440 450
MVSDTDKKPF TAILYGNGPG YKVVDGEREN VSMVDYAHNN YQAQSAVPLR
460 470 480 490 500
HETHGGEDVA VFAKGPMAHL LHGVHEQNYI PHVMAYASCI GANLDHCAWA
510 520 524
GSGSAPSPGA LLLPLAVLSL RTLF

Data source: UniProt

Protein Map Collapse protein map

Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt


Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for non-CPTAC-3492 Collapse assay details

Data source: Panorama

Official Gene Symbol
Alpl
Peptide Sequence
ANEGTVGVSAATER
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
123
Peptide End
136
CPTAC ID
non-CPTAC-3492
Peptide Molecular Mass
1,360.6583
Species
Mus musculus (Mouse)
Assay Type
Direct MRM
Matrix
Plasma
Submitting Laboratory
UVic-Genome BC Proteomics Centre
Submitting Lab PI
Christoph Borchers

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
Agilent 6490/6495 QQQ
Internal Standard
synthetic peptide
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C and 15N at C-terminus R
LC
1290 LC (Agilent)
Column Packing
Zorbax Eclipse Plus C18, 1.8 µm
Column Dimensions
2.1 x 150 mm
Flow Rate
400 µL/min

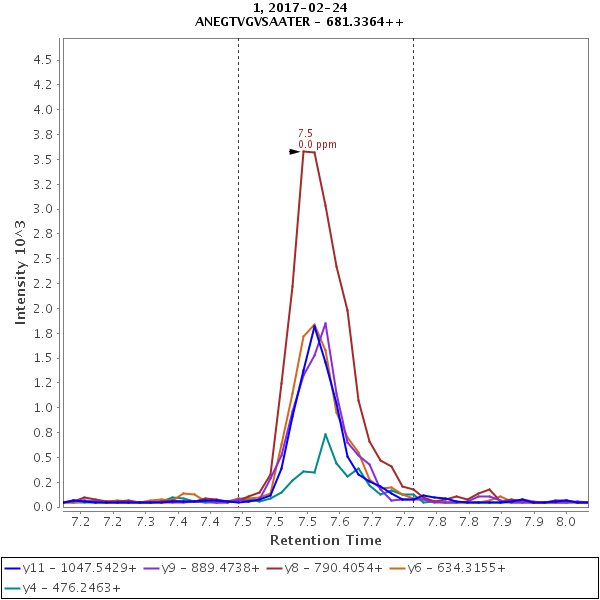

Chromatograms

Data source: Panorama

view larger image
view larger image
view larger image

Response Curves

Data source: Panorama

view larger image
view larger image
view larger image

Retrieving Data

Loader

Repeatability

Data source: Panorama

view larger image
  Average intra-assay CV
(within day CV)		 Average inter-assay CV
(between day CV)		 Total CV
equation		 n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y4 (1+) 36.8 10.8 18.6 41.8 16.6 21.3 55.7 19.8 28.3 15 15 15
y6 (1+) 14.1 12.1 10.8 16.5 10.5 12.6 21.7 16 16.6 15 15 15
y8 (1+) 10.7 8 5.4 12.3 8.6 5.9 16.3 11.7 8 15 15 15
y9 (1+) 22.1 8.4 8.9 25.4 9.4 8.3 33.7 12.6 12.2 15 15 15
y11 (1+) 22.2 9.9 6.6 27.8 9.7 7.9 35.6 13.9 10.3 15 15 15
sum 6.1 3.2 4.2 9.8 4.5 5.1 11.5 5.5 6.6 15 15 15

Additional Resources and Comments

Resources
Download SOPs
View Peptide in Panorama
View Protein in Panorama
Comments
