Please include the following statement when referencing the CPTAC Assay Portal
We would like to acknowledge the National Cancer Institute’s Clinical Proteomic Tumor Analysis Consortium (CPTAC) Assay Portal (assays.cancer.gov) for developing assays and establishing criteria for the assays described in this publication.

Overview Data source: UniProt

Official Gene Symbol Other Aliases
PDK1 PDHK1
Sequence Length (AA) Molecular Weight (Da)
436 49244
Protein Name
[Pyruvate dehydrogenase (acetyl-transferring)] kinase isozyme 1, mitochondrial
Sources
UniProt
PhosphoSitePlus ®
GeneCards
Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MRLARLLRGA ALAGPGPGLR AAGFSRSFSS DSGSSPASER GVPGQVDFYA
60 70 80 90 100
RFSPSPLSMK QFLDFGSVNA CEKTSFMFLR QELPVRLANI MKEISLLPDN
110 120 130 140 150
LLRTPSVQLV QSWYIQSLQE LLDFKDKSAE DAKAIYDFTD TVIRIRNRHN
160 170 180 190 200
DVIPTMAQGV IEYKESFGVD PVTSQNVQYF LDRFYMSRIS IRMLLNQHSL
210 220 230 240 250
LFGGKGKGSP SHRKHIGSIN PNCNVLEVIK DGYENARRLC DLYYINSPEL
260 270 280 290 300
ELEELNAKSP GQPIQVVYVP SHLYHMVFEL FKNAMRATME HHANRGVYPP
310 320 330 340 350
IQVHVTLGNE DLTVKMSDRG GGVPLRKIDR LFNYMYSTAP RPRVETSRAV
360 370 380 390 400
PLAGFGYGLP ISRLYAQYFQ GDLKLYSLEG YGTDAVIYIK ALSTDSIERL
410 420 430 436
PVYNKAAWKH YNTNHEADDW CVPSREPKDM TTFRSA

Data source: UniProt


Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt



Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for CPTAC-2843 Collapse assay details

Data source: Panorama

Official Gene Symbol
PDK1
Peptide Modified Sequence
HIGSINPNC[+57.0]NVLEVIK
Modification Type
Carbamidomethyl (C)
Protein - Site of Modification
223
Peptide - Site of Modification
9
Peptide Start
215
Peptide End
230
CPTAC ID
CPTAC-2843
Peptide Molecular Mass
1,805.9458
Species
Homo sapiens (Human)
Assay Type
Direct PRM
Matrix
Tumor Digest
Submitting Laboratory
Washington University in St. Louis
Submitting Lab PI
Reid Townsend

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
ThermoFisher, Q-Exactive™
Internal Standard
25 fmol on column
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C and 15N at C-terminus K
LC
EASY-nLC™ 1000 Thermo Scientific
Column Packing
C18
Column Dimensions
75 µm x 50 cm
Flow Rate
300 nl/min

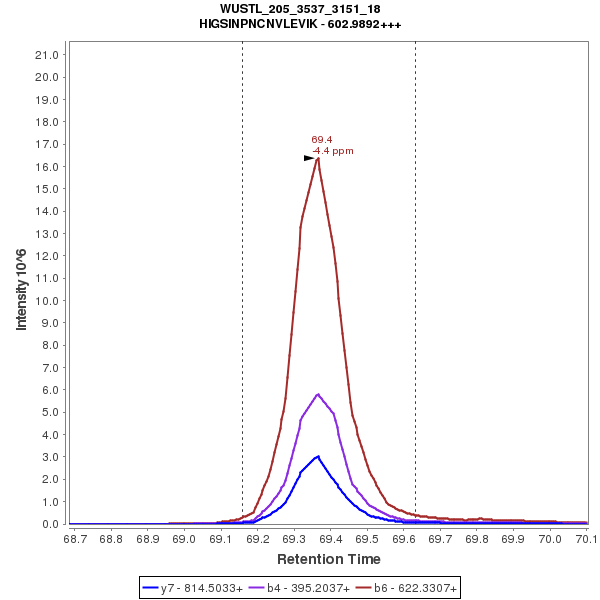

Chromatograms

Data source: Panorama

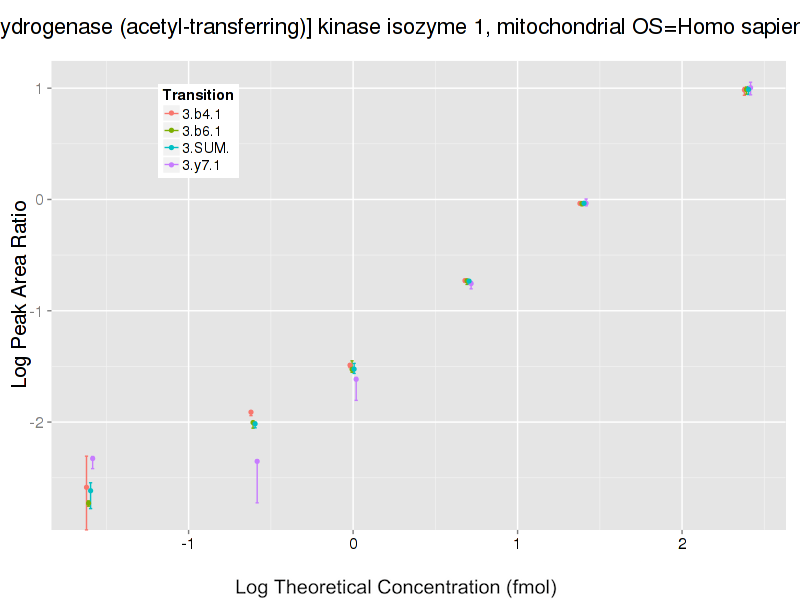

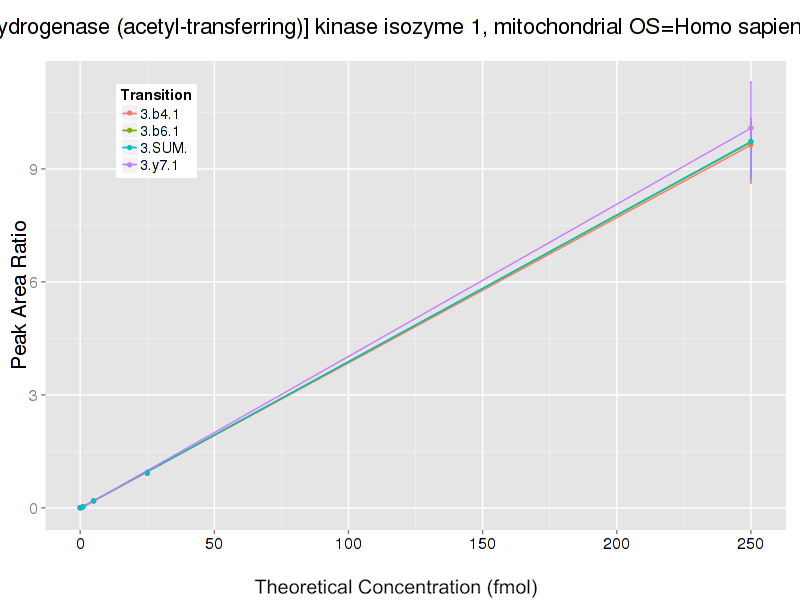

Response Curves

Data source: Panorama

Retrieving Data

Loader

Repeatability

Data source: Panorama

  Average intra-assay CV
(within day CV)
Average inter-assay CV
(between day CV)
Total CV
equation
n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y7 (1+) 30.6 4.7 8.7 45.9 4.4 9.1 55.2 6.4 12.6 15 15 15
b4 (1+) 29.8 4.8 9.6 48.1 5.3 10.7 56.6 7.2 14.4 15 15 15
b6 (1+) 8.6 4 6.1 19 4.6 9.9 20.9 6.1 11.6 15 15 15
sum 12.8 3.9 6.1 25.4 4.4 9.3 28.4 5.9 11.1 15 15 15


Additional Resources and Comments


Assay Details for CPTAC-2889 Collapse assay details

Data source: Panorama

Official Gene Symbol
PDK1
Peptide Sequence
LYAQYFQGDLK
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
364
Peptide End
374
CPTAC ID
CPTAC-2889
Peptide Molecular Mass
1,344.6714
Species
Homo Sapiens
Assay Type
Direct PRM
Matrix
Tumor Digest
Submitting Laboratory
Washington University in St. Louis
Submitting Lab PI
Reid Townsend

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
ThermoFisher, Q-Exactive
Internal Standard
25 fmol on column
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C and 15N at C-terminus K
LC
Easy-nLC 1000 Thermo Scientific
Column Packing
C18
Column Dimensions
75 µm x 50 cm
Flow Rate
300 nL/min

Chromatograms

Data source: Panorama

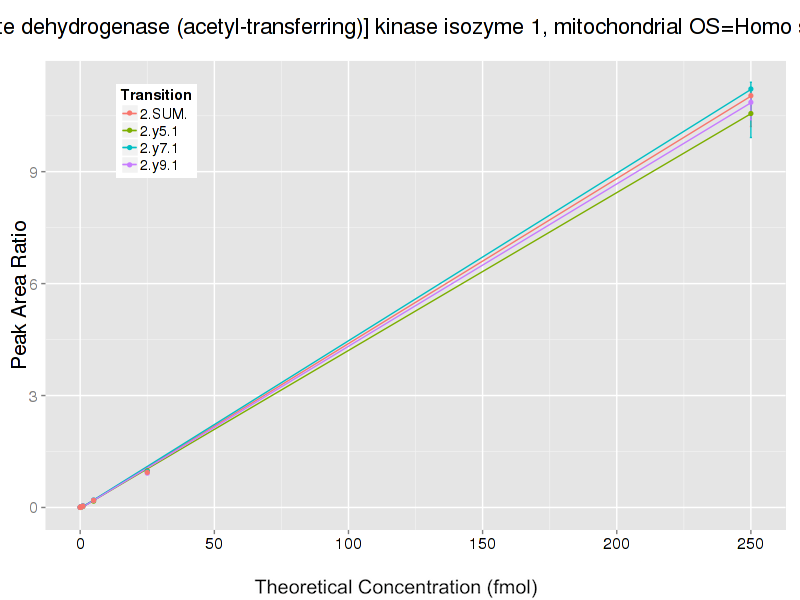

Response Curves

Data source: Panorama

Retrieving Data

Loader

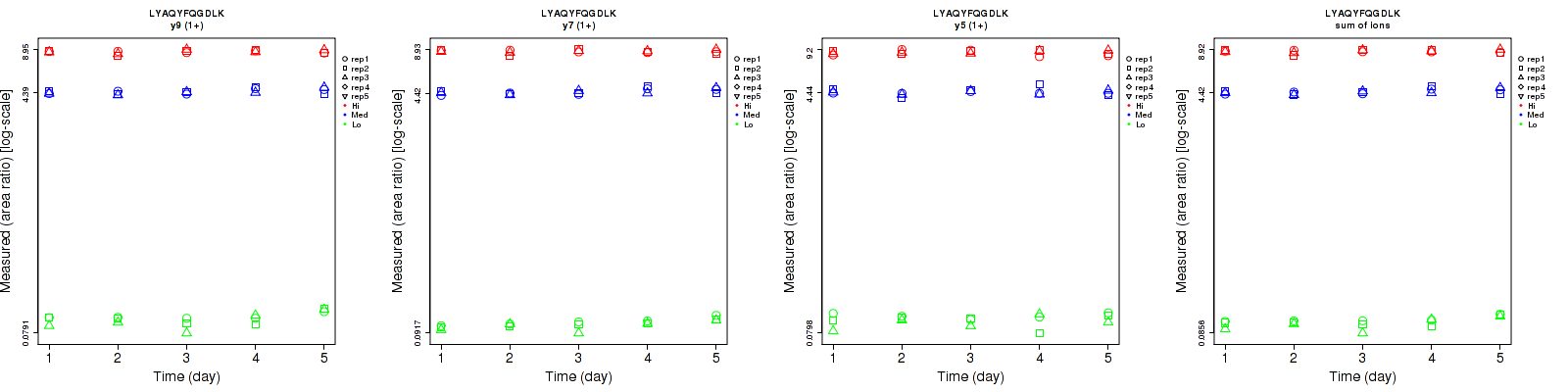

Repeatability

Data source: Panorama

  Average intra-assay CV
(within day CV)
Average inter-assay CV
(between day CV)
Total CV
equation
n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y9 (1+) 7 3.4 2.4 10.3 4.5 2.8 12.5 5.6 3.7 15 15 15
y7 (1+) 4.3 3.6 2.6 6.6 4.7 2.6 7.9 5.9 3.7 15 15 15
y5 (1+) 9.7 4.5 4.1 8.6 4.6 3.7 13 6.4 5.5 15 15 15
sum 5.4 3.5 2.3 7.8 4.5 2.4 9.5 5.7 3.3 15 15 15


Additional Resources and Comments
