Please include the following statement when referencing the CPTAC Assay Portal
We would like to acknowledge the National Cancer Institute’s Clinical Proteomic Tumor Analysis Consortium (CPTAC) Assay Portal (assays.cancer.gov) for developing assays and establishing criteria for the assays described in this publication.

DYRK1A

Previous Assay Next Assay
Available Assays

Overview Data source: UniProt

Official Gene Symbol Other Aliases
DYRK1A DYRK, MNB, MNBH
Sequence Length (AA) Molecular Weight (Da)
763 85584
Protein Name
Dual specificity tyrosine-phosphorylation-regulated kinase 1A
Sources
UniProt
PhosphoSitePlus ®
GeneCards 		Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MHTGGETSAC KPSSVRLAPS FSFHAAGLQM AGQMPHSHQY SDRRQPNISD
60 70 80 90 100
QQVSALSYSD QIQQPLTNQV MPDIVMLQRR MPQTFRDPAT APLRKLSVDL
110 120 130 140 150
IKTYKHINEV YYAKKKRRHQ QGQGDDSSHK KERKVYNDGY DDDNYDYIVK
160 170 180 190 200
NGEKWMDRYE IDSLIGKGSF GQVVKAYDRV EQEWVAIKII KNKKAFLNQA
210 220 230 240 250
QIEVRLLELM NKHDTEMKYY IVHLKRHFMF RNHLCLVFEM LSYNLYDLLR
260 270 280 290 300
NTNFRGVSLN LTRKFAQQMC TALLFLATPE LSIIHCDLKP ENILLCNPKR
310 320 330 340 350
SAIKIVDFGS SCQLGQRIYQ YIQSRFYRSP EVLLGMPYDL AIDMWSLGCI
360 370 380 390 400
LVEMHTGEPL FSGANEVDQM NKIVEVLGIP PAHILDQAPK ARKFFEKLPD
410 420 430 440 450
GTWNLKKTKD GKREYKPPGT RKLHNILGVE TGGPGGRRAG ESGHTVADYL
460 470 480 490 500
KFKDLILRML DYDPKTRIQP YYALQHSFFK KTADEGTNTS NSVSTSPAME
510 520 530 540 550
QSQSSGTTSS TSSSSGGSSG TSNSGRARSD PTHQHRHSGG HFTAAVQAMD
560 570 580 590 600
CETHSPQVRQ QFPAPLGWSG TEAPTQVTVE THPVQETTFH VAPQQNALHH
610 620 630 640 650
HHGNSSHHHH HHHHHHHHHG QQALGNRTRP RVYNSPTNSS STQDSMEVGH
660 670 680 690 700
SHHSMTSLSS STTSSSTSSS STGNQGNQAY QNRPVAANTL DFGQNGAMDV
710 720 730 740 750
NLTVYSNPRQ ETGIAGHPTY QFSANTGPAH YMTEGHLTMR QGADREESPM
760 763
TGVCVQQSPV ASS

Data source: UniProt

Protein Map Collapse protein map

Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt


Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for CPTAC-2879 Collapse assay details

Data source: Panorama

Official Gene Symbol
DYRK1A
Peptide Sequence
IVEVLGIPPAHILDQAPK
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
373
Peptide End
390
CPTAC ID
CPTAC-2879
Peptide Molecular Mass
1,909.1037
Species
Homo Sapiens
Assay Type
Direct PRM
Matrix
Tumor Digest
Submitting Laboratory
Washington University in St. Louis
Submitting Lab PI
Reid Townsend

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
ThermoFisher, Q-Exactive
Internal Standard
25 fmol on column
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C and 15N at C-terminus K
LC
Easy-nLC 1000 Thermo Scientific
Column Packing
C18
Column Dimensions
75 µm x 50 cm
Flow Rate
300 nL/min

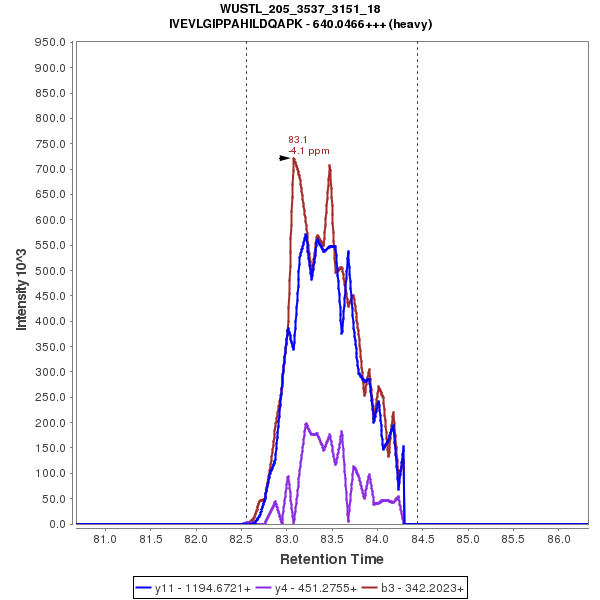

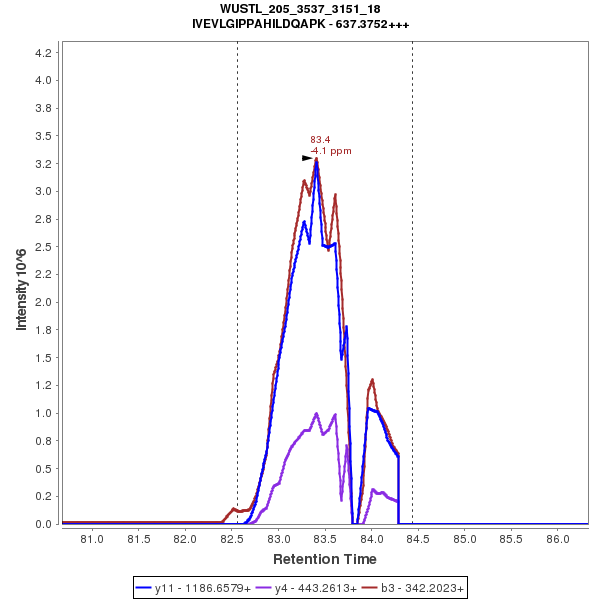

Chromatograms

Data source: Panorama

view larger image
view larger image
view larger image

Response Curves

Data source: Panorama

view larger image
view larger image
view larger image

Retrieving Data

Loader

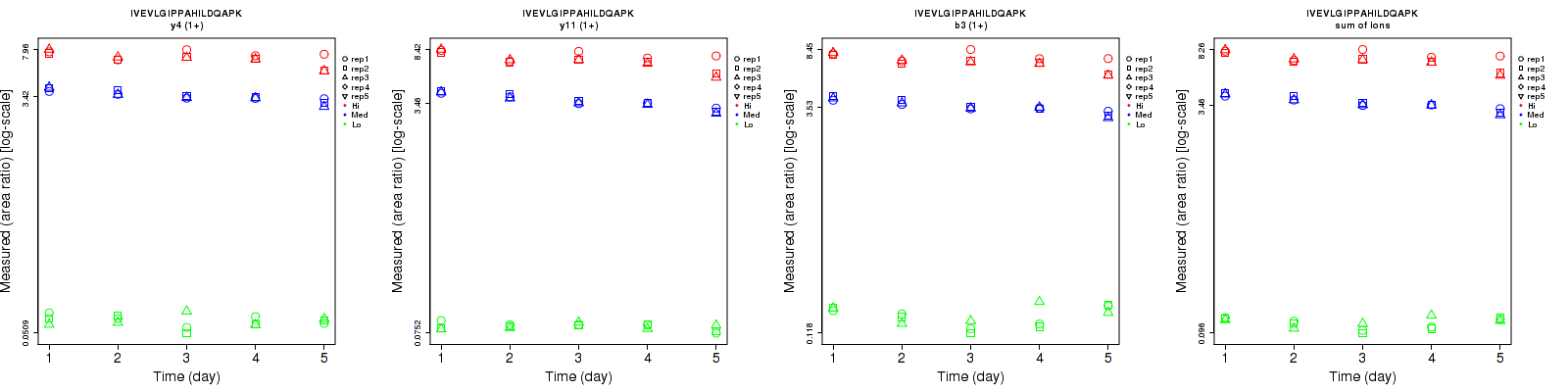

Repeatability

Data source: Panorama

view larger image
  Average intra-assay CV
(within day CV)		 Average inter-assay CV
(between day CV)		 Total CV
equation		 n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y4 (1+) 9.9 3.7 7.1 10.7 9.4 10.4 14.6 10.1 12.6 15 15 15
y11 (1+) 4.8 2.6 7.5 5.7 12 12 7.5 12.3 14.2 15 15 15
b3 (1+) 9.4 2.8 6.7 15.2 9.5 9.7 17.9 9.9 11.8 15 15 15
sum 5.9 2.6 7.1 8.7 10.5 10.7 10.5 10.8 12.8 15 15 15

Additional Resources and Comments

Resources
Download SOPs
View Peptide in Panorama
View Protein in Panorama
Comments
