Please include the following statement when referencing the CPTAC Assay Portal
We would like to acknowledge the National Cancer Institute’s Clinical Proteomic Tumor Analysis Consortium (CPTAC) Assay Portal (assays.cancer.gov) for developing assays and establishing criteria for the assays described in this publication.

Overview Data source: UniProt

Official Gene Symbol Other Aliases
MAPK10 JNK3, JNK3A, PRKM10, SAPK1B
Sequence Length (AA) Molecular Weight (Da)
464 52585
Protein Name
Mitogen-activated protein kinase 10
Sources
UniProt
PhosphoSitePlus ®
GeneCards
Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MSLHFLYYCS EPTLDVKIAF CQGFDKQVDV SYIAKHYNMS KSKVDNQFYS
60 70 80 90 100
VEVGDSTFTV LKRYQNLKPI GSGAQGIVCA AYDAVLDRNV AIKKLSRPFQ
110 120 130 140 150
NQTHAKRAYR ELVLMKCVNH KNIISLLNVF TPQKTLEEFQ DVYLVMELMD
160 170 180 190 200
ANLCQVIQME LDHERMSYLL YQMLCGIKHL HSAGIIHRDL KPSNIVVKSD
210 220 230 240 250
CTLKILDFGL ARTAGTSFMM TPYVVTRYYR APEVILGMGY KENVDIWSVG
260 270 280 290 300
CIMGEMVRHK ILFPGRDYID QWNKVIEQLG TPCPEFMKKL QPTVRNYVEN
310 320 330 340 350
RPKYAGLTFP KLFPDSLFPA DSEHNKLKAS QARDLLSKML VIDPAKRISV
360 370 380 390 400
DDALQHPYIN VWYDPAEVEA PPPQIYDKQL DEREHTIEEW KELIYKEVMN
410 420 430 440 450
SEEKTKNGVV KGQPSPSGAA VNSSESLPPS SSVNDISSMS TDQTLASDTD
460 464
SSLEASAGPL GCCR

Data source: UniProt


Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt



Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for CPTAC-2916 Collapse assay details

Data source: Panorama

Official Gene Symbol
MAPK10
Peptide Sequence
LFPDSLFPADSEHNK
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
312
Peptide End
326
CPTAC ID
CPTAC-2916
Peptide Molecular Mass
1,715.8155
Species
Homo Sapiens
Assay Type
Direct PRM
Matrix
Tumor Digest
Submitting Laboratory
Washington University in St. Louis
Submitting Lab PI
Reid Townsend

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
ThermoFisher, Q-Exactive
Internal Standard
25 fmol on column
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C and 15N at C-terminus K
LC
Easy-nLC 1000 Thermo Scientific
Column Packing
C18
Column Dimensions
75 µm x 50 cm
Flow Rate
300 nL/min

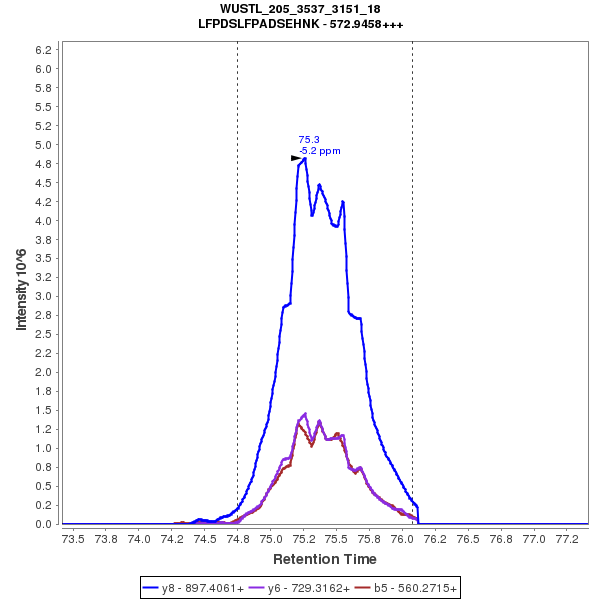

Chromatograms

Data source: Panorama


Response Curves

Data source: Panorama

Retrieving Data

Loader

Repeatability

Data source: Panorama

  Average intra-assay CV
(within day CV)
Average inter-assay CV
(between day CV)
Total CV
equation
n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y8 (1+) 9.6 8.2 6.4 8.8 8.9 9.1 13 12.1 11.1 15 15 15
y6 (1+) 13.6 8.7 5.1 14 9.2 8.5 19.5 12.7 9.9 15 15 15
b5 (1+) 9 8.1 6 8.9 8.7 8.5 12.7 11.9 10.4 15 15 15
sum 9.6 8.2 6 8.9 8.8 8.8 13.1 12 10.7 15 15 15


Additional Resources and Comments


Assay Details for CPTAC-2915 Collapse assay details

Data source: Panorama

Official Gene Symbol
MAPK10
Peptide Sequence
VDNQFYSVEVGDSTFTVLK
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
44
Peptide End
62
CPTAC ID
CPTAC-2915
Peptide Molecular Mass
2,147.0423
Species
Homo Sapiens
Assay Type
Direct PRM
Matrix
Tumor Digest
Submitting Laboratory
Washington University in St. Louis
Submitting Lab PI
Reid Townsend

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
ThermoFisher, Q-Exactive
Internal Standard
25 fmol on column
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C and 15N at C-terminus K
LC
Easy-nLC 1000 Thermo Scientific
Column Packing
C18
Column Dimensions
75 µm x 50 cm
Flow Rate
300 nL/min

Chromatograms

Data source: Panorama


Response Curves

Data source: Panorama

Retrieving Data

Loader

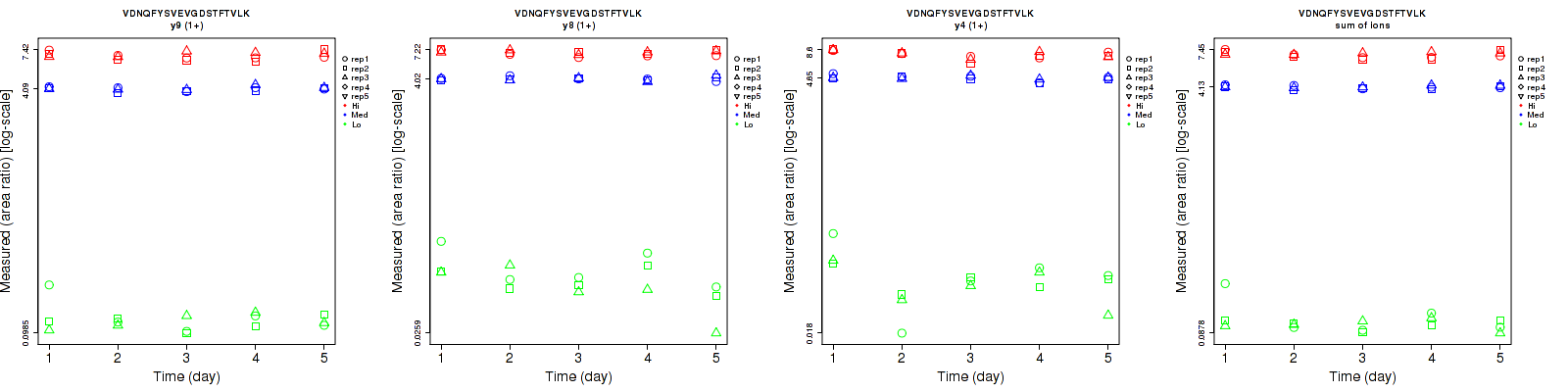

Repeatability

Data source: Panorama

  Average intra-assay CV
(within day CV)
Average inter-assay CV
(between day CV)
Total CV
equation
n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y9 (1+) 15.7 2.5 5.7 17.8 3.1 5.6 23.7 4 8 15 15 15
y8 (1+) 30.4 3.3 4.5 36.1 3.7 4.4 47.2 5 6.3 15 15 15
y4 (1+) 29.6 3.9 4.5 46.8 5.2 8.7 55.4 6.5 9.8 15 15 15
sum 14.1 2.3 4.4 17 2.2 4.6 22.1 3.2 6.4 15 15 15


Additional Resources and Comments
