Please include the following statement when referencing the CPTAC Assay Portal
We would like to acknowledge the National Cancer Institute’s Clinical Proteomic Tumor Analysis Consortium (CPTAC) Assay Portal (assays.cancer.gov) for developing assays and establishing criteria for the assays described in this publication.

PRKDC

Previous Assay Next Assay
Available Assays

Overview Data source: UniProt

Official Gene Symbol Other Aliases
PRKDC HYRC, HYRC1
Sequence Length (AA) Molecular Weight (Da)
4128 469089
Protein Name
DNA-dependent protein kinase catalytic subunit
Sources
UniProt
PhosphoSitePlus ®
GeneCards 		Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MAGSGAGVRC SLLRLQETLS AADRCGAALA GHQLIRGLGQ ECVLSSSPAV
60 70 80 90 100
LALQTSLVFS RDFGLLVFVR KSLNSIEFRE CREEILKFLC IFLEKMGQKI
110 120 130 140 150
APYSVEIKNT CTSVYTKDRA AKCKIPALDL LIKLLQTFRS SRLMDEFKIG
160 170 180 190 200
ELFSKFYGEL ALKKKIPDTV LEKVYELLGL LGEVHPSEMI NNAENLFRAF
210 220 230 240 250
LGELKTQMTS AVREPKLPVL AGCLKGLSSL LCNFTKSMEE DPQTSREIFN
260 270 280 290 300
FVLKAIRPQI DLKRYAVPSA GLRLFALHAS QFSTCLLDNY VSLFEVLLKW
310 320 330 340 350
CAHTNVELKK AALSALESFL KQVSNMVAKN AEMHKNKLQY FMEQFYGIIR
360 370 380 390 400
NVDSNNKELS IAIRGYGLFA GPCKVINAKD VDFMYVELIQ RCKQMFLTQT
410 420 430 440 450
DTGDDRVYQM PSFLQSVASV LLYLDTVPEV YTPVLEHLVV MQIDSFPQYS
460 470 480 490 500
PKMQLVCCRA IVKVFLALAA KGPVLRNCIS TVVHQGLIRI CSKPVVLPKG
510 520 530 540 550
PESESEDHRA SGEVRTGKWK VPTYKDYVDL FRHLLSSDQM MDSILADEAF
560 570 580 590 600
FSVNSSSESL NHLLYDEFVK SVLKIVEKLD LTLEIQTVGE QENGDEAPGV
610 620 630 640 650
WMIPTSDPAA NLHPAKPKDF SAFINLVEFC REILPEKQAE FFEPWVYSFS
660 670 680 690 700
YELILQSTRL PLISGFYKLL SITVRNAKKI KYFEGVSPKS LKHSPEDPEK
710 720 730 740 750
YSCFALFVKF GKEVAVKMKQ YKDELLASCL TFLLSLPHNI IELDVRAYVP
760 770 780 790 800
ALQMAFKLGL SYTPLAEVGL NALEEWSIYI DRHVMQPYYK DILPCLDGYL
810 820 830 840 850
KTSALSDETK NNWEVSALSR AAQKGFNKVV LKHLKKTKNL SSNEAISLEE
860 870 880 890 900
IRIRVVQMLG SLGGQINKNL LTVTSSDEMM KSYVAWDREK RLSFAVPFRE
910 920 930 940 950
MKPVIFLDVF LPRVTELALT ASDRQTKVAA CELLHSMVMF MLGKATQMPE
960 970 980 990 1000
GGQGAPPMYQ LYKRTFPVLL RLACDVDQVT RQLYEPLVMQ LIHWFTNNKK
1010 1020 1030 1040 1050
FESQDTVALL EAILDGIVDP VDSTLRDFCG RCIREFLKWS IKQITPQQQE
1060 1070 1080 1090 1100
KSPVNTKSLF KRLYSLALHP NAFKRLGASL AFNNIYREFR EEESLVEQFV
1110 1120 1130 1140 1150
FEALVIYMES LALAHADEKS LGTIQQCCDA IDHLCRIIEK KHVSLNKAKK
1160 1170 1180 1190 1200
RRLPRGFPPS ASLCLLDLVK WLLAHCGRPQ TECRHKSIEL FYKFVPLLPG
1210 1220 1230 1240 1250
NRSPNLWLKD VLKEEGVSFL INTFEGGGCG QPSGILAQPT LLYLRGPFSL
1260 1270 1280 1290 1300
QATLCWLDLL LAALECYNTF IGERTVGALQ VLGTEAQSSL LKAVAFFLES
1310 1320 1330 1340 1350
IAMHDIIAAE KCFGTGAAGN RTSPQEGERY NYSKCTVVVR IMEFTTTLLN
1360 1370 1380 1390 1400
TSPEGWKLLK KDLCNTHLMR VLVQTLCEPA SIGFNIGDVQ VMAHLPDVCV
1410 1420 1430 1440 1450
NLMKALKMSP YKDILETHLR EKITAQSIEE LCAVNLYGPD AQVDRSRLAA
1460 1470 1480 1490 1500
VVSACKQLHR AGLLHNILPS QSTDLHHSVG TELLSLVYKG IAPGDERQCL
1510 1520 1530 1540 1550
PSLDLSCKQL ASGLLELAFA FGGLCERLVS LLLNPAVLST ASLGSSQGSV
1560 1570 1580 1590 1600
IHFSHGEYFY SLFSETINTE LLKNLDLAVL ELMQSSVDNT KMVSAVLNGM
1610 1620 1630 1640 1650
LDQSFRERAN QKHQGLKLAT TILQHWKKCD SWWAKDSPLE TKMAVLALLA
1660 1670 1680 1690 1700
KILQIDSSVS FNTSHGSFPE VFTTYISLLA DTKLDLHLKG QAVTLLPFFT
1710 1720 1730 1740 1750
SLTGGSLEEL RRVLEQLIVA HFPMQSREFP PGTPRFNNYV DCMKKFLDAL
1760 1770 1780 1790 1800
ELSQSPMLLE LMTEVLCREQ QHVMEELFQS SFRRIARRGS CVTQVGLLES
1810 1820 1830 1840 1850
VYEMFRKDDP RLSFTRQSFV DRSLLTLLWH CSLDALREFF STIVVDAIDV
1860 1870 1880 1890 1900
LKSRFTKLNE STFDTQITKK MGYYKILDVM YSRLPKDDVH AKESKINQVF
1910 1920 1930 1940 1950
HGSCITEGNE LTKTLIKLCY DAFTENMAGE NQLLERRRLY HCAAYNCAIS
1960 1970 1980 1990 2000
VICCVFNELK FYQGFLFSEK PEKNLLIFEN LIDLKRRYNF PVEVEVPMER
2010 2020 2030 2040 2050
KKKYIEIRKE AREAANGDSD GPSYMSSLSY LADSTLSEEM SQFDFSTGVQ
2060 2070 2080 2090 2100
SYSYSSQDPR PATGRFRRRE QRDPTVHDDV LELEMDELNR HECMAPLTAL
2110 2120 2130 2140 2150
VKHMHRSLGP PQGEEDSVPR DLPSWMKFLH GKLGNPIVPL NIRLFLAKLV
2160 2170 2180 2190 2200
INTEEVFRPY AKHWLSPLLQ LAASENNGGE GIHYMVVEIV ATILSWTGLA
2210 2220 2230 2240 2250
TPTGVPKDEV LANRLLNFLM KHVFHPKRAV FRHNLEIIKT LVECWKDCLS
2260 2270 2280 2290 2300
IPYRLIFEKF SGKDPNSKDN SVGIQLLGIV MANDLPPYDP QCGIQSSEYF
2310 2320 2330 2340 2350
QALVNNMSFV RYKEVYAAAA EVLGLILRYV MERKNILEES LCELVAKQLK
2360 2370 2380 2390 2400
QHQNTMEDKF IVCLNKVTKS FPPLADRFMN AVFFLLPKFH GVLKTLCLEV
2410 2420 2430 2440 2450
VLCRVEGMTE LYFQLKSKDF VQVMRHRDDE RQKVCLDIIY KMMPKLKPVE
2460 2470 2480 2490 2500
LRELLNPVVE FVSHPSTTCR EQMYNILMWI HDNYRDPESE TDNDSQEIFK
2510 2520 2530 2540 2550
LAKDVLIQGL IDENPGLQLI IRNFWSHETR LPSNTLDRLL ALNSLYSPKI
2560 2570 2580 2590 2600
EVHFLSLATN FLLEMTSMSP DYPNPMFEHP LSECEFQEYT IDSDWRFRST
2610 2620 2630 2640 2650
VLTPMFVETQ ASQGTLQTRT QEGSLSARWP VAGQIRATQQ QHDFTLTQTA
2660 2670 2680 2690 2700
DGRSSFDWLT GSSTDPLVDH TSPSSDSLLF AHKRSERLQR APLKSVGPDF
2710 2720 2730 2740 2750
GKKRLGLPGD EVDNKVKGAA GRTDLLRLRR RFMRDQEKLS LMYARKGVAE
2760 2770 2780 2790 2800
QKREKEIKSE LKMKQDAQVV LYRSYRHGDL PDIQIKHSSL ITPLQAVAQR
2810 2820 2830 2840 2850
DPIIAKQLFS SLFSGILKEM DKFKTLSEKN NITQKLLQDF NRFLNTTFSF
2860 2870 2880 2890 2900
FPPFVSCIQD ISCQHAALLS LDPAAVSAGC LASLQQPVGI RLLEEALLRL
2910 2920 2930 2940 2950
LPAELPAKRV RGKARLPPDV LRWVELAKLY RSIGEYDVLR GIFTSEIGTK
2960 2970 2980 2990 3000
QITQSALLAE ARSDYSEAAK QYDEALNKQD WVDGEPTEAE KDFWELASLD
3010 3020 3030 3040 3050
CYNHLAEWKS LEYCSTASID SENPPDLNKI WSEPFYQETY LPYMIRSKLK
3060 3070 3080 3090 3100
LLLQGEADQS LLTFIDKAMH GELQKAILEL HYSQELSLLY LLQDDVDRAK
3110 3120 3130 3140 3150
YYIQNGIQSF MQNYSSIDVL LHQSRLTKLQ SVQALTEIQE FISFISKQGN
3160 3170 3180 3190 3200
LSSQVPLKRL LNTWTNRYPD AKMDPMNIWD DIITNRCFFL SKIEEKLTPL
3210 3220 3230 3240 3250
PEDNSMNVDQ DGDPSDRMEV QEQEEDISSL IRSCKFSMKM KMIDSARKQN
3260 3270 3280 3290 3300
NFSLAMKLLK ELHKESKTRD DWLVSWVQSY CRLSHCRSRS QGCSEQVLTV
3310 3320 3330 3340 3350
LKTVSLLDEN NVSSYLSKNI LAFRDQNILL GTTYRIIANA LSSEPACLAE
3360 3370 3380 3390 3400
IEEDKARRIL ELSGSSSEDS EKVIAGLYQR AFQHLSEAVQ AAEEEAQPPS
3410 3420 3430 3440 3450
WSCGPAAGVI DAYMTLADFC DQQLRKEEEN ASVIDSAELQ AYPALVVEKM
3460 3470 3480 3490 3500
LKALKLNSNE ARLKFPRLLQ IIERYPEETL SLMTKEISSV PCWQFISWIS
3510 3520 3530 3540 3550
HMVALLDKDQ AVAVQHSVEE ITDNYPQAIV YPFIISSESY SFKDTSTGHK
3560 3570 3580 3590 3600
NKEFVARIKS KLDQGGVIQD FINALDQLSN PELLFKDWSN DVRAELAKTP
3610 3620 3630 3640 3650
VNKKNIEKMY ERMYAALGDP KAPGLGAFRR KFIQTFGKEF DKHFGKGGSK
3660 3670 3680 3690 3700
LLRMKLSDFN DITNMLLLKM NKDSKPPGNL KECSPWMSDF KVEFLRNELE
3710 3720 3730 3740 3750
IPGQYDGRGK PLPEYHVRIA GFDERVTVMA SLRRPKRIII RGHDEREHPF
3760 3770 3780 3790 3800
LVKGGEDLRQ DQRVEQLFQV MNGILAQDSA CSQRALQLRT YSVVPMTSRL
3810 3820 3830 3840 3850
GLIEWLENTV TLKDLLLNTM SQEEKAAYLS DPRAPPCEYK DWLTKMSGKH
3860 3870 3880 3890 3900
DVGAYMLMYK GANRTETVTS FRKRESKVPA DLLKRAFVRM STSPEAFLAL
3910 3920 3930 3940 3950
RSHFASSHAL ICISHWILGI GDRHLNNFMV AMETGGVIGI DFGHAFGSAT
3960 3970 3980 3990 4000
QFLPVPELMP FRLTRQFINL MLPMKETGLM YSIMVHALRA FRSDPGLLTN
4010 4020 4030 4040 4050
TMDVFVKEPS FDWKNFEQKM LKKGGSWIQE INVAEKNWYP RQKICYAKRK
4060 4070 4080 4090 4100
LAGANPAVIT CDELLLGHEK APAFRDYVAV ARGSKDHNIR AQEPESGLSE
4110 4120 4128
ETQVKCLMDQ ATDPNILGRT WEGWEPWM

Data source: UniProt

Protein Map Collapse protein map

Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt


Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for CPTAC-2931 Collapse assay details

Data source: Panorama

Official Gene Symbol
PRKDC
Peptide Sequence
TVGALQVLGTEAQSSLLK
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
1275
Peptide End
1292
CPTAC ID
CPTAC-2931
Peptide Molecular Mass
1,814.0149
Species
Homo Sapiens
Assay Type
Direct PRM
Matrix
Tumor Digest
Submitting Laboratory
Washington University in St. Louis
Submitting Lab PI
Reid Townsend

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
ThermoFisher, Q-Exactive
Internal Standard
25 fmol on column
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C and 15N at C-terminus K
LC
Easy-nLC 1000 Thermo Scientific
Column Packing
C18
Column Dimensions
75 µm x 50 cm
Flow Rate
300 nL/min

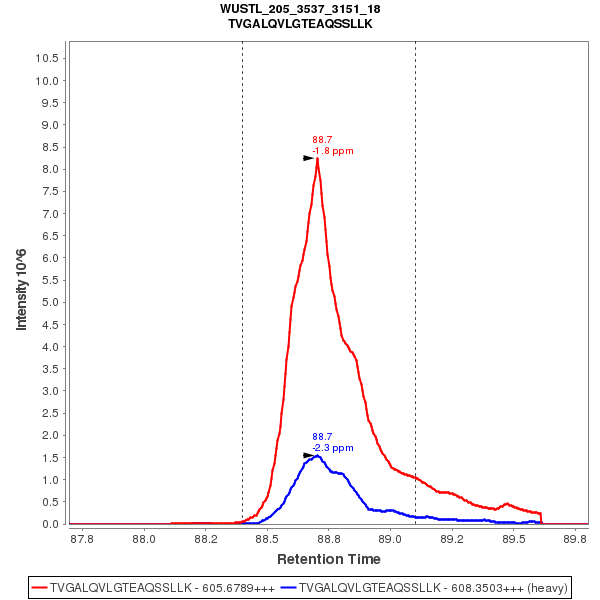

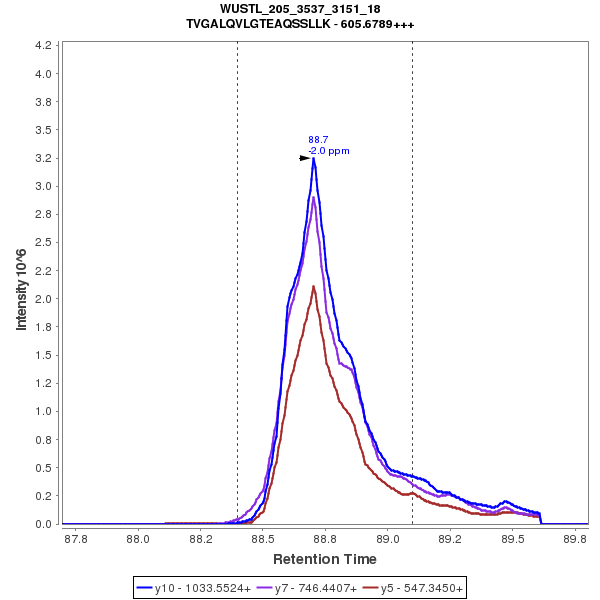

Chromatograms

Data source: Panorama

view larger image
view larger image
view larger image

Response Curves

Data source: Panorama

view larger image
view larger image
view larger image

Retrieving Data

Loader

Repeatability

Data source: Panorama

view larger image
  Average intra-assay CV
(within day CV)		 Average inter-assay CV
(between day CV)		 Total CV
equation		 n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y10 (1+) 7.8 11.1 12.8 12.4 10.6 15.3 14.6 15.3 19.9 15 15 15
y5 (1+) 8.2 9.5 11.7 14.2 10.7 14.9 16.4 14.3 18.9 15 15 15
y7 (1+) 7.5 9.5 11.7 13.6 9.5 14.3 15.5 13.4 18.5 15 15 15
sum 7.2 10.2 12 12.8 10.1 14.8 14.7 14.4 19.1 15 15 15

Additional Resources and Comments

Resources
Download SOPs
View Peptide in Panorama
View Protein in Panorama
Comments
