DDR2

Previous Assay Next Assay
Available Assays

Overview Data source: UniProt

Official Gene Symbol Other Aliases
DDR2 NTRKR3, TKT, TYRO10
Sequence Length (AA) Molecular Weight (Da)
855 96736
Protein Name
Discoidin domain-containing receptor 2
Sources
UniProt
PhosphoSitePlus ®
GeneCards 		Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MILIPRMLLV LFLLLPILSS AKAQVNPAIC RYPLGMSGGQ IPDEDITASS
60 70 80 90 100
QWSESTAAKY GRLDSEEGDG AWCPEIPVEP DDLKEFLQID LHTLHFITLV
110 120 130 140 150
GTQGRHAGGH GIEFAPMYKI NYSRDGTRWI SWRNRHGKQV LDGNSNPYDI
160 170 180 190 200
FLKDLEPPIV ARFVRFIPVT DHSMNVCMRV ELYGCVWLDG LVSYNAPAGQ
210 220 230 240 250
QFVLPGGSII YLNDSVYDGA VGYSMTEGLG QLTDGVSGLD DFTQTHEYHV
260 270 280 290 300
WPGYDYVGWR NESATNGYIE IMFEFDRIRN FTTMKVHCNN MFAKGVKIFK
310 320 330 340 350
EVQCYFRSEA SEWEPNAISF PLVLDDVNPS ARFVTVPLHH RMASAIKCQY
360 370 380 390 400
HFADTWMMFS EITFQSDAAM YNNSEALPTS PMAPTTYDPM LKVDDSNTRI
410 420 430 440 450
LIGCLVAIIF ILLAIIVIIL WRQFWQKMLE KASRRMLDDE MTVSLSLPSD
460 470 480 490 500
SSMFNNNRSS SPSEQGSNST YDRIFPLRPD YQEPSRLIRK LPEFAPGEEE
510 520 530 540 550
SGCSGVVKPV QPSGPEGVPH YAEADIVNLQ GVTGGNTYSV PAVTMDLLSG
560 570 580 590 600
KDVAVEEFPR KLLTFKEKLG EGQFGEVHLC EVEGMEKFKD KDFALDVSAN
610 620 630 640 650
QPVLVAVKML RADANKNARN DFLKEIKIMS RLKDPNIIHL LAVCITDDPL
660 670 680 690 700
CMITEYMENG DLNQFLSRHE PPNSSSSDVR TVSYTNLKFM ATQIASGMKY
710 720 730 740 750
LSSLNFVHRD LATRNCLVGK NYTIKIADFG MSRNLYSGDY YRIQGRAVLP
760 770 780 790 800
IRWMSWESIL LGKFTTASDV WAFGVTLWET FTFCQEQPYS QLSDEQVIEN
810 820 830 840 850
TGEFFRDQGR QTYLPQPAIC PDSVYKLMLS CWRRDTKNRP SFQEIHLLLL
855
QQGDE

Data source: UniProt

Protein Map Collapse protein map

Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt


Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for CPTAC-3009 Collapse assay details

Data source: Panorama

Official Gene Symbol
DDR2
Peptide Sequence
DFALDVSANQPVLVAVK
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
592
Peptide End
608
CPTAC ID
CPTAC-3009
Peptide Molecular Mass
1,784.9673
Species
Homo Sapiens
Assay Type
Direct PRM
Matrix
Tumor Digest
Submitting Laboratory
Washington University in St. Louis
Submitting Lab PI
Reid Townsend

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
ThermoFisher, Q-Exactive
Internal Standard
25 fmol on column
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C and 15N at C-terminus K
LC
Easy-nLC 1000 Thermo Scientific
Column Packing
C18
Column Dimensions
75 µm x 50 cm
Flow Rate
300 nL/min

Chromatograms

Data source: Panorama

view larger image
view larger image
view larger image

Response Curves

Data source: Panorama

view larger image
view larger image
view larger image

Retrieving Data

Loader

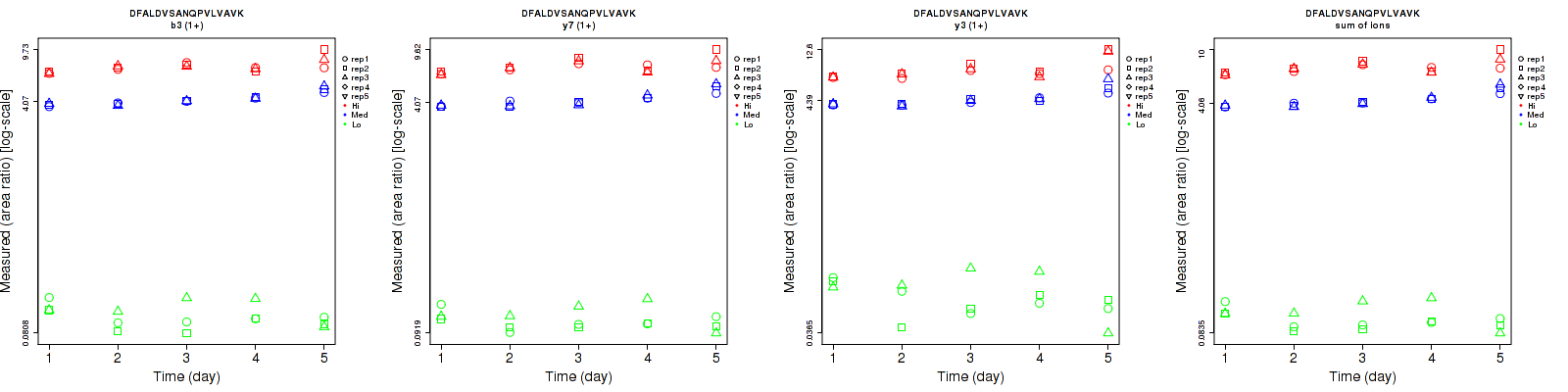

Repeatability

Data source: Panorama

view larger image
  Average intra-assay CV
(within day CV)		 Average inter-assay CV
(between day CV)		 Total CV
equation		 n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
b3 (1+) 17.9 2.4 5.4 18.1 11.4 10.6 25.5 11.6 11.9 15 15 15
y7 (1+) 17.1 3.9 6.3 14.8 13.1 11.1 22.6 13.7 12.8 15 15 15
y3 (1+) 34.8 5.1 8 35.4 16.7 19.1 49.6 17.5 20.7 15 15 15
sum 18.5 3 5.7 17.5 13 11.5 25.5 13.3 12.8 15 15 15

Additional Resources and Comments

Resources
Download SOPs
View Peptide in Panorama
View Protein in Panorama
Comments
