Please include the following statement when referencing the CPTAC Assay Portal
We would like to acknowledge the National Cancer Institute’s Clinical Proteomic Tumor Analysis Consortium (CPTAC) Assay Portal (assays.cancer.gov) for developing assays and establishing criteria for the assays described in this publication.

HAVCR2

Previous Assay Next Assay
Available Assays

Overview Data source: UniProt

Official Gene Symbol Other Aliases
HAVCR2 TIM3, TIMD3
Sequence Length (AA) Molecular Weight (Da)
301 33394
Protein Name
Hepatitis A virus cellular receptor 2
Sources
UniProt
PhosphoSitePlus ®
GeneCards 		Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MFSHLPFDCV LLLLLLLLTR SSEVEYRAEV GQNAYLPCFY TPAAPGNLVP
60 70 80 90 100
VCWGKGACPV FECGNVVLRT DERDVNYWTS RYWLNGDFRK GDVSLTIENV
110 120 130 140 150
TLADSGIYCC RIQIPGIMND EKFNLKLVIK PAKVTPAPTR QRDFTAAFPR
160 170 180 190 200
MLTTRGHGPA ETQTLGSLPD INLTQISTLA NELRDSRLAN DLRDSGATIR
210 220 230 240 250
IGIYIGAGIC AGLALALIFG ALIFKWYSHS KEKIQNLSLI SLANLPPSGL
260 270 280 290 300
ANAVAEGIRS EENIYTIEEN VYEVEEPNEY YCYVSSRQQP SQPLGCRFAM
301
P

Data source: UniProt

Protein Map Collapse protein map

Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt


Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for CPTAC-5984 Collapse assay details

Data source: Panorama

Official Gene Symbol
HAVCR2
Peptide Modified Sequence
GAC[+57.021464]PVFEC[+57.021464]GNVVLR
Modification Type
Carbamidomethyl (C)
Protein - Site of Modification
N/A
Peptide - Site of Modification
4
Peptide Start
56
Peptide End
69
CPTAC ID
CPTAC-5984
Peptide Molecular Mass
1,576.7490
Species
Homo sapiens (Human)
Assay Type
Enrichment MRM
Enrichment Method
peptide immunoaffinity
Matrix
FFPE tumor tissue lysate pool
Submitting Laboratory
Fred Hutchinson Cancer Research Center
Submitting Lab PI
Amanda Paulovich

Publication

View Details (opens in a new window)

Targeted Mass Spectrometry Enables Multiplexed Quantification of Immunomodulatory Proteins in Clinical Biospecimens.Whiteaker JR, Lundeen RA, Zhao L, Schoenherr RM, Burian A, Huang D, Voytovich U, Wang T, Kennedy JJ, Ivey RG, Lin C, Murillo OD, Lorentzen TD, Thiagarajan M, Colantonio S, Caceres TW, Roberts RR, Knotts JG, Reading JJ, Kaczmarczyk JA, Richardson CW, Garcia-Buntley SS, Bocik W, Hewitt SM, Murray KE, Do N, Brophy M, Wilz SW, Yu H, Ajjarapu S, Boja E, Hiltke T, Rodriguez H, Paulovich AG.Front Immunol. 2021 Nov 11;12:765898. doi: 10.3389/fimmu.2021.765898. eCollection 2021.PMID: 34858420

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
QTRAP 5500
Internal Standard
peptide
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C and 15N at C-terminus R
LC
Eksigent nanoLC 425
Column Packing
3 µm ChromXP C18EP, 120 Å
Column Dimensions
150 x 0.3 mm
Flow Rate
0.3 µL/min

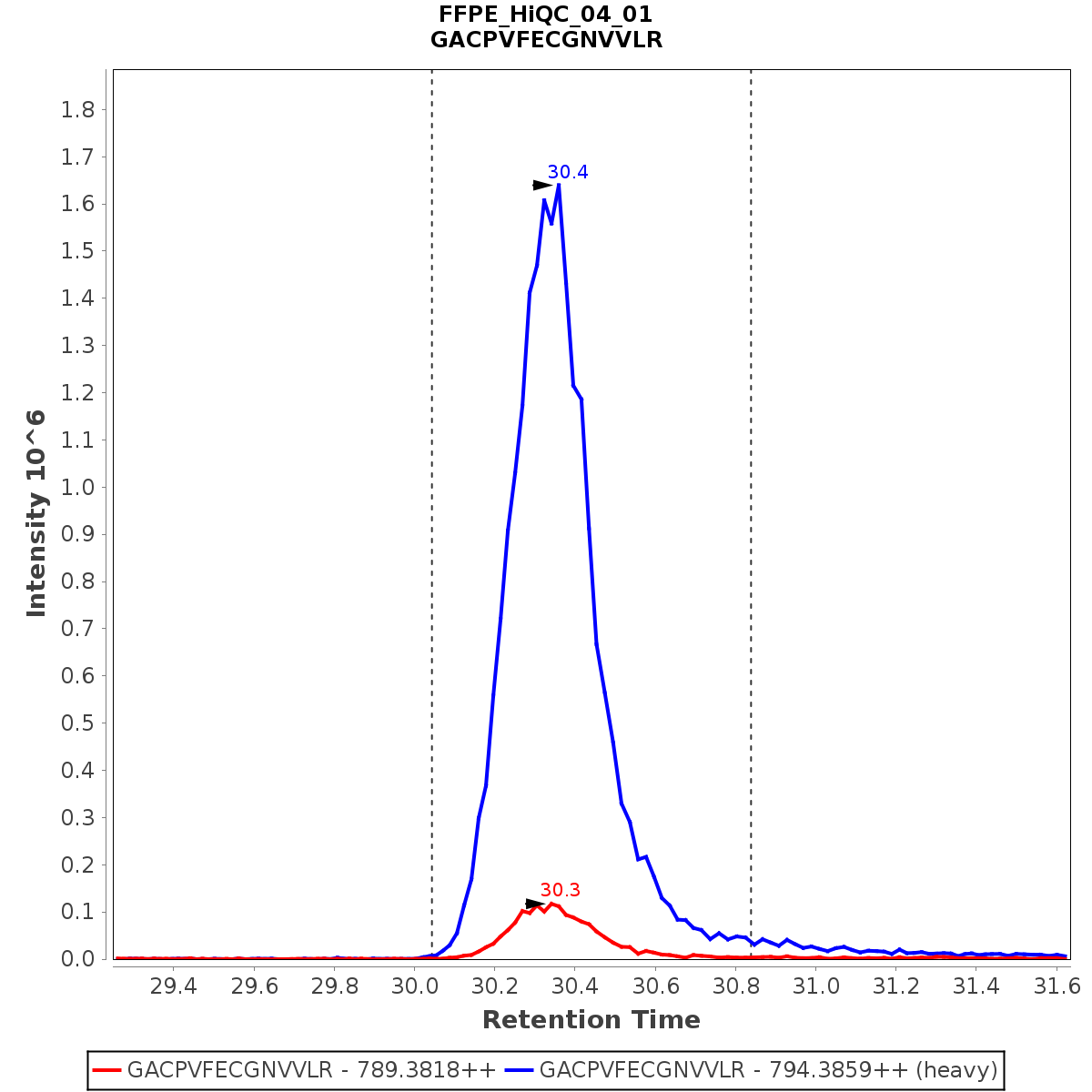

Chromatograms

Data source: Panorama

view larger image
view larger image
view larger image

Response Curves

Data source: Panorama

view larger image
view larger image
view larger image

Retrieving Data

Loader

Repeatability

Data source: Panorama

view larger image
  Average intra-assay CV
(within day CV)		 Average inter-assay CV
(between day CV)		 Total CV
equation		 n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
b6 (1+) 13.2 10 5 14.4 16.3 20.2 19.5 19.1 20.8 13 25 14
b5 (1+) 13.3 8.5 5.1 25.5 15.6 22.4 28.8 17.8 23 13 25 14
y3 (1+) 12.7 9 5.8 9.2 15 14.4 15.7 17.5 15.5 13 25 14
y7 (1+) 8.6 9 6.2 10.9 15 13.8 13.9 17.5 15.1 13 25 14
y8 (1+) 13 10.5 4.8 14.5 16.5 15.3 19.5 19.6 16 13 25 14
y9 (1+) 5.4 8.2 7.7 11.7 20.9 22.7 12.9 22.5 24 13 25 14
sum 6.8 5.9 3.5 11.5 15.2 17.4 13.4 16.3 17.7 13 25 14

Additional Resources and Comments

Resources
Download SOPs
View Peptide in Panorama
View Protein in Panorama
View in CPTC Antibody Portal
Comments
