Please include the following statement when referencing the CPTAC Assay Portal
We would like to acknowledge the National Cancer Institute’s Clinical Proteomic Tumor Analysis Consortium (CPTAC) Assay Portal (assays.cancer.gov) for developing assays and establishing criteria for the assays described in this publication.

Overview Data source: UniProt

Official Gene Symbol Other Aliases
NUAK2 OMPHK2, SNARK
Sequence Length (AA) Molecular Weight (Da)
628 69612
Protein Name
NUAK family SNF1-like kinase 2
Sources
UniProt
PhosphoSitePlus ®
GeneCards
Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MESLVFARRS GPTPSAAELA RPLAEGLIKS PKPLMKKQAV KRHHHKHNLR
60 70 80 90 100
HRYEFLETLG KGTYGKVKKA RESSGRLVAI KSIRKDKIKD EQDLMHIRRE
110 120 130 140 150
IEIMSSLNHP HIIAIHEVFE NSSKIVIVME YASRGDLYDY ISERQQLSER
160 170 180 190 200
EARHFFRQIV SAVHYCHQNR VVHRDLKLEN ILLDANGNIK IADFGLSNLY
210 220 230 240 250
HQGKFLQTFC GSPLYASPEI VNGKPYTGPE VDSWSLGVLL YILVHGTMPF
260 270 280 290 300
DGHDHKILVK QISNGAYREP PKPSDACGLI RWLLMVNPTR RATLEDVASH
310 320 330 340 350
WWVNWGYATR VGEQEAPHEG GHPGSDSARA SMADWLRRSS RPLLENGAKV
360 370 380 390 400
CSFFKQHAPG GGSTTPGLER QHSLKKSRKE NDMAQSLHSD TADDTAHRPG
410 420 430 440 450
KSNLKLPKGI LKKKVSASAE GVQEDPPELS PIPASPGQAA PLLPKKGILK
460 470 480 490 500
KPRQRESGYY SSPEPSESGE LLDAGDVFVS GDPKEQKPPQ ASGLLLHRKG
510 520 530 540 550
ILKLNGKFSQ TALELAAPTT FGSLDELAPP RPLARASRPS GAVSEDSILS
560 570 580 590 600
SESFDQLDLP ERLPEPPLRG CVSVDNLTGL EEPPSEGPGS CLRRWRQDPL
610 620 628
GDSCFSLTDC QEVTATYRQA LRVCSKLT

Data source: UniProt


Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt



Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for non-CPTAC-2947 Collapse assay details

Data source: Panorama

Official Gene Symbol
NUAK2
Peptide Sequence
EQKPPQASGLLLHR
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
485
Peptide End
498
CPTAC ID
non-CPTAC-2947
Peptide Molecular Mass
1,572.8736
Species
Homo Sapiens
Assay Type
Direct PRM
Matrix
Tumor Digest
Submitting Laboratory
Washington University in St. Louis
Submitting Lab PI
Reid Townsend

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
ThermoFisher, Q-Exactive
Internal Standard
25 fmol on column
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C and 15N at C-terminus R
LC
Easy-nLC 1000 Thermo Scientific
Column Packing
C18
Column Dimensions
75 µm x 50 cm
Flow Rate
300 nL/min

Chromatograms

Data source: Panorama

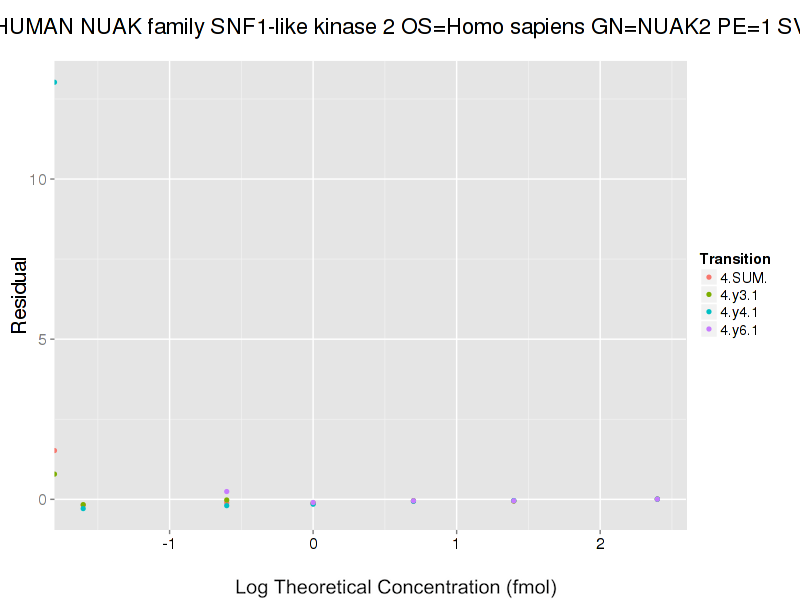

Response Curves

Data source: Panorama

Retrieving Data

Loader

Repeatability

Data source: Panorama

  Average intra-assay CV
(within day CV)
Average inter-assay CV
(between day CV)
Total CV
equation
n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y6 (1+) 7.4 7.2 5.6 9.8 6.8 6.9 12.3 9.9 8.9 15 15 15
y3 (1+) 2.9 5.8 4 9.8 5.4 6 10.2 7.9 7.2 15 15 15
y4 (1+) 3 5.5 4.9 11.2 6 5.1 11.6 8.1 7.1 15 15 15
sum 3.2 5.7 4.3 10.2 5.6 5.5 10.7 8 7 15 15 15


Additional Resources and Comments


Assay Details for CPTAC-2844 Collapse assay details

Data source: Panorama

Official Gene Symbol
NUAK2
Peptide Sequence
IADFGLSNLYHQGK
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
191
Peptide End
204
CPTAC ID
CPTAC-2844
Peptide Molecular Mass
1,561.7889
Species
Homo sapiens (Human)
Assay Type
Direct PRM
Matrix
Tumor Digest
Submitting Laboratory
Washington University in St. Louis
Submitting Lab PI
Reid Townsend

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
ThermoFisher, Q-Exactive™
Internal Standard
25 fmol on column
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C and 15N at C-terminus K
LC
EASY-nLC™ 1000 Thermo Scientific
Column Packing
C18
Column Dimensions
75 µm x 50 cm
Flow Rate
300 nl/min

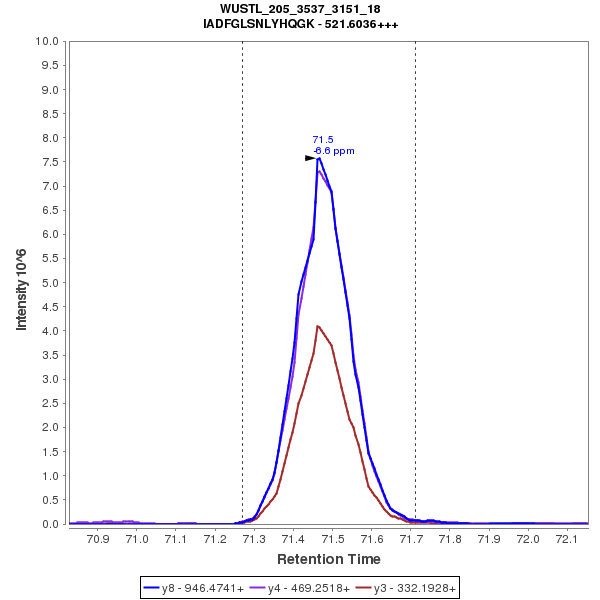

Chromatograms

Data source: Panorama

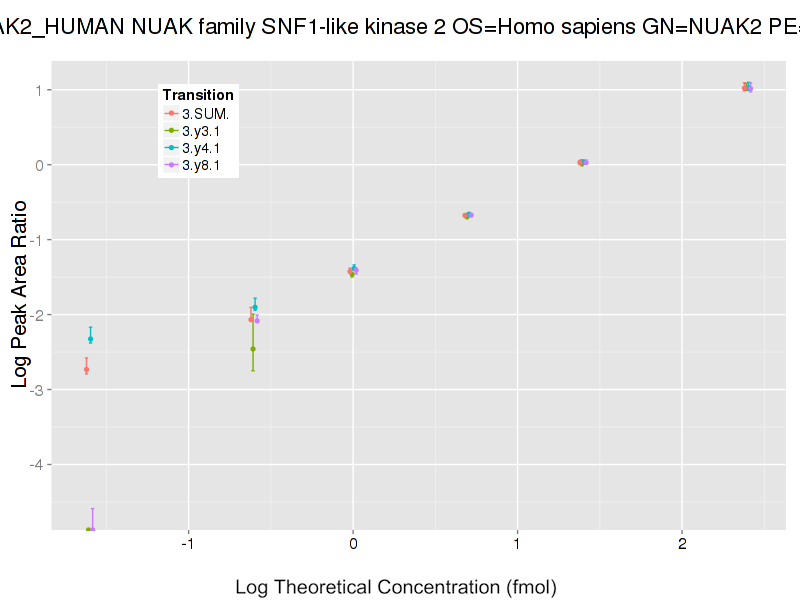

Response Curves

Data source: Panorama

Retrieving Data

Loader

Repeatability

Data source: Panorama

  Average intra-assay CV
(within day CV)
Average inter-assay CV
(between day CV)
Total CV
equation
n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y8 (1+) 16.4 5.6 6.4 19.6 6.1 7.7 25.6 8.3 10 15 15 15
y4 (1+) 20.7 4.6 5 25.8 5.4 7 33.1 7.1 8.6 15 15 15
y3 (1+) 45.7 4.9 5.1 49.3 5 7.2 67.2 7 8.8 15 15 15
sum 15.1 4.4 5.2 21.2 4.8 6.9 26 6.5 8.6 15 15 15


Additional Resources and Comments
