Overview Data source: UniProt

Official Gene Symbol Other Aliases
Itm2b N/A
Sequence Length (AA) Molecular Weight (Da)
266 30260
Protein Name
Integral membrane protein 2B
Sources
UniProt
PhosphoSitePlus ®
GeneCards
Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MVKVTFNSAL AQKEAKKDEP KSSEEALIVP PDAVAVDCKD PGDVVPVGQR
60 70 80 90 100
RAWCWCMCFG LAFMLAGVIL GGAYLYKYFA LQPDDVYYCG LKYIKDDVIL
110 120 130 140 150
NEPSADAPAA RYQTIEENIK IFEEDAVEFI SVPVPEFADS DPANIVHDFN
160 170 180 190 200
KKLTAYLDLN LDKCYVIPLN TSIVMPPKNL LELLINIKAG TYLPQSYLIH
210 220 230 240 250
EHMVITDRIE NVDNLGFFIY RLCHDKETYK LQRRETIRGI QKREASNCFT
260 266
IRHFENKFAV ETLICS

Data source: UniProt


Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt



Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for non-CPTAC-3585 Collapse assay details

Data source: Panorama

Official Gene Symbol
Itm2b
Peptide Sequence
NLLELLINIK
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
179
Peptide End
188
CPTAC ID
non-CPTAC-3585
Peptide Molecular Mass
1,181.7384
Species
Mus musculus (Mouse)
Assay Type
Direct MRM
Matrix
Plasma
Submitting Laboratory
UVic-Genome BC Proteomics Centre
Submitting Lab PI
Christoph Borchers

Publication

View Details (opens in a new window)

Molecular phenotyping of laboratory mouse strains using 500 multiple reaction monitoring mass spectrometry plasma assays. Michaud SA, Sinclair NJ, Petrošová H, Palmer AL, Pistawka AJ, Zhang S, Hardie DB, Mohammed Y Eshghi A1, Richard VR, Sickmann A, Borchers CH. Commun Biol. 2018 Jun 27;1:78. doi: 10.1038/s42003-018-0087-6. eCollection 2018.


Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
Agilent 6490/6495 QQQ
Internal Standard
synthetic peptide
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C and 15N at C-terminus K
LC
1290 LC (Agilent)
Column Packing
Zorbax Eclipse Plus C18, 1.8 µm
Column Dimensions
2.1 x 150 mm
Flow Rate
400 µL/min

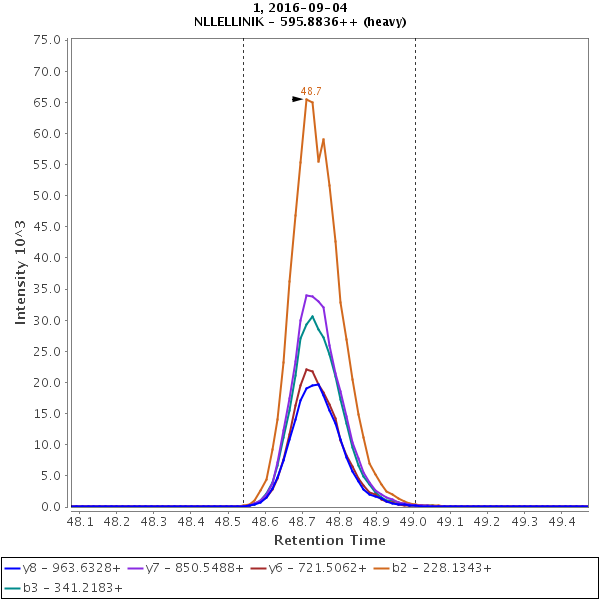

Chromatograms

Data source: Panorama


Response Curves

Data source: Panorama

Retrieving Data

Loader

Repeatability

Data source: Panorama

  Average intra-assay CV
(within day CV)
Average inter-assay CV
(between day CV)
Total CV
equation
n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
b3 (1+) 3.1 2.8 3.2 10.7 10.4 7.1 11.1 10.8 7.8 15 15 15
b2 (1+) 3.4 3.5 2.2 8.6 10.1 7.8 9.2 10.7 8.1 15 15 15
y6 (1+) 3.1 2.6 2.7 9.2 12 7.1 9.7 12.3 7.6 15 15 15
y7 (1+) 3 3.5 2.2 7.9 10.4 7.9 8.5 11 8.2 15 15 15
y8 (1+) 1.9 1.9 2.1 10.2 10.1 6.6 10.4 10.3 6.9 15 15 15
sum 1.5 1.7 1.4 8.8 10.1 7.1 8.9 10.2 7.2 15 15 15


Additional Resources and Comments
