Overview Data source: UniProt

Official Gene Symbol Other Aliases
Rps23 N/A
Sequence Length (AA) Molecular Weight (Da)
143 15808
Protein Name
40S ribosomal protein S23
Sources
UniProt
PhosphoSitePlus ®
GeneCards
Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MGKCRGLRTA RKLRSHRRDQ KWHDKQYKKA HLGTALKANP FGGASHAKGI
60 70 80 90 100
VLEKVGVEAK QPNSAIRKCV RVQLIKNGKK ITAFVPNDGC LNFIEENDEV
110 120 130 140 143
LVAGFGRKGH AVGDIPGVRF KVVKVANVSL LALYKGKKER PRS

Data source: UniProt


Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt



Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for non-CPTAC-3670 Collapse assay details

Data source: Panorama

Official Gene Symbol
Rps23
Peptide Sequence
GHAVGDIPGVR
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
109
Peptide End
119
CPTAC ID
non-CPTAC-3670
Peptide Molecular Mass
1,076.5727
Species
Mus musculus (Mouse)
Assay Type
Direct MRM
Matrix
Plasma
Submitting Laboratory
UVic-Genome BC Proteomics Centre
Submitting Lab PI
Christoph Borchers

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
Agilent 6490/6495 QQQ
Internal Standard
synthetic peptide
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C and 15N at C-terminus R
LC
1290 LC (Agilent)
Column Packing
Zorbax Eclipse Plus C18, 1.8 µm
Column Dimensions
2.1 x 150 mm
Flow Rate
400 µL/min

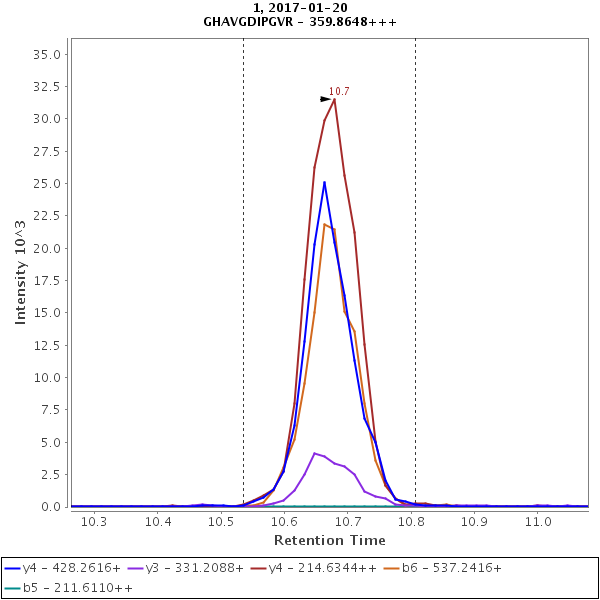

Chromatograms

Data source: Panorama


Response Curves

Data source: Panorama

Retrieving Data

Loader

Repeatability

Data source: Panorama

  Average intra-assay CV
(within day CV)
Average inter-assay CV
(between day CV)
Total CV
equation
n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
b5 (2+) 86.5 112.7 95.9 132.2 141.2 100.6 158 180.7 139 15 15 15
b6 (1+) 12.1 11 6.7 12.5 8.3 8.5 17.4 13.8 10.8 15 15 15
y4 (2+) 10.3 6 2.8 10 5.2 5.3 14.4 7.9 6 15 15 15
y3 (1+) 28.5 11.9 6.2 23.1 13.9 8.1 36.7 18.3 10.2 15 15 15
y4 (1+) 10.9 5.5 6.3 9.8 5.8 6.2 14.7 8 8.8 15 15 15
sum 6.4 2.6 2.8 7.1 2.5 4.7 9.6 3.6 5.5 15 15 15
