Please include the following statement when referencing the CPTAC Assay Portal
We would like to acknowledge the National Cancer Institute’s Clinical Proteomic Tumor Analysis Consortium (CPTAC) Assay Portal (assays.cancer.gov) for developing assays and establishing criteria for the assays described in this publication.

ERCC2

Previous Assay Next Assay
Available Assays

Overview Data source: UniProt

Official Gene Symbol Other Aliases
ERCC2 XPD, XPDC
Sequence Length (AA) Molecular Weight (Da)
760 86909
Protein Name
General transcription and DNA repair factor IIH helicase subunit XPD
Sources
UniProt
PhosphoSitePlus ®
GeneCards 		Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MKLNVDGLLV YFPYDYIYPE QFSYMRELKR TLDAKGHGVL EMPSGTGKTV
60 70 80 90 100
SLLALIMAYQ RAYPLEVTKL IYCSRTVPEI EKVIEELRKL LNFYEKQEGE
110 120 130 140 150
KLPFLGLALS SRKNLCIHPE VTPLRFGKDV DGKCHSLTAS YVRAQYQHDT
160 170 180 190 200
SLPHCRFYEE FDAHGREVPL PAGIYNLDDL KALGRRQGWC PYFLARYSIL
210 220 230 240 250
HANVVVYSYH YLLDPKIADL VSKELARKAV VVFDEAHNID NVCIDSMSVN
260 270 280 290 300
LTRRTLDRCQ GNLETLQKTV LRIKETDEQR LRDEYRRLVE GLREASAARE
310 320 330 340 350
TDAHLANPVL PDEVLQEAVP GSIRTAEHFL GFLRRLLEYV KWRLRVQHVV
360 370 380 390 400
QESPPAFLSG LAQRVCIQRK PLRFCAERLR SLLHTLEITD LADFSPLTLL
410 420 430 440 450
ANFATLVSTY AKGFTIIIEP FDDRTPTIAN PILHFSCMDA SLAIKPVFER
460 470 480 490 500
FQSVIITSGT LSPLDIYPKI LDFHPVTMAT FTMTLARVCL CPMIIGRGND
510 520 530 540 550
QVAISSKFET REDIAVIRNY GNLLLEMSAV VPDGIVAFFT SYQYMESTVA
560 570 580 590 600
SWYEQGILEN IQRNKLLFIE TQDGAETSVA LEKYQEACEN GRGAILLSVA
610 620 630 640 650
RGKVSEGIDF VHHYGRAVIM FGVPYVYTQS RILKARLEYL RDQFQIREND
660 670 680 690 700
FLTFDAMRHA AQCVGRAIRG KTDYGLMVFA DKRFARGDKR GKLPRWIQEH
710 720 730 740 750
LTDANLNLTV DEGVQVAKYF LRQMAQPFHR EDQLGLSLLS LEQLESEETL
760
KRIEQIAQQL

Data source: UniProt

Protein Map Collapse protein map

Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt


Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for CPTAC-6071 Collapse assay details

Data source: Panorama

Official Gene Symbol
ERCC2
Peptide Sequence
EVPLPAGIYNLDDLK
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
167
Peptide End
181
CPTAC ID
CPTAC-6071
Peptide Molecular Mass
1,655.8770
Species
Human
Assay Type
Enrichment MRM
Enrichment Method
peptide immunoaffinity
Matrix
FFPE lung tumor tissue lysate pool
Submitting Laboratory
Fred Hutchinson Cancer Research Center
Submitting Lab PI
Amanda Paulovich

Publication

View Details (opens in a new window)

Whiteaker JR, Zhao L, Schoenherr RM, Huang D, Lundeen RA, Voytovich U, Kennedy JJ, Ivey RG, Lin C, Murillo OD, Lorentzen TD, Colantonio S, Caceres TW, Roberts RR, Knotts JG, Reading JJ, Perry CD, Richardson CW, Garcia-Buntley SS, Bocik W, Hewitt SM, Chowdhury S, Vandermeer J, Smith SD, Gopal AK, Ramchurren N, Fling SP, Wang P, Paulovich AG. A multiplexed assay for quantifying immunomodulatory proteins supports correlative studies in immunotherapy clinical trials. Front Oncol. 2023 May 2;13:1168710. doi: 10.3389/fonc.2023.1168710. PMID: 37205196; PMCID: PMC10185886.

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
QTRAP 5500
Internal Standard
peptide
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C and 15N at C-terminus K
LC
Eksigent nanoLC 425
Column Packing
3 µm ChromXP C18EP, 120 Å
Column Dimensions
150 x 0.075 mm
Flow Rate
0.3 µL/min

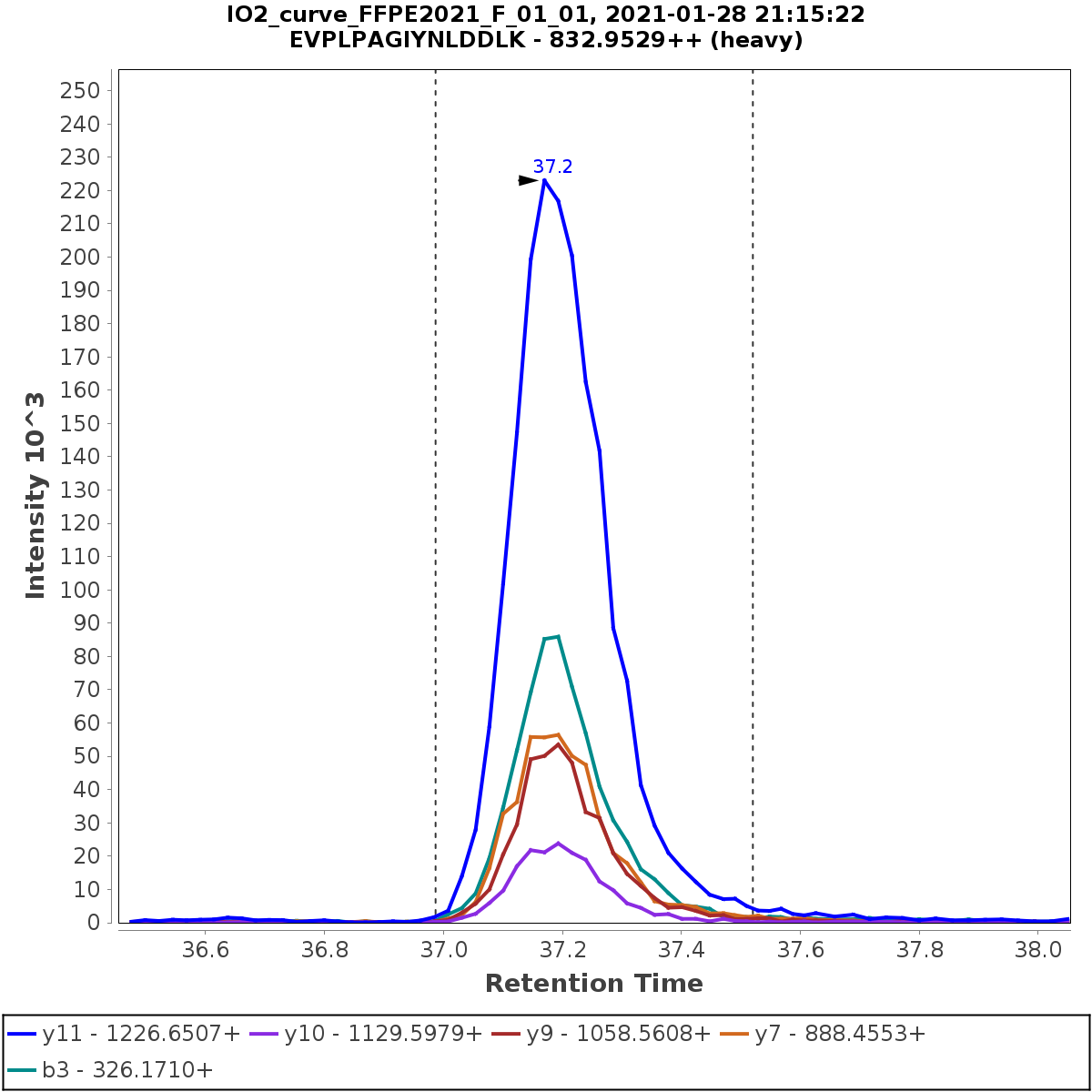

Chromatograms

Data source: Panorama

view larger image
view larger image
view larger image

Response Curves

Data source: Panorama

view larger image
view larger image
view larger image

Retrieving Data

Loader

Repeatability

Data source: Panorama

view larger image
  Average intra-assay CV
(within day CV)		 Average inter-assay CV
(between day CV)		 Total CV
equation		 n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
b3 (1+) 13.9 13.5 14.8 50.7 13.3 18.6 52.6 19 23.8 15 15 15
y10 (1+) 17.2 14.6 15.4 49.6 14.5 22.8 52.5 20.6 27.5 15 15 15
y11 (1+) 13.7 11.6 14.4 46.1 12.1 17 48.1 16.8 22.3 15 15 15
y7 (1+) 16.7 9.2 17.4 43 11 22 46.1 14.3 28 15 15 15
y9 (1+) 16.4 11.1 13.2 47.7 12.8 17.2 50.4 16.9 21.7 15 15 15
sum 13 11 14.7 46.6 11.7 18 48.4 16.1 23.2 15 15 15

Additional Resources and Comments

Resources
Download SOPs
View Peptide in Panorama
View Protein in Panorama
Comments
