Hsp90aa1

Previous Assay Next Assay
Available Assays

Overview Data source: UniProt

Official Gene Symbol Other Aliases
Hsp90aa1 Hsp86, Hsp86-1, Hspca
Sequence Length (AA) Molecular Weight (Da)
733 84788
Protein Name
Heat shock protein HSP 90-alpha
Sources
UniProt
PhosphoSitePlus ®
GeneCards 		Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MPEETQTQDQ PMEEEEVETF AFQAEIAQLM SLIINTFYSN KEIFLRELIS
60 70 80 90 100
NSSDALDKIR YESLTDPSKL DSGKELHINL IPSKQDRTLT IVDTGIGMTK
110 120 130 140 150
ADLINNLGTI AKSGTKAFME ALQAGADISM IGQFGVGFYS AYLVAEKVTV
160 170 180 190 200
ITKHNDDEQY AWESSAGGSF TVRTDTGEPM GRGTKVILHL KEDQTEYLEE
210 220 230 240 250
RRIKEIVKKH SQFIGYPITL FVEKERDKEV SDDEAEEKEE KEEEKEKEEK
260 270 280 290 300
ESDDKPEIED VGSDEEEEEK KDGDKKKKKK IKEKYIDQEE LNKTKPIWTR
310 320 330 340 350
NPDDITNEEY GEFYKSLTND WEEHLAVKHF SVEGQLEFRA LLFVPRRAPF
360 370 380 390 400
DLFENRKKKN NIKLYVRRVF IMDNCEELIP EYLNFIRGVV DSEDLPLNIS
410 420 430 440 450
REMLQQSKIL KVIRKNLVKK CLELFTELAE DKENYKKFYE QFSKNIKLGI
460 470 480 490 500
HEDSQNRKKL SELLRYYTSA SGDEMVSLKD YCTRMKENQK HIYFITGETK
510 520 530 540 550
DQVANSAFVE RLRKHGLEVI YMIEPIDEYC VQQLKEFEGK TLVSVTKEGL
560 570 580 590 600
ELPEDEEEKK KQEEKKTKFE NLCKIMKDIL EKKVEKVVVS NRLVTSPCCI
610 620 630 640 650
VTSTYGWTAN MERIMKAQAL RDNSTMGYMA AKKHLEINPD HSIIETLRQK
660 670 680 690 700
AEADKNDKSV KDLVILLYET ALLSSGFSLE DPQTHANRIY RMIKLGLGID
710 720 730 733
EDDPTVDDTS AAVTEEMPPL EGDDDTSRME EVD

Data source: UniProt

Protein Map Collapse protein map

Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt


Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for non-CPTAC-3822 Collapse assay details

Data source: Panorama

Official Gene Symbol
Hsp90aa1
Peptide Sequence
HLEINPDHSIIETLR
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
634
Peptide End
648
CPTAC ID
non-CPTAC-3822
Peptide Molecular Mass
1,785.9373
Species
Mus musculus (Mouse)
Assay Type
Direct MRM
Matrix
Plasma
Submitting Laboratory
UVic-Genome BC Proteomics Centre
Submitting Lab PI
Christoph Borchers

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
Agilent 6490/6495 QQQ
Internal Standard
synthetic peptide
Peptide Standard Purity
>80%
Peptide Standard Label Type
13C and 15N at C-terminus R
LC
1290 LC (Agilent)
Column Packing
Zorbax Eclipse Plus C18, 1.8 µm
Column Dimensions
2.1 x 150 mm
Flow Rate
400 µL/min

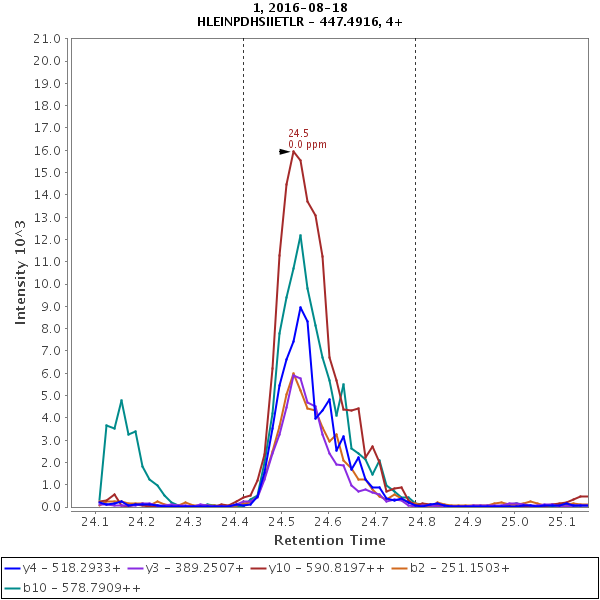

Chromatograms

Data source: Panorama

view larger image
view larger image
view larger image

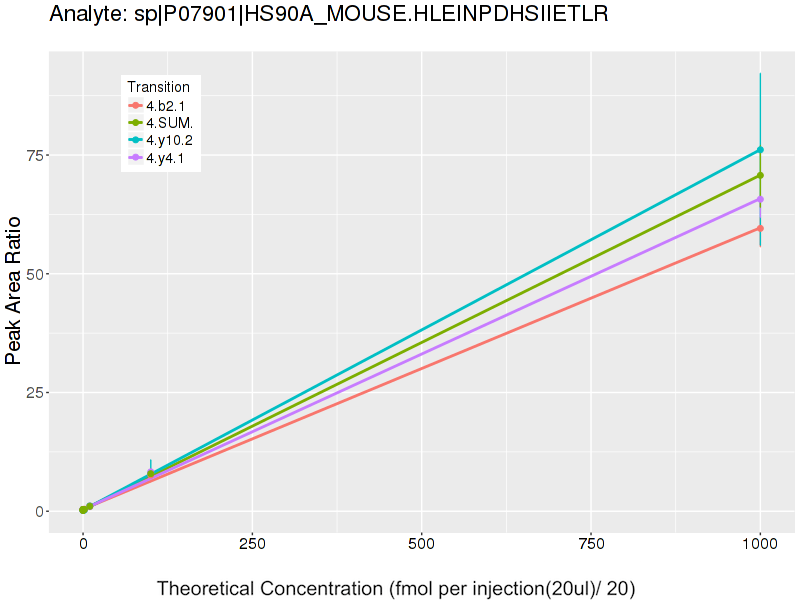

Response Curves

Data source: Panorama

view larger image
view larger image
view larger image

Retrieving Data

Loader

Repeatability

Data source: Panorama

view larger image
  Average intra-assay CV
(within day CV)		 Average inter-assay CV
(between day CV)		 Total CV
equation		 n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
b10 (2+) 6.4 2.6 6.2 7.2 7.6 10.2 9.6 8 11.9 15 15 15
b2 (1+) 4.4 5.7 7.4 4.6 8.5 6.3 6.4 10.2 9.7 15 15 15
y10 (2+) 4.8 6.2 5.5 7.3 10 16.9 8.7 11.8 17.8 15 15 15
y3 (1+) 6.6 4.6 7.3 8.9 8.4 10.3 11.1 9.6 12.6 15 15 15
y4 (1+) 6.8 3.7 6.2 7.2 8.1 7 9.9 8.9 9.4 15 15 15
sum 1.7 1.8 3.2 5.2 7.5 9.3 5.5 7.7 9.8 15 15 15

Additional Resources and Comments

Resources
Download SOPs
View Peptide in Panorama
View Protein in Panorama
Comments
