Please include the following statement when referencing the CPTAC Assay Portal
We would like to acknowledge the National Cancer Institute’s Clinical Proteomic Tumor Analysis Consortium (CPTAC) Assay Portal (assays.cancer.gov) for developing assays and establishing criteria for the assays described in this publication.

Stx7

Previous Assay Next Assay
Available Assays

Overview Data source: UniProt

Official Gene Symbol Other Aliases
Stx7 Syn7
Sequence Length (AA) Molecular Weight (Da)
261 29821
Protein Name
Syntaxin-7
Sources
UniProt
PhosphoSitePlus ®
GeneCards 		Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MSYTPGIGGD SAQLAQRISS NIQKITQCSV EIQRTLNQLG TPQDSPELRQ
60 70 80 90 100
LLQQKQQYTN QLAKETDKYI KEFGSLPTTP SEQRQRKIQK DRLVAEFTTS
110 120 130 140 150
LTNFQKAQRQ AAEREKEFVA RVRASSRVSG GFPEDSSKEK NLVSWESQTQ
160 170 180 190 200
PQVQVQDEEI TEDDLRLIHE RESSIRQLEA DIMDINEIFK DLGMMIHEQG
210 220 230 240 250
DMIDSIEANV ESAEVHVQQA NQQLSRAADY QRKSRKTLCI IIFILVVRIV
260 261
IICLIVWGLK G

Data source: UniProt

Protein Map Collapse protein map

Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt


Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for non-CPTAC-3880 Collapse assay details

Data source: Panorama

Official Gene Symbol
Stx7
Peptide Sequence
TLNQLGTPQDSPELR
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
35
Peptide End
49
CPTAC ID
non-CPTAC-3880
Peptide Molecular Mass
1,667.8479
Species
Mus musculus (Mouse)
Assay Type
Direct MRM
Matrix
Plasma
Submitting Laboratory
UVic-Genome BC Proteomics Centre
Submitting Lab PI
Christoph Borchers

Publication

View Details (opens in a new window)

Molecular phenotyping of laboratory mouse strains using 500 multiple reaction monitoring mass spectrometry plasma assays. Michaud SA, Sinclair NJ, Petrošová H, Palmer AL, Pistawka AJ, Zhang S, Hardie DB, Mohammed Y Eshghi A1, Richard VR, Sickmann A, Borchers CH. Commun Biol. 2018 Jun 27;1:78. doi: 10.1038/s42003-018-0087-6. eCollection 2018.

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
Agilent 6490/6495 QQQ
Internal Standard
synthetic peptide
Peptide Standard Purity
>80%
Peptide Standard Label Type
13C and 15N at C-terminus R
LC
1290 LC (Agilent)
Column Packing
Zorbax Eclipse Plus C18, 1.8 µm
Column Dimensions
2.1 x 150 mm
Flow Rate
400 µL/min

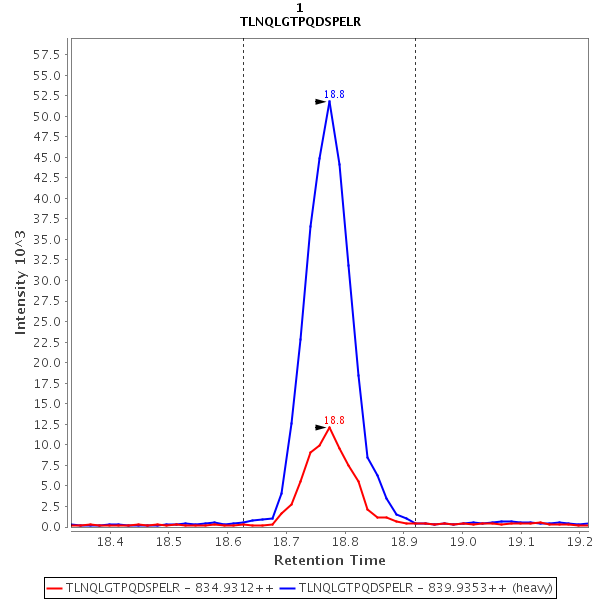

Chromatograms

Data source: Panorama

view larger image
view larger image
view larger image

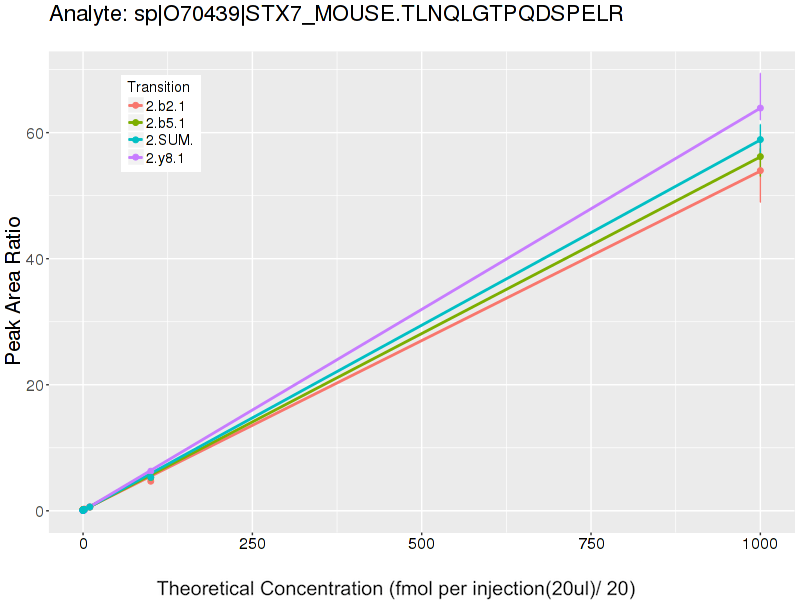

Response Curves

Data source: Panorama

view larger image
view larger image
view larger image

Retrieving Data

Loader

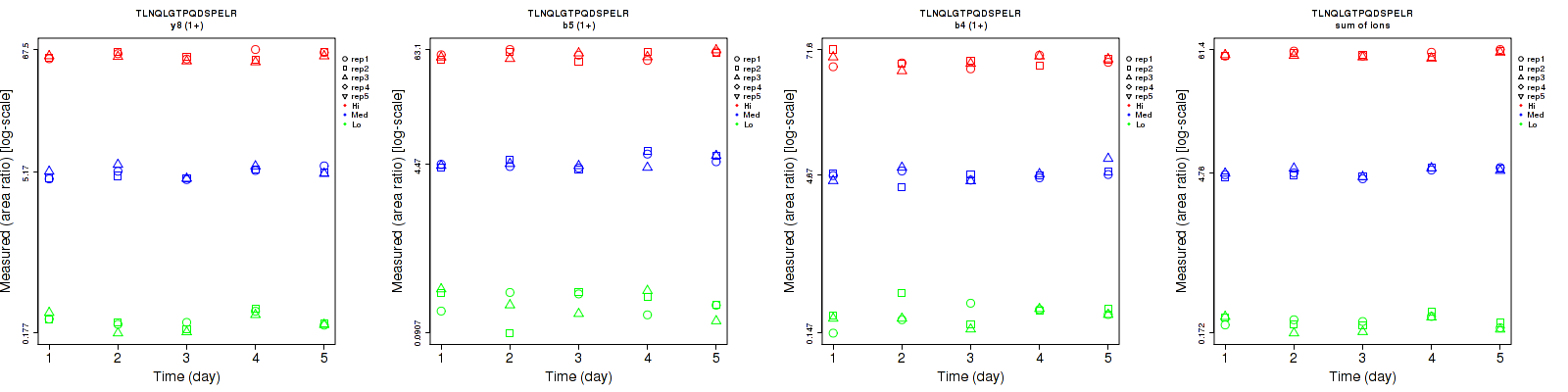

Repeatability

Data source: Panorama

view larger image
  Average intra-assay CV
(within day CV)		 Average inter-assay CV
(between day CV)		 Total CV
equation		 n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y8 (1+) 7.7 7.2 6.5 16.1 10.6 7.5 17.8 12.8 9.9 15 15 15
y4 (1+) 17.9 13.7 7.8 22 14.8 10.9 28.4 20.2 13.4 15 15 15
b2 (1+) 31.2 14.8 8.1 28.5 17.2 10.8 42.3 22.7 13.5 15 15 15
b4 (1+) 19.3 12.4 10.5 21.7 14 12.9 29 18.7 16.6 15 15 15
b5 (1+) 28 8.6 7.9 28.7 14.3 9.3 40.1 16.7 12.2 15 15 15
sum 9.4 3.9 3.6 12.8 8.6 5.3 15.9 9.4 6.4 15 15 15

Additional Resources and Comments

Resources
Download SOPs
View Peptide in Panorama
View Protein in Panorama
Comments
