Overview Data source: UniProt

Official Gene Symbol Other Aliases
ETFB N/A
Sequence Length (AA) Molecular Weight (Da)
255 27844
Protein Name
Electron transfer flavoprotein subunit beta
Sources
UniProt
PhosphoSitePlus ®
GeneCards
Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MAELRVLVAV KRVIDYAVKI RVKPDRTGVV TDGVKHSMNP FCEIAVEEAV
60 70 80 90 100
RLKEKKLVKE VIAVSCGPAQ CQETIRTALA MGADRGIHVE VPPAEAERLG
110 120 130 140 150
PLQVARVLAK LAEKEKVDLV LLGKQAIDDD CNQTGQMTAG FLDWPQGTFA
160 170 180 190 200
SQVTLEGDKL KVEREIDGGL ETLRLKLPAV VTADLRLNEP RYATLPNIMK
210 220 230 240 250
AKKKKIEVIK PGDLGVDLTS KLSVISVEDP PQRTAGVKVE TTEDLVAKLK
255
EIGRI

Data source: UniProt


Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt



Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for CPTAC-504 Collapse assay details

Data source: Panorama

Official Gene Symbol
ETFB
Peptide Sequence
LPAVVTADLR
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
177
Peptide End
186
CPTAC ID
CPTAC-504
Peptide Molecular Mass
1,053.6182
Species
Homo sapiens (Human)
Assay Type
Direct MRM
Matrix
cell line lysate pool
Submitting Laboratory
Seoul National University / Korea Institute of Science and Technology and FHCRC
Submitting Lab PI
Youngsoo Kim

Publication

View Details (opens in a new window)

Demonstrating the feasibility of large-scale development of standardized assays to quantify human proteins. Kennedy JJ, Abbatiello SE, Kim K, Yan P, Whiteaker JR, Lin C, Kim JS, Zhang Y, Wang X, Ivey RG, Zhao L, Min H, Lee Y, Yu MH, Yang EG, Lee C, Wang P, Rodriguez H, Kim Y, Carr SA, Paulovich AG. Nat Methods. 2014 Feb;11(2):149-55. doi: 10.1038/nmeth.2763. Epub 2013 Dec 8. PMID: 24317253


Response curves acquired at Seoul National University / Korea Institute of Science and Technology. Repeatability data acquired at Fred Hutchinson Cancer Research Center.


Response curves acquired at Seoul National University / Korea Institute of Science and Technology. Repeatability data acquired at Fred Hutchinson Cancer Research Center.


Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
5500 QTRAP (ABSCIEX)
Internal Standard
peptide
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C,15N
LC
nanoLC-Ultra 2D, cHiPLC-nanoflex (Eksigent)
Column Packing
ChromXP C18-CL, 3 um, 120A
Column Dimensions
150 x 0.075 mm
Flow Rate
500 nL / min

Chromatograms

Data source: Panorama


Response Curves

Data source: Panorama

Retrieving Data

Loader

Repeatability

Data source: Panorama

  Average intra-assay CV
(within day CV)
Average inter-assay CV
(between day CV)
Total CV
equation
n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y8 (1+) 13.1 10.1 10.6 15.6 18.7 11.8 20.4 21.3 15.9 15 25 15
y6 (1+) 18.5 7.6 11 15.9 12.1 12.7 24.4 14.3 16.8 15 25 15
y5 (1+) 17.2 11 11.9 15.1 16.4 20.6 22.9 19.7 23.8 15 25 15
sum 11.8 5.8 9.2 10 13.2 13.4 15.5 14.4 16.3 15 25 15

Additional Resources and Comments


Assay Details for CPTAC-505 Collapse assay details

Data source: Panorama

Official Gene Symbol
ETFB
Peptide Sequence
LSVISVEDPPQR
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
222
Peptide End
233
CPTAC ID
CPTAC-505
Peptide Molecular Mass
1,338.7143
Species
Homo sapiens (Human)
Assay Type
Direct MRM
Matrix
cell line lysate pool
Submitting Laboratory
Seoul National University / Korea Institute of Science and Technology and FHCRC
Submitting Lab PI
Youngsoo Kim

Publication

View Details (opens in a new window)

Demonstrating the feasibility of large-scale development of standardized assays to quantify human proteins. Kennedy JJ, Abbatiello SE, Kim K, Yan P, Whiteaker JR, Lin C, Kim JS, Zhang Y, Wang X, Ivey RG, Zhao L, Min H, Lee Y, Yu MH, Yang EG, Lee C, Wang P, Rodriguez H, Kim Y, Carr SA, Paulovich AG. Nat Methods. 2014 Feb;11(2):149-55. doi: 10.1038/nmeth.2763. Epub 2013 Dec 8. PMID: 24317253


Response curves acquired at Seoul National University / Korea Institute of Science and Technology. Repeatability data acquired at Fred Hutchinson Cancer Research Center.


Response curves acquired at Seoul National University / Korea Institute of Science and Technology. Repeatability data acquired at Fred Hutchinson Cancer Research Center.


Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
5500 QTRAP (ABSCIEX)
Internal Standard
peptide
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C,15N
LC
nanoLC-Ultra 2D, cHiPLC-nanoflex (Eksigent)
Column Packing
ChromXP C18-CL, 3 um, 120A
Column Dimensions
150 x 0.075 mm
Flow Rate
500 nL / min

Chromatograms

Data source: Panorama

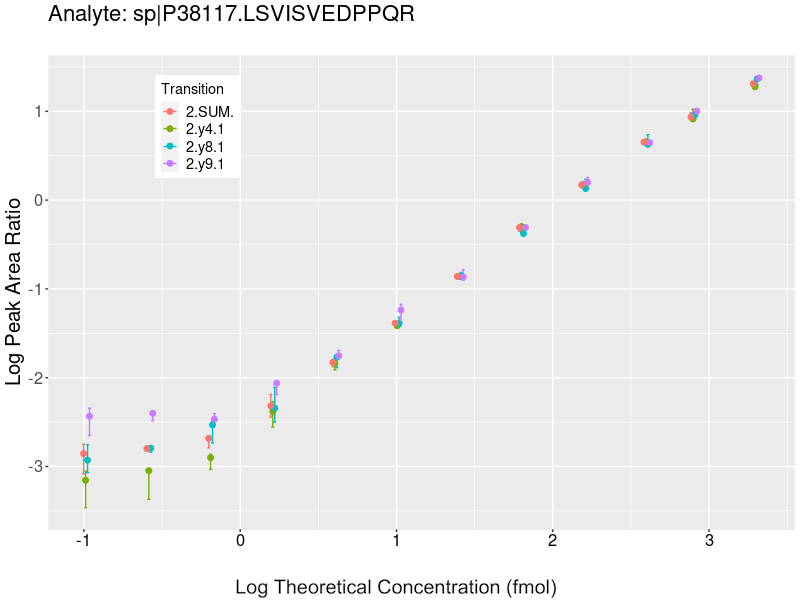

Response Curves

Data source: Panorama

Retrieving Data

Loader

Repeatability

Data source: Panorama

  Average intra-assay CV
(within day CV)
Average inter-assay CV
(between day CV)
Total CV
equation
n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y9 (1+) 13.1 6.4 4.6 11.7 6.4 3.9 17.6 9.1 6 15 25 15
y8 (1+) 7.7 6.1 3.6 9.2 6.3 3.9 12 8.8 5.3 15 25 15
y6 (1+) 7.9 5.9 4.5 12.6 5.9 7 14.9 8.3 8.3 15 25 15
sum 3.7 5.2 2.7 6.3 5.5 3.8 7.3 7.6 4.7 15 25 15

Additional Resources and Comments


Assay Details for non-CPTAC-3801 Collapse assay details

Data source: Panorama

Official Gene Symbol
Etfb
Peptide Sequence
AGDLGVDLTSK
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
211
Peptide End
221
CPTAC ID
non-CPTAC-3801
Peptide Molecular Mass
1,074.5557
Species
Mus musculus (Mouse)
Assay Type
Direct MRM
Matrix
Plasma
Submitting Laboratory
UVic-Genome BC Proteomics Centre
Submitting Lab PI
Christoph Borchers

Publication

View Details (opens in a new window)

Molecular phenotyping of laboratory mouse strains using 500 multiple reaction monitoring mass spectrometry plasma assays. Michaud SA, Sinclair NJ, Petrošová H, Palmer AL, Pistawka AJ, Zhang S, Hardie DB, Mohammed Y Eshghi A1, Richard VR, Sickmann A, Borchers CH. Commun Biol. 2018 Jun 27;1:78. doi: 10.1038/s42003-018-0087-6. eCollection 2018.


Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
Agilent 6490/6495 QQQ
Internal Standard
synthetic peptide
Peptide Standard Purity
>80%
Peptide Standard Label Type
13C and 15N at C-terminus K
LC
1290 LC (Agilent)
Column Packing
Zorbax Eclipse Plus C18, 1.8 µm
Column Dimensions
2.1 x 150 mm
Flow Rate
400 µL/min

Chromatograms

Data source: Panorama


Response Curves

Data source: Panorama

Retrieving Data

Loader

Repeatability

Data source: Panorama

  Average intra-assay CV
(within day CV)
Average inter-assay CV
(between day CV)
Total CV
equation
n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y7 (1+) 13.7 4.4 4.4 9.7 8.2 5.4 16.8 9.3 7 15 15 15
y5 (1+) 17.6 7.6 4.3 19.3 8.9 6.7 26.1 11.7 8 15 15 15
y3 (1+) 22.2 7.4 6.3 31.9 17.2 6.8 38.9 18.7 9.3 15 15 15
b3 (1+) 10.6 3.7 3.4 15.5 8.4 5.1 18.8 9.2 6.1 15 15 15
b4 (1+) 24.1 7.5 4.1 25.9 10.7 6.3 35.4 13.1 7.5 15 15 15
sum 4.6 1.9 1.8 11.1 7.7 4.5 12 7.9 4.8 15 15 15

Additional Resources and Comments
