Please include the following statement when referencing the CPTAC Assay Portal
We would like to acknowledge the National Cancer Institute’s Clinical Proteomic Tumor Analysis Consortium (CPTAC) Assay Portal (assays.cancer.gov) for developing assays and establishing criteria for the assays described in this publication.

CSF2RA

Previous Assay Next Assay
Available Assays

Overview Data source: UniProt

Official Gene Symbol Other Aliases
CSF2RA CSF2R, CSF2RY
Sequence Length (AA) Molecular Weight (Da)
400 46207
Protein Name
Granulocyte-macrophage colony-stimulating factor receptor subunit alpha
Sources
UniProt
PhosphoSitePlus ®
GeneCards 		Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MLLLVTSLLL CELPHPAFLL IPEKSDLRTV APASSLNVRF DSRTMNLSWD
60 70 80 90 100
CQENTTFSKC FLTDKKNRVV EPRLSNNECS CTFREICLHE GVTFEVHVNT
110 120 130 140 150
SQRGFQQKLL YPNSGREGTA AQNFSCFIYN ADLMNCTWAR GPTAPRDVQY
160 170 180 190 200
FLYIRNSKRR REIRCPYYIQ DSGTHVGCHL DNLSGLTSRN YFLVNGTSRE
210 220 230 240 250
IGIQFFDSLL DTKKIERFNP PSNVTVRCNT THCLVRWKQP RTYQKLSYLD
260 270 280 290 300
FQYQLDVHRK NTQPGTENLL INVSGDLENR YNFPSSEPRA KHSVKIRAAD
310 320 330 340 350
VRILNWSSWS EAIEFGSDDG NLGSVYIYVL LIVGTLVCGI VLGFLFKRFL
360 370 380 390 400
RIQRLFPPVP QIKDKLNDNH EVEDEIIWEE FTPEEGKGYR EEVLTVKEIT

Data source: UniProt

Protein Map Collapse protein map

Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt


Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for CPTAC-6044 Collapse assay details

Data source: Panorama

Official Gene Symbol
CSF2RA
Peptide Sequence
NTQPGTENLLINVSGDLENR
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
261
Peptide End
280
CPTAC ID
CPTAC-6044
Peptide Molecular Mass
2,183.0818
Species
Human
Assay Type
Enrichment MRM
Enrichment Method
peptide immunoaffinity
Matrix
FFPE lung tumor tissue lysate pool
Submitting Laboratory
Fred Hutchinson Cancer Research Center
Submitting Lab PI
Amanda Paulovich

Publication

View Details (opens in a new window)

Whiteaker JR, Zhao L, Schoenherr RM, Huang D, Lundeen RA, Voytovich U, Kennedy JJ, Ivey RG, Lin C, Murillo OD, Lorentzen TD, Colantonio S, Caceres TW, Roberts RR, Knotts JG, Reading JJ, Perry CD, Richardson CW, Garcia-Buntley SS, Bocik W, Hewitt SM, Chowdhury S, Vandermeer J, Smith SD, Gopal AK, Ramchurren N, Fling SP, Wang P, Paulovich AG. A multiplexed assay for quantifying immunomodulatory proteins supports correlative studies in immunotherapy clinical trials. Front Oncol. 2023 May 2;13:1168710. doi: 10.3389/fonc.2023.1168710. PMID: 37205196; PMCID: PMC10185886.

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
QTRAP 5500
Internal Standard
peptide
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C and 15N at C-terminus R
LC
Eksigent nanoLC 425
Column Packing
3 µm ChromXP C18EP, 120 Å
Column Dimensions
150 x 0.075 mm
Flow Rate
0.3 µL/min

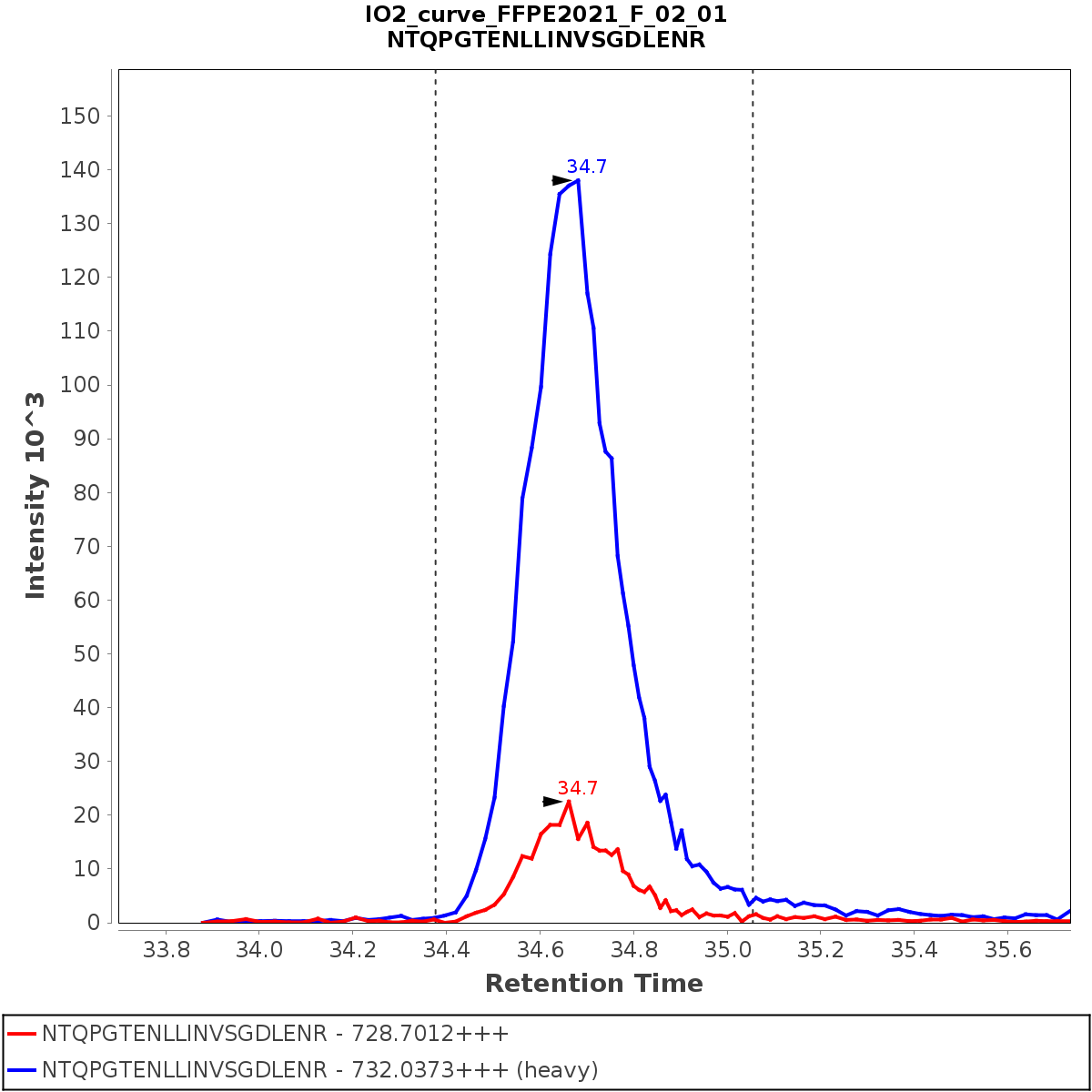

Chromatograms

Data source: Panorama

view larger image
view larger image
view larger image

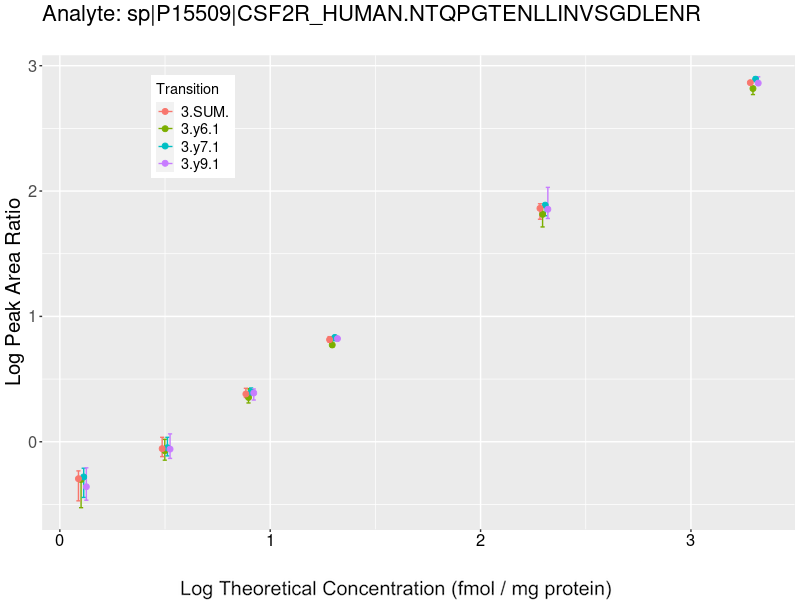

Response Curves

Data source: Panorama

view larger image
view larger image
view larger image

Retrieving Data

Loader

Repeatability

Data source: Panorama

view larger image
  Average intra-assay CV
(within day CV)		 Average inter-assay CV
(between day CV)		 Total CV
equation		 n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y6 (1+) 38.1 36.5 22.7 48.6 43.2 23.2 61.8 56.6 32.5 15 15 15
y7 (1+) 30.2 16.3 14.8 27.7 19.8 17.7 41 25.6 23.1 15 15 15
y9 (1+) 41.5 39 21.6 36.3 47.6 23.9 55.1 61.5 32.2 15 15 15
sum 33 15.5 13.9 29.1 22.7 13 44 27.5 19 15 15 15

Additional Resources and Comments

Resources
Download SOPs
View Peptide in Panorama
View Protein in Panorama
Comments
