Please include the following statement when referencing the CPTAC Assay Portal
We would like to acknowledge the National Cancer Institute’s Clinical Proteomic Tumor Analysis Consortium (CPTAC) Assay Portal (assays.cancer.gov) for developing assays and establishing criteria for the assays described in this publication.

Overview Data source: UniProt

Official Gene Symbol Other Aliases
Enpp1 Npps, Pc1, Pdnp1
Sequence Length (AA) Molecular Weight (Da)
906 103176
Protein Name
Ectonucleotide pyrophosphatase/phosphodiesterase family member 1
Sources
UniProt
PhosphoSitePlus ®
GeneCards
Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MERDGDQAGH GPRHGSAGNG RELESPAAAS LLAPMDLGEE PLEKAERARP
60 70 80 90 100
AKDPNTYKVL SLVLSVCVLT TILGCIFGLK PSCAKEVKSC KGRCFERTFS
110 120 130 140 150
NCRCDAACVS LGNCCLDFQE TCVEPTHIWT CNKFRCGEKR LSRFVCSCAD
160 170 180 190 200
DCKTHNDCCI NYSSVCQDKK SWVEETCESI DTPECPAEFE SPPTLLFSLD
210 220 230 240 250
GFRAEYLHTW GGLLPVISKL KNCGTYTKNM RPMYPTKTFP NHYSIVTGLY
260 270 280 290 300
PESHGIIDNK MYDPKMNASF SLKSKEKFNP LWYKGQPIWV TANHQEVKSG
310 320 330 340 350
TYFWPGSDVE IDGILPDIYK VYNGSVPFEE RILAVLEWLQ LPSHERPHFY
360 370 380 390 400
TLYLEEPDSS GHSHGPVSSE VIKALQKVDR LVGMLMDGLK DLGLDKCLNL
410 420 430 440 450
ILISDHGMEQ GSCKKYVYLN KYLGDVNNVK VVYGPAARLR PTDVPETYYS
460 470 480 490 500
FNYEALAKNL SCREPNQHFR PYLKPFLPKR LHFAKSDRIE PLTFYLDPQW
510 520 530 540 550
QLALNPSERK YCGSGFHGSD NLFSNMQALF IGYGPAFKHG AEVDSFENIE
560 570 580 590 600
VYNLMCDLLG LIPAPNNGSH GSLNHLLKKP IYNPSHPKEE GFLSQCPIKS
610 620 630 640 650
TSNDLGCTCD PWIVPIKDFE KQLNLTTEDV DDIYHMTVPY GRPRILLKQH
660 670 680 690 700
HVCLLQQQQF LTGYSLDLLM PLWASYTFLR NDQFSRDDFS NCLYQDLRIP
710 720 730 740 750
LSPVHKCSYY KSNSKLSYGF LTPPRLNRVS NHIYSEALLT SNIVPMYQSF
760 770 780 790 800
QVIWHYLHDT LLQRYAHERN GINVVSGPVF DFDYDGRYDS LEILKQNSRV
810 820 830 840 850
IRSQEILIPT HFFIVLTSCK QLSETPLECS ALESSAYILP HRPDNIESCT
860 870 880 890 900
HGKRESSWVE ELLTLHRARV TDVELITGLS FYQDRQESVS ELLRLKTHLP
906
IFSQED

Data source: UniProt


Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt



Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for non-CPTAC-4032 Collapse assay details

Data source: Panorama

Official Gene Symbol
Enpp1
Peptide Sequence
AEYLHTWGGLLPVISK
Modification Type
unmodified
Protein - Site of Modification
N/A
Peptide - Site of Modification
N/A
Peptide Start
204
Peptide End
219
CPTAC ID
non-CPTAC-4032
Peptide Molecular Mass
1,782.9669
Species
Mus musculus (Mouse)
Assay Type
Direct MRM
Matrix
Plasma
Submitting Laboratory
UVic-Genome BC Proteomics Centre
Submitting Lab PI
Christoph Borchers

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
Agilent 6490/6495 QQQ
Internal Standard
synthetic peptide
Peptide Standard Purity
>80%
Peptide Standard Label Type
13C and 15N at C-terminus K
LC
1290 LC (Agilent)
Column Packing
Zorbax Eclipse Plus C18, 1.8 µm
Column Dimensions
2.1 x 150 mm
Flow Rate
400 µL/min

Chromatograms

Data source: Panorama

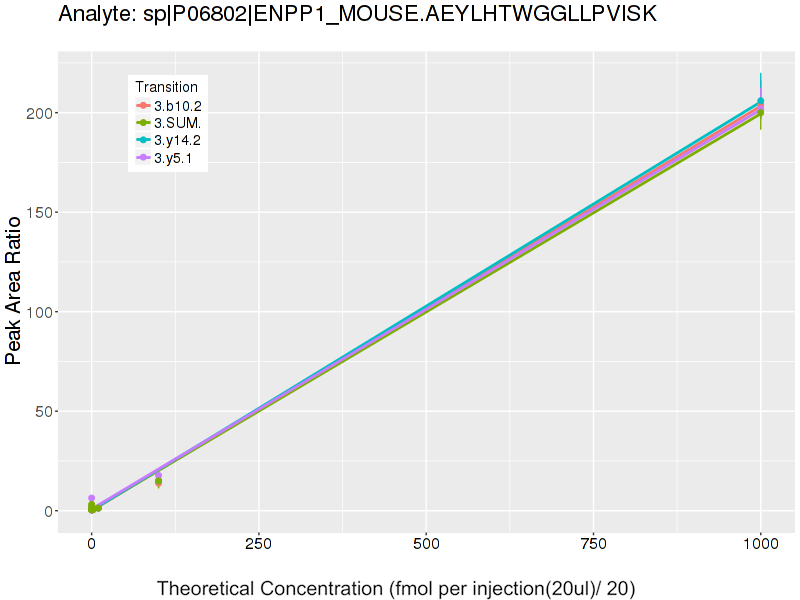

Response Curves

Data source: Panorama

Retrieving Data

Loader

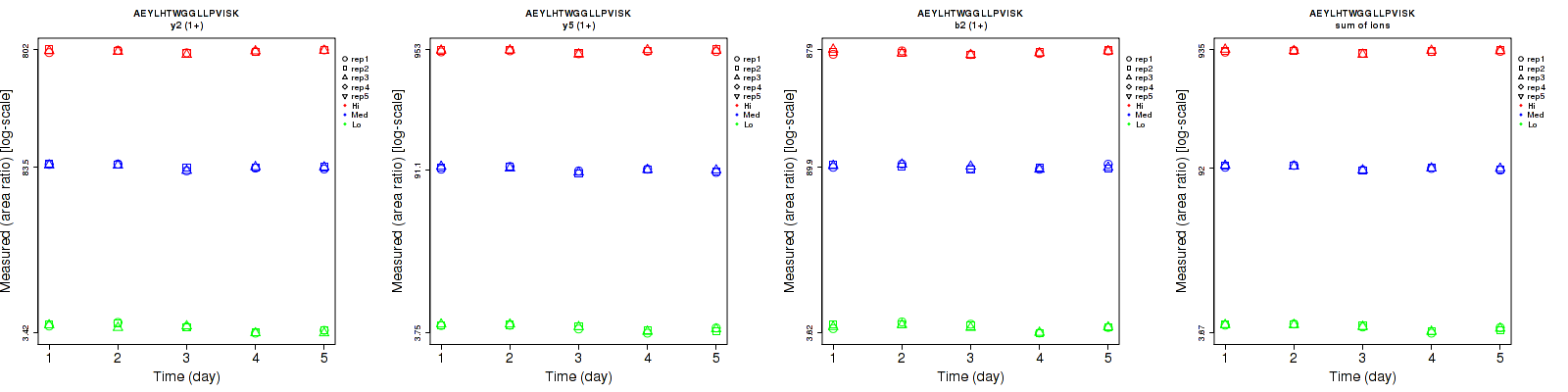

Repeatability

Data source: Panorama

  Average intra-assay CV
(within day CV)
Average inter-assay CV
(between day CV)
Total CV
equation
n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
b10 (2+) 2.7 3.8 3.7 6.8 4.4 4.4 7.3 5.8 5.7 15 15 15
b2 (1+) 2.2 3 1.9 6.7 4.1 3.6 7.1 5.1 4.1 15 15 15
y14 (2+) 3.1 3.8 2.5 7 4.9 3.3 7.7 6.2 4.1 15 15 15
y2 (1+) 2.5 1.8 1.4 7.6 4.4 2.8 8 4.8 3.1 15 15 15
y5 (1+) 2.3 2 1.5 6.1 4.7 2.7 6.5 5.1 3.1 15 15 15
sum 1.4 1.1 1.3 6.2 3.9 2.7 6.4 4.1 3 15 15 15


Additional Resources and Comments
