Overview Data source: UniProt

Official Gene Symbol Other Aliases
NOC2L NIR
Sequence Length (AA) Molecular Weight (Da)
749 84919
Protein Name
Nucleolar complex protein 2 homolog
Sources
UniProt
PhosphoSitePlus ®
GeneCards
Human Protein Atlas

Protein Sequence hover to view complete sequence

10 20 30 40 50
MAAAGSRKRR LAELTVDEFL ASGFDSESES ESENSPQAET REAREAARSP
60 70 80 90 100
DKPGGSPSAS RRKGRASEHK DQLSRLKDRD PEFYKFLQEN DQSLLNFSDS
110 120 130 140 150
DSSEEEEGPF HSLPDVLEEA SEEEDGAEEG EDGDRVPRGL KGKKNSVPVT
160 170 180 190 200
VAMVERWKQA AKQRLTPKLF HEVVQAFRAA VATTRGDQES AEANKFQVTD
210 220 230 240 250
SAAFNALVTF CIRDLIGCLQ KLLFGKVAKD SSRMLQPSSS PLWGKLRVDI
260 270 280 290 300
KAYLGSAIQL VSCLSETTVL AAVLRHISVL VPCFLTFPKQ CRMLLKRMVI
310 320 330 340 350
VWSTGEESLR VLAFLVLSRV CRHKKDTFLG PVLKQMYITY VRNCKFTSPG
360 370 380 390 400
ALPFISFMQW TLTELLALEP GVAYQHAFLY IRQLAIHLRN AMTTRKKETY
410 420 430 440 450
QSVYNWQYVH CLFLWCRVLS TAGPSEALQP LVYPLAQVII GCIKLIPTAR
460 470 480 490 500
FYPLRMHCIR ALTLLSGSSG AFIPVLPFIL EMFQQVDFNR KPGRMSSKPI
510 520 530 540 550
NFSVILKLSN VNLQEKAYRD GLVEQLYDLT LEYLHSQAHC IGFPELVLPV
560 570 580 590 600
VLQLKSFLRE CKVANYCRQV QQLLGKVQEN SAYICSRRQR VSFGVSEQQA
610 620 630 640 650
VEAWEKLTRE EGTPLTLYYS HWRKLRDREI QLEISGKERL EDLNFPEIKR
660 670 680 690 700
RKMADRKDED RKQFKDLFDL NSSEEDDTEG FSERGILRPL STRHGVEDDE
710 720 730 740 749
EDEEEGEEDS SNSEDGDPDA EAGLAPGELQ QLAQGPEDEL EDLQLSEDD

Data source: UniProt


Position of Targeted Peptide Analytes Relative to SNPs, Isoforms, and PTMs

Uniprot Database Entry PhosphoSitePlus ®

Click a point on a node
to view detailed assay information below
All other points link out to UniProt



Phosphorylation Acetylation Ubiquitylation Other

loading

Loader

Assay Details for CPTAC-1744 Collapse assay details

Data source: Panorama

Official Gene Symbol
NOC2L
Peptide Modified Sequence
SPDKPGGS[+80.0]PSASR
Modification Type
Phospho (ST)
Protein - Site of Modification
56
Peptide - Site of Modification
8
Peptide Start
49
Peptide End
61
CPTAC ID
CPTAC-1744
Peptide Molecular Mass
1,321.5664
Species
Homo sapiens (Human)
Assay Type
Enrichment MRM or SRM
Enrichment Method
Titanium Dioxide
Matrix
Ovarian cancer cell lysate
Submitting Laboratory
Pacific Northwest National Laboratory
Submitting Lab PI
Tao Liu

Assay Parameters Collapse assay parameters

Data source: Panorama

Instrument
TSQ Vantage
Internal Standard
peptide
Peptide Standard Purity
>95%
Peptide Standard Label Type
13C and 15N at C-terminus R
LC
Waters nanoACQUITY (Part Number 176016000)
Column Packing
Waters BEH C18, 1.7 um 130 Å (Part Number 186007485)
Column Dimensions
100 um x 100 mm
Flow Rate
0.5 uL/min

Assay Multiplexing Expand assay panel

Pacific Northwest National Laboratory-TiO2SRM

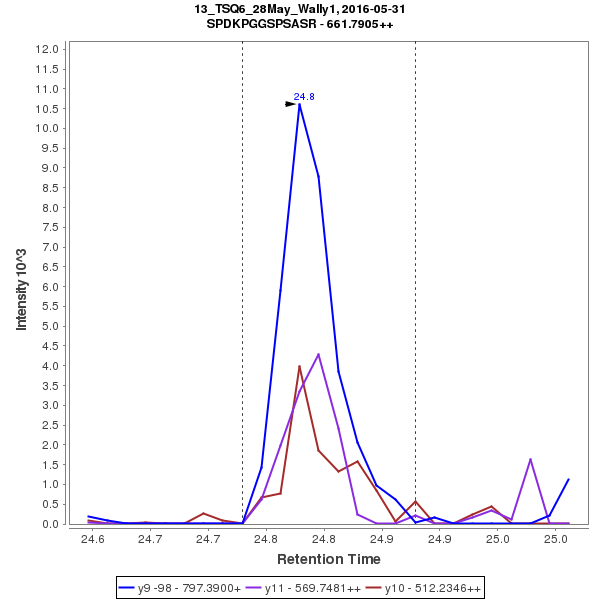

Chromatograms

Data source: Panorama


Response Curves

Data source: Panorama

Retrieving Data

Loader

Repeatability

Data source: Panorama

  Average intra-assay CV
(within day CV)
Average inter-assay CV
(between day CV)
Total CV
equation
n=
Fragment ion / Transition Low Med High Low Med High Low Med High Low Med High
y9-98 (1+) 12.4 6.5 8.1 18.9 8.8 10.5 22.6 10.9 13.3 15 15 15
y11 (2+) 49.1 17.3 13.2 41.1 18.8 16.8 64 25.5 21.4 15 15 15
y10 (2+) 21.2 21 12.7 23.2 21.5 14.5 31.4 30.1 19.3 15 15 15
sum 15.9 5 7.4 19.7 11 11.3 25.3 12.1 13.5 15 15 15

Additional Resources and Comments
